SJ1238HD1 SANJUN 12V 0.4A DC axial fan

Description

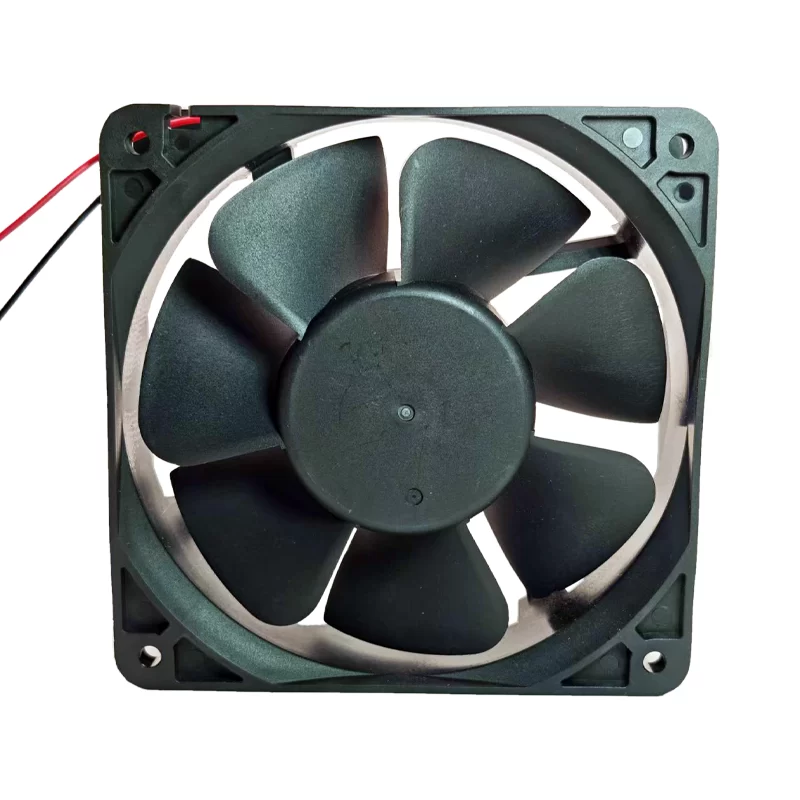

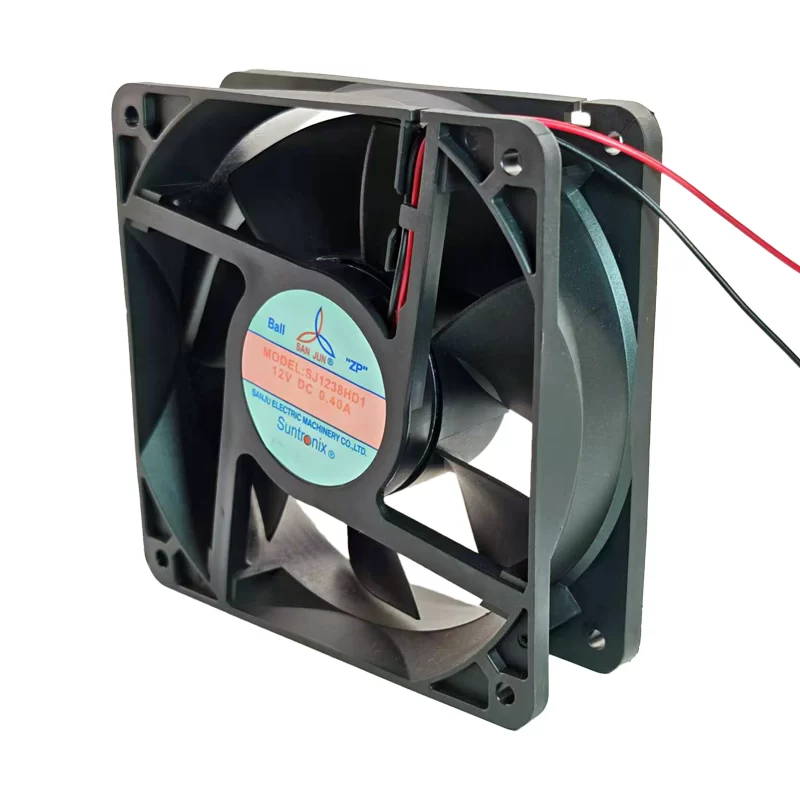

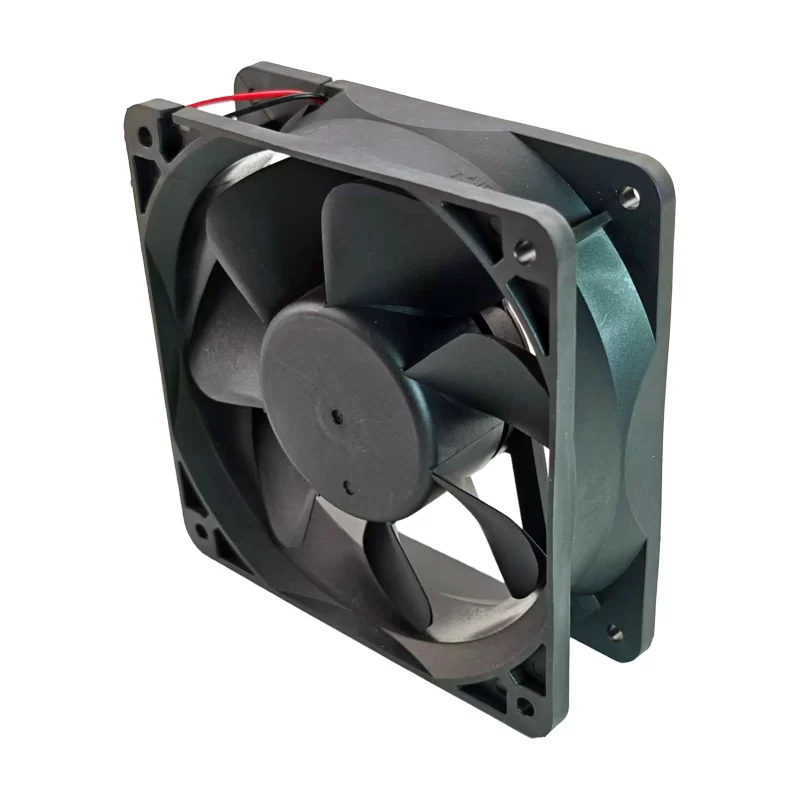

The SUNJUN SJ1238HD1 is a common 12V DC axial cooling fan. Measuring 120mm x 120mm x 38mm, this fan is frequently used for cooling inverters, power supplies, computer cases, and other electronic equipment where reliable air movement is needed. It operates at a rated voltage of 12V DC and draws a current of 0.65A. This results in a power consumption of 7.8W. It achieves a rotational speed of 3000 RPM, with a reported noise level of 42 dBA. The fan features dual ball bearings for enhanced durability and a longer operational lifespan. It commonly comes with 2-wire leads for basic power connection.

Model Number: SJ1238HD1
Manufacturer: SUNJUN
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 12V DC
Rated Current: 0.65A
Rated Power: 7.8W (calculated: 12V * 0.65A)
Speed: 3000 RPM
Noise Level: 42 dBA
Connector: 2-Wire Leads
Bearing Type: Dual Ball Bearing
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Designed for inverter cooling, general purpose.
