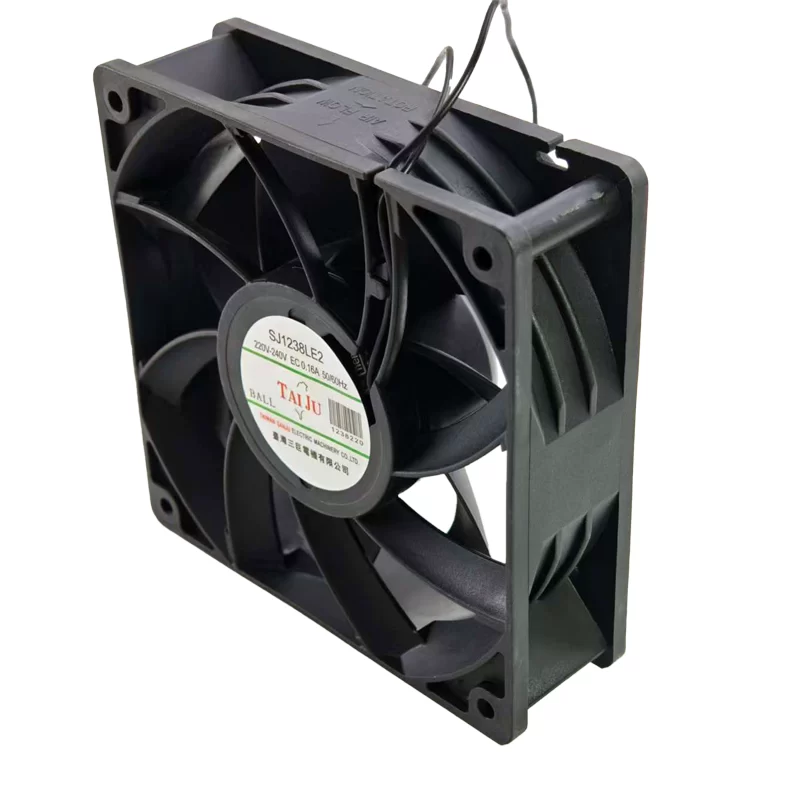

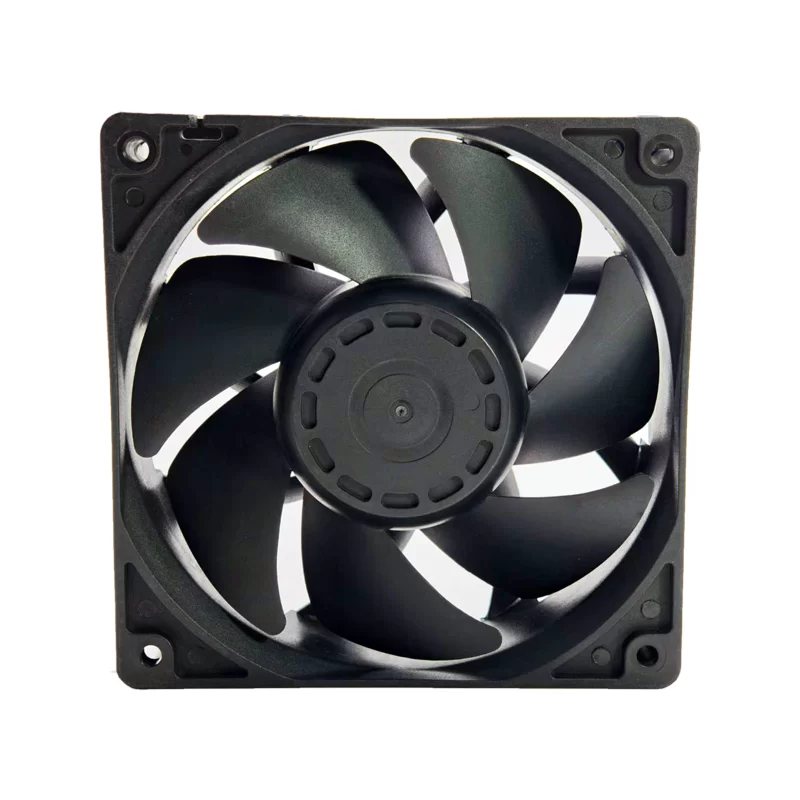

SJ1238LE2 SANJUN 220/240V AC Axial Fan

Description

The SANJUN SJ1238LE2 is a standard 220/240V AC Axial Fan with dimensions of 120x120x38mm, engineered for efficient cooling in various electronic devices and equipment compatible with both 50Hz and 60Hz frequencies. This fan draws a rated current of 0.16A.

It delivers a robust airflow of 200.5m³/h (118CFM) and achieves a static pressure of 87.18Pa (0.35INH2O) at a speed of 2600RPM, with a noise level of 46dB(A).

Coming with standard 2-wire termination, the SJ1238LE2 is suitable for PCs, servers, power supplies, industrial control systems, and general ventilation where versatile AC cooling is required.

SJ1238LE2 Fan Parameters
Model: SJ1238LE2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 220/240 V AC
Frequency: 50/60 Hz
Rated Current: 0.16 A
Speed: 2600 RPM
Airflow: 200.5 m³/h (118 CFM)
Static Pressure: 0.35 IN H2O (87.18 Pa / 8.89 mmH2O)
Noise Level: 46 dB(A)
Weight: 275 g
Termination: 2-wire leads
Application: PCs, servers, power supplies, industrial control systems, and general ventilation.
