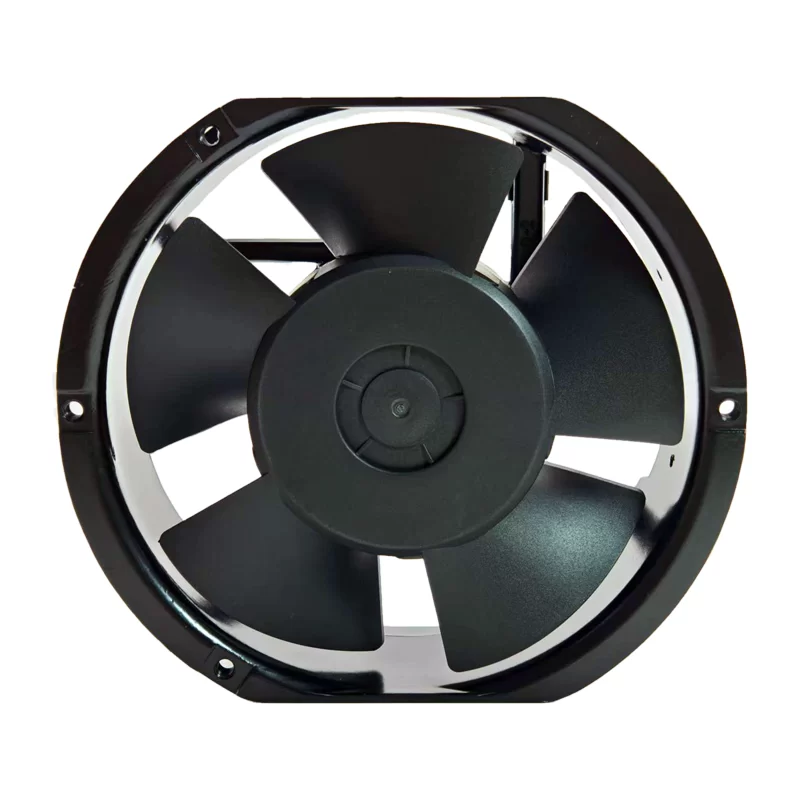

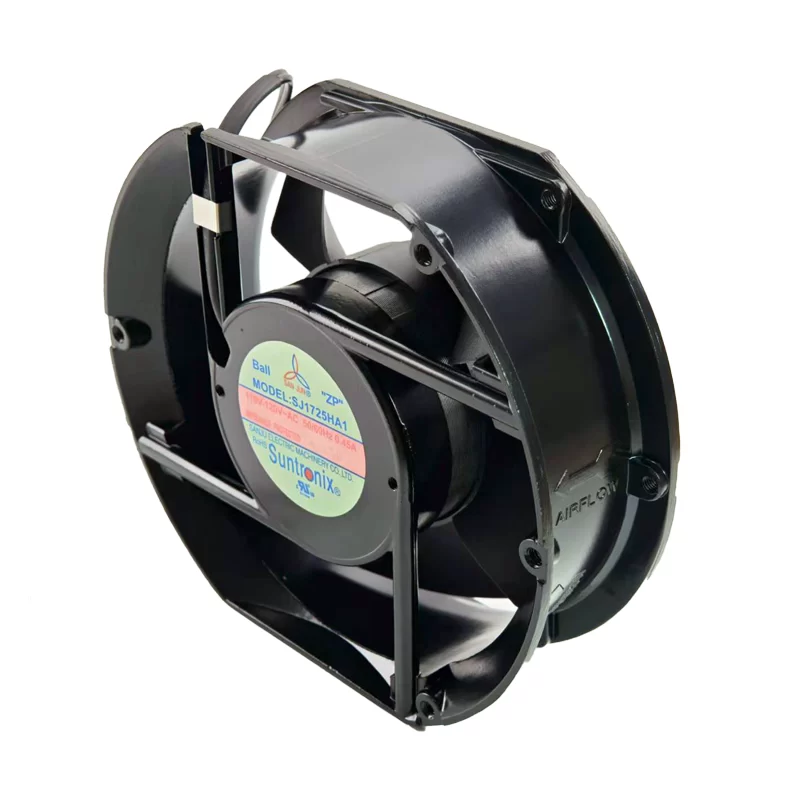

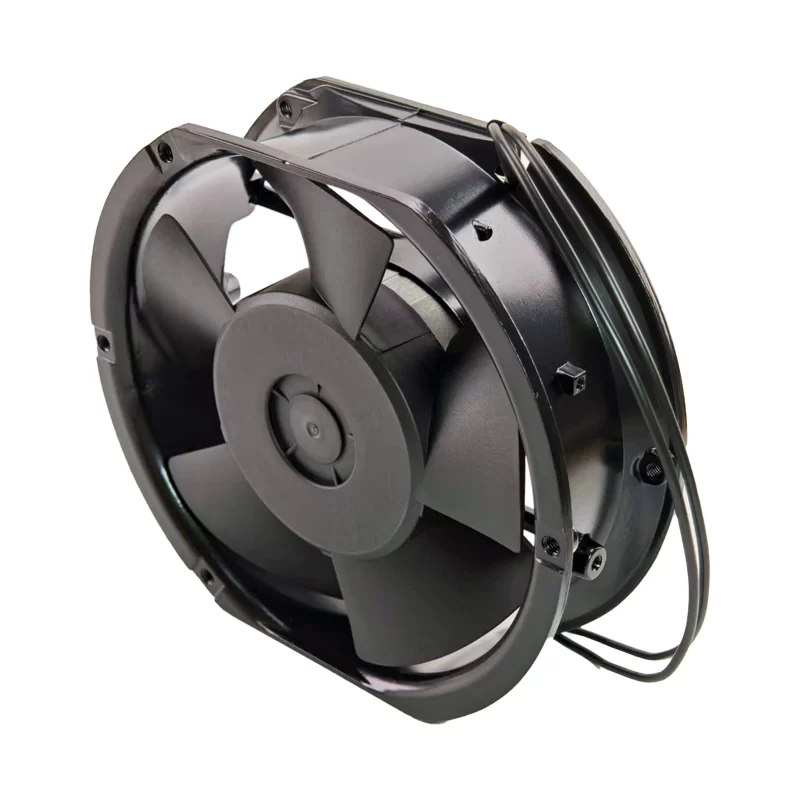

The SANJUN SJ1725HA1 is an AC axial fan measuring 172x150x51mm. It operates on 110/120 VAC or 220 VAC at 50/60 Hz frequencies. For 110/120V operation, it typically draws 0.40 A to 0.45 A of current with a power consumption of 32 W to 35 W. For 220V operation, it draws 0.28 A of current with a power consumption of 35 W. This fan achieves speeds ranging from 2700 RPM (50 Hz) to 3100 RPM (60 Hz), providing an airflow of 190 CFM (5.38 m³/min) to 210 CFM (5.95 m³/min). The noise level ranges from 53 dB(A) to 59 dB(A). It features dual ball bearings for enhanced durability and connects via 2-wire Leads. This fan is commonly used in industrial equipment, control cabinets, and other general cooling applications.
SJ1725HA1 Fan Parameters
Model: SJ1725HA1
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 172x150x51 mm
Rated Voltage: 110/120 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (110/120V): 0.40 A – 0.45 A
Rated Current (220V): 0.28 A
Power Consumption (110/120V): 32 W – 35 W
Power Consumption (220V): 35 W
Speed (50Hz / 60Hz): 2700 RPM / 3100 RPM
Airflow (50Hz / 60Hz): 190 CFM (5.38 m³/min) / 210 CFM (5.95 m³/min)
Noise Level (50Hz / 60Hz): 53 dB(A) / 59 dB(A)
Bearing Type: Dual Ball Bearing
Termination: 2-wire Leads
Weight: 800 g
Material Frame: Aluminum
Material Blade: Plastic
Features: Impedance Protected
Application: Industrial equipment, control cabinets, general cooling.
