Description

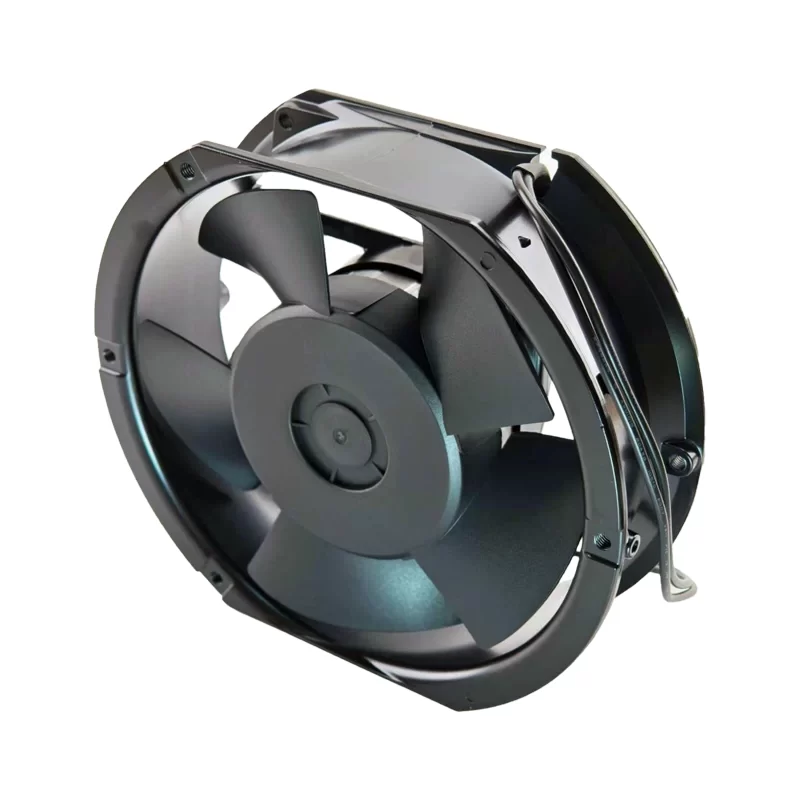

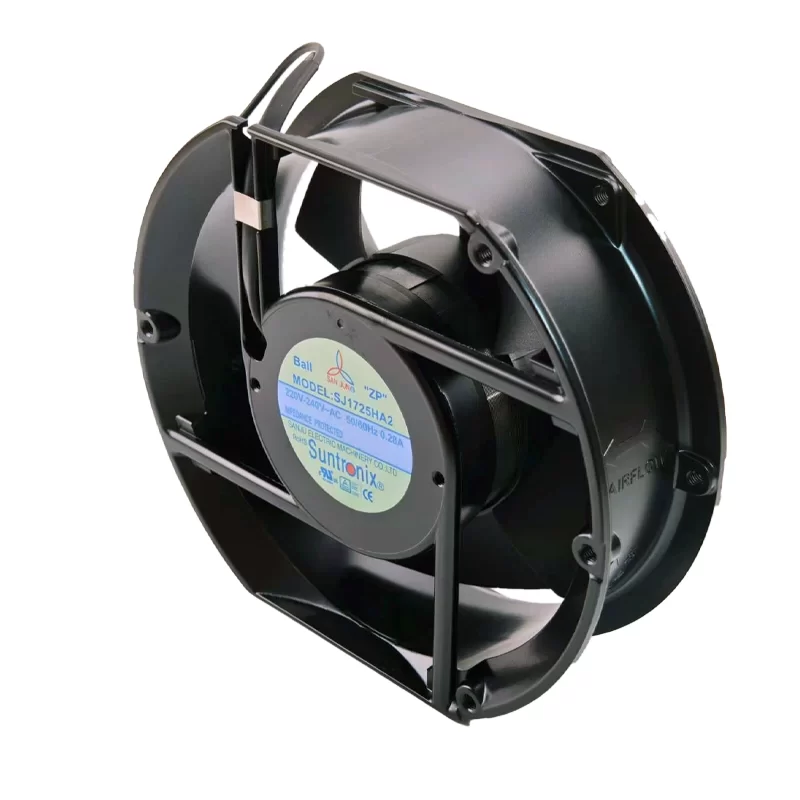

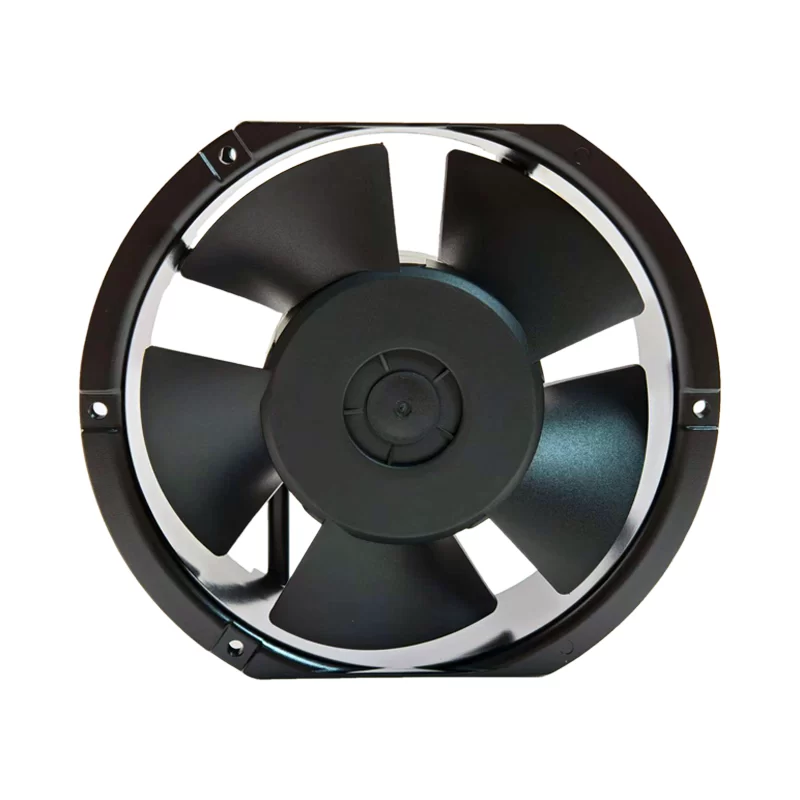

The SUNJUN SJ1725HA2 is an AC axial fan measuring 170x170x51mm. It operates on 220-240 VAC at 50/60 Hz frequencies, drawing 0.28 A of current, with a power consumption of 50 W. This fan typically achieves a speed of 2800 RPM, providing an airflow of 5.1 m³/min (approximately 180 CFM). The noise level is generally around 55 dB(A). It features ball bearings for reliable and long-lasting performance. The frame is commonly made of die-cast aluminum alloy, and it connects via 2-wire Leads. This fan is widely used for cooling in industrial equipment, control cabinets, and various electronic systems.
SJ1725HA2 Fan Parameters
Model: SJ1725HA2
Manufacturer: SUNJUN
Type: AC Axial Fan
Dimensions: 170x170x51 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.28 A
Power Consumption: 50 W
Speed: 2800 RPM
Airflow: 5.1 m³/min (180 CFM)
Noise Level: 55 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Material Frame: Die-cast aluminum alloy
Material Blade: Plastic
Application: Industrial equipment cooling, control cabinets, electronic systems.
