Description

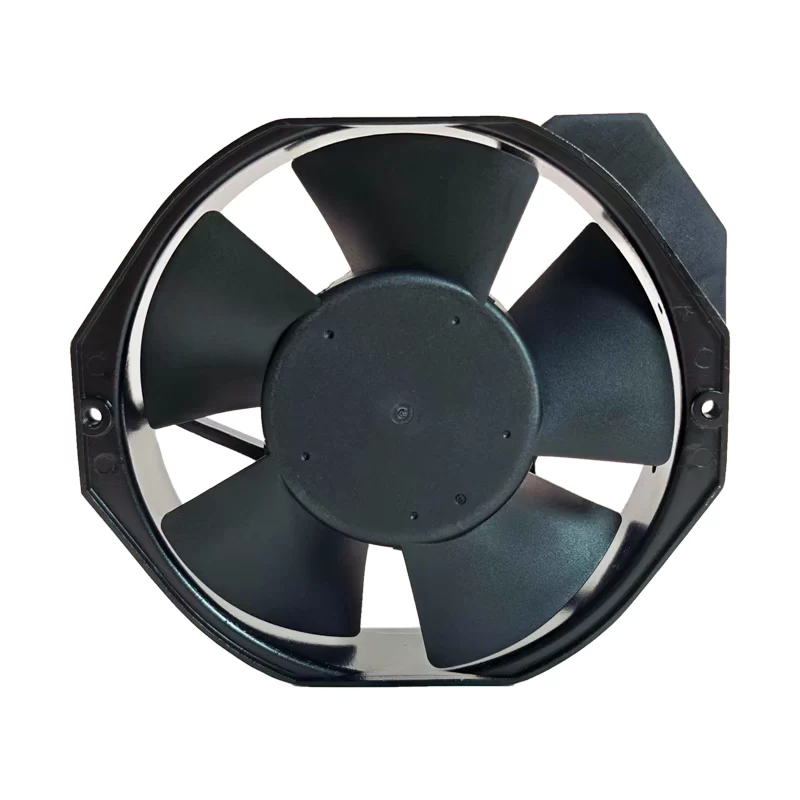

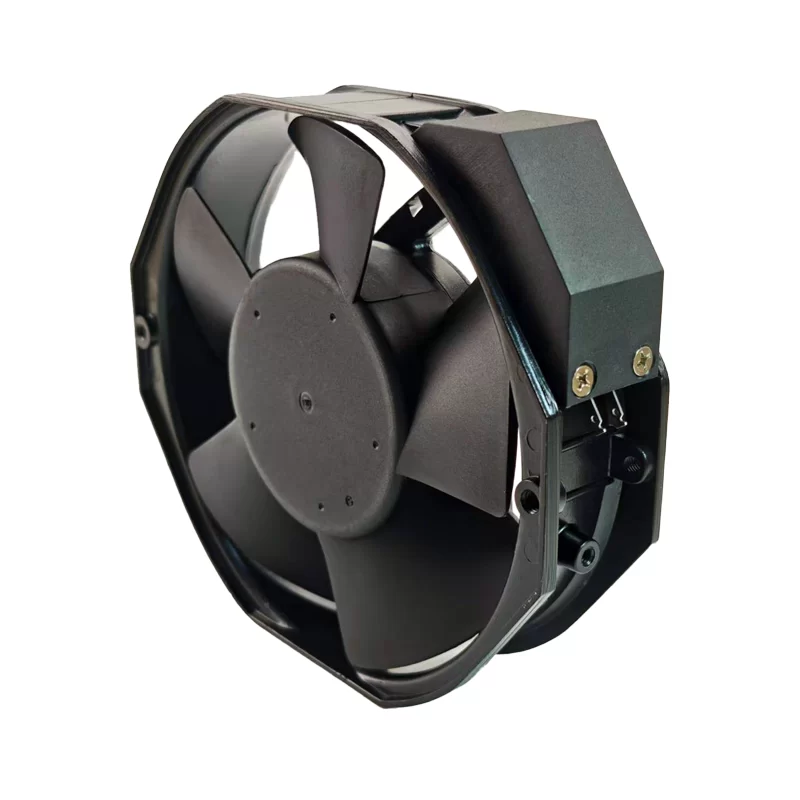

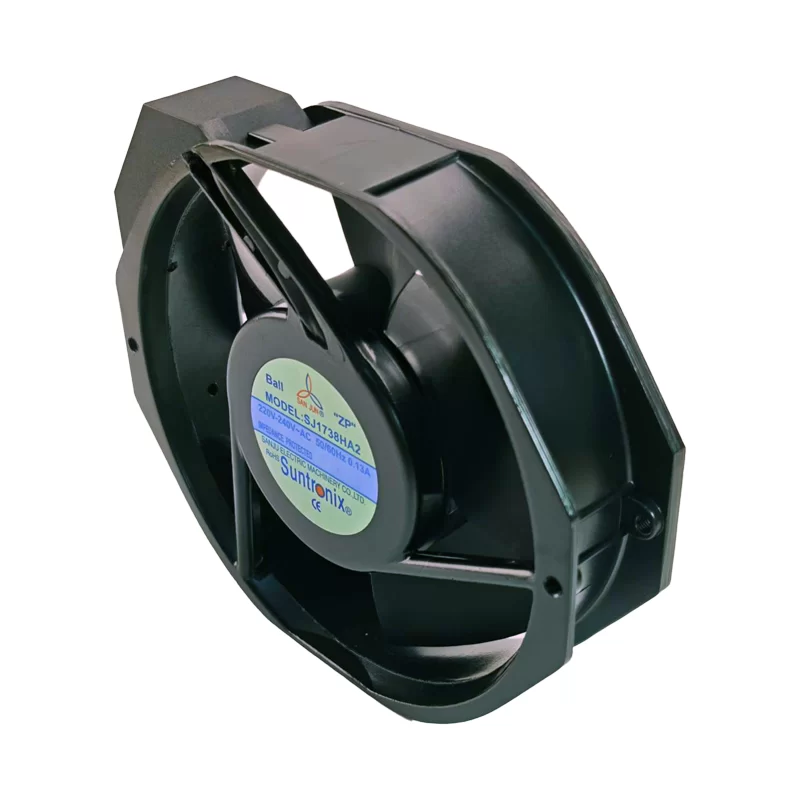

The SANJU SJ1738HA2 is a compact yet powerful AC axial fan, featuring a square frame measuring 172mm x 150mm x 38mm. It is designed for efficient cooling and ventilation in various electronic enclosures and industrial equipment. Operating on 220-240 VAC at both 50 Hz and 60 Hz, this fan provides reliable airflow. At 50 Hz, it draws 0.15A of current and consumes 35W of power, reaching a speed of 2850 RPM, delivering an airflow of 175 CFM (297.3 m³/h), and producing a noise level of 54 dB(A). At 60 Hz, the performance includes a current of 0.12A, power consumption of 28W, a speed of 3400 RPM, an airflow of 220 CFM (373.8 m³/h), and a noise level of 58 dB(A). It commonly features dual ball bearings for extended durability and a long service life, and it uses an aluminum alloy frame and a plastic impeller, connecting via terminals, and weighing 760g.
SJ1738HA2 Fan Parameters
Model: SJ1738HA2
Manufacturer: SANJU
Type: AC Axial Fan
Dimensions: 172mm x 150mm x 38mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.15A / 0.12A
Power Consumption (50Hz / 60Hz): 35 W / 28 W
Speed (50Hz / 60Hz): 2850 RPM / 3400 RPM
Airflow (50Hz / 60Hz): 175 CFM / 220 CFM (297.3 m³/h / 373.8 m³/h)
Static Pressure (50Hz / 60Hz): 0.65 inch H2O / 0.75 inch H2O
Noise Level (50Hz / 60Hz): 54 dB(A) / 58 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Alloy (die-casting)
Impeller Material: Thermoplastic (Plastic)
Termination: Terminals
Operating Temperature: -20°C to +85°C
Life Expectancy: 60,000 hours (at 20°C)
Weight: 760 g
Features: Impedance protected, corrosion-resistant, moisture-proof structure.
Application: Industrial control cabinets, power distribution boxes, electronic enclosures, welding machines, general ventilation.
