Description

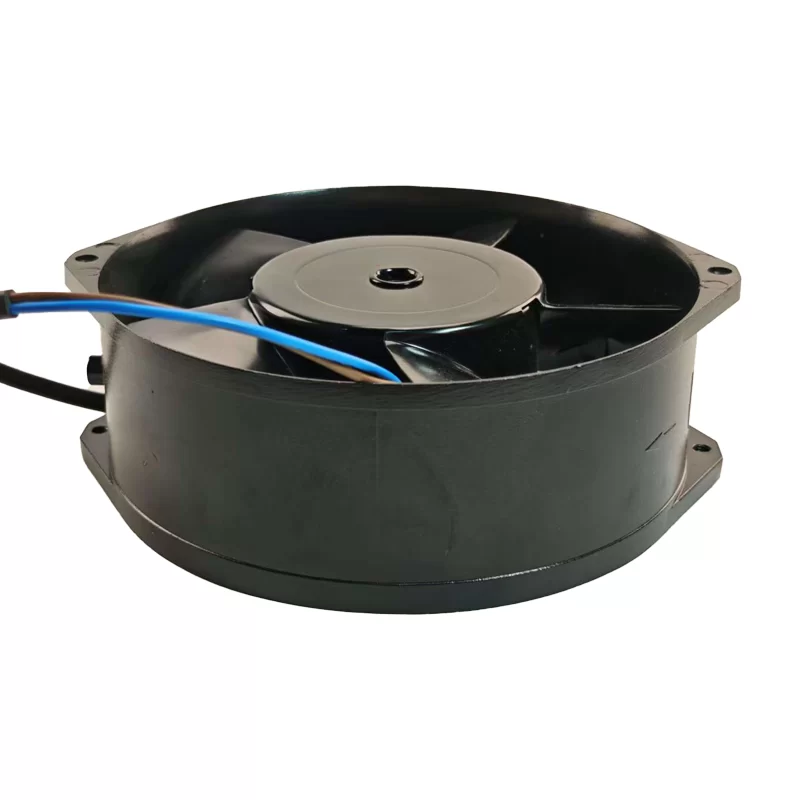

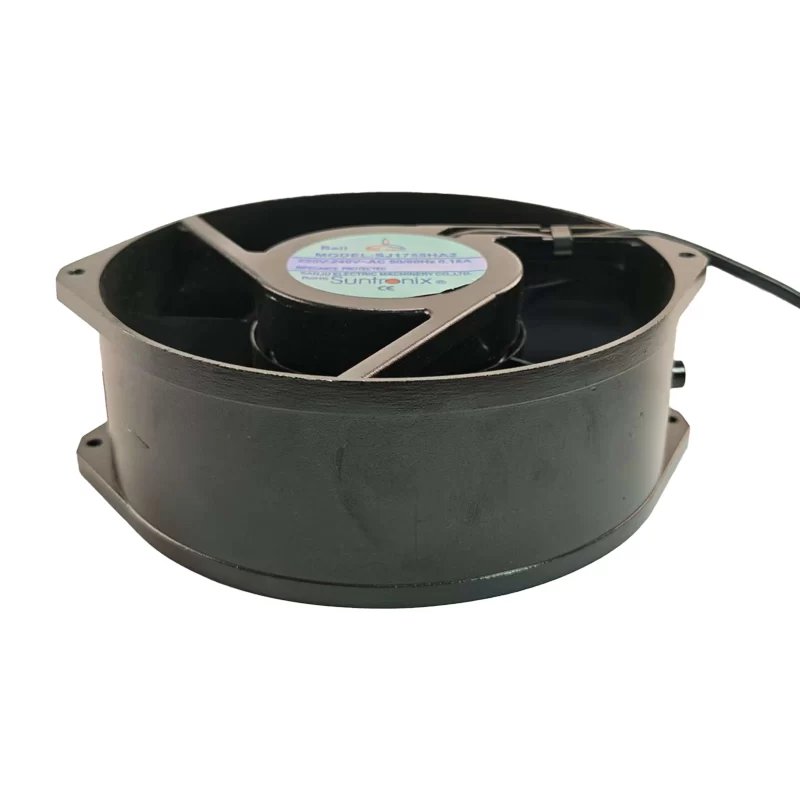

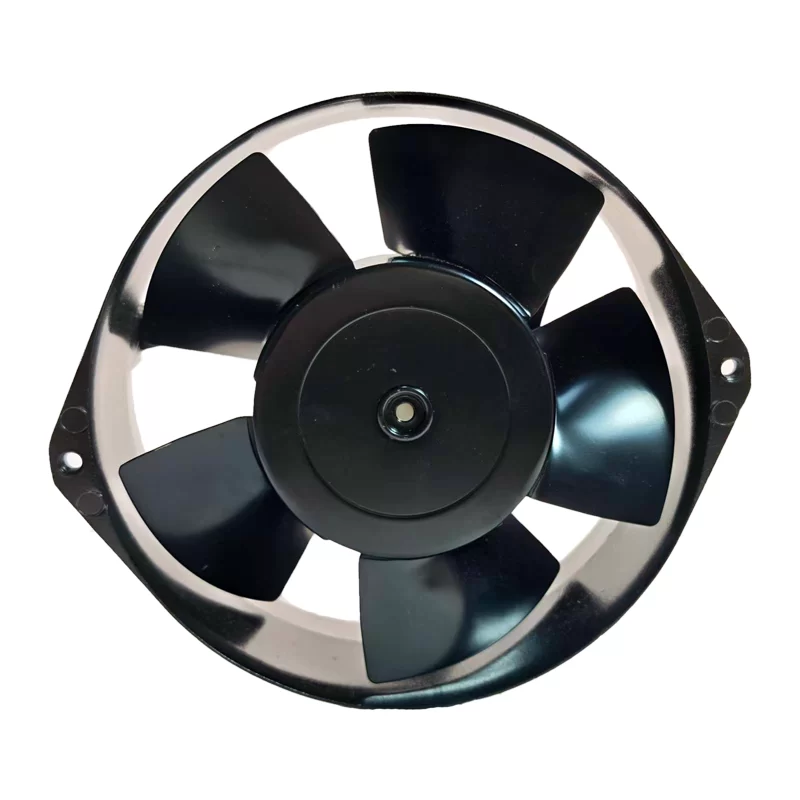

The SANJU SJ1755HA2 is a high-performance AC axial fan with a large square frame measuring 172mm x 150mm x 55mm. It is engineered for robust cooling and ventilation in industrial and commercial applications. Operating on 220-240 VAC at both 50 Hz and 60 Hz, this fan provides substantial airflow. It draws a current of 0.18A. At 50 Hz, it consumes 35W of power, reaching a speed of 2850 RPM, delivering an airflow of 245 CFM (416.3 m³/h), and producing a noise level of 50 dB(A). At 60 Hz, the power consumption is 40W, with a speed of 3350 RPM, an airflow of 280 CFM (475.7 m³/h), and a noise level of 54 dB(A). It features dual ball bearings for enhanced durability and a longer service life, has a durable aluminum alloy frame and a metal impeller, and connects via terminals. This fan is ideal for demanding cooling needs.
SJ1755HA2 Fan Parameters
Model: SJ1755HA2
Manufacturer: SANJU
Type: AC Axial Fan
Dimensions: 172mm x 150mm x 55mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.18A
Power Consumption (50Hz / 60Hz): 35 W / 40 W
Speed (50Hz / 60Hz): 2850 RPM / 3350 RPM
Airflow (50Hz / 60Hz): 245 CFM / 280 CFM (416.3 m³/h / 475.7 m³/h)
Noise Level (50Hz / 60Hz): 50 dB(A) / 54 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Alloy
Impeller Material: Metal
Termination: Terminals
Operating Temperature: -20°C to +85°C
Life Expectancy: 60,000 hours (at 20°C)
Weight: 0.8 kg
Features: Impedance protected.
Application: Industrial machinery, control cabinets, power supplies, HVAC systems, large electronic enclosures, general ventilation.
