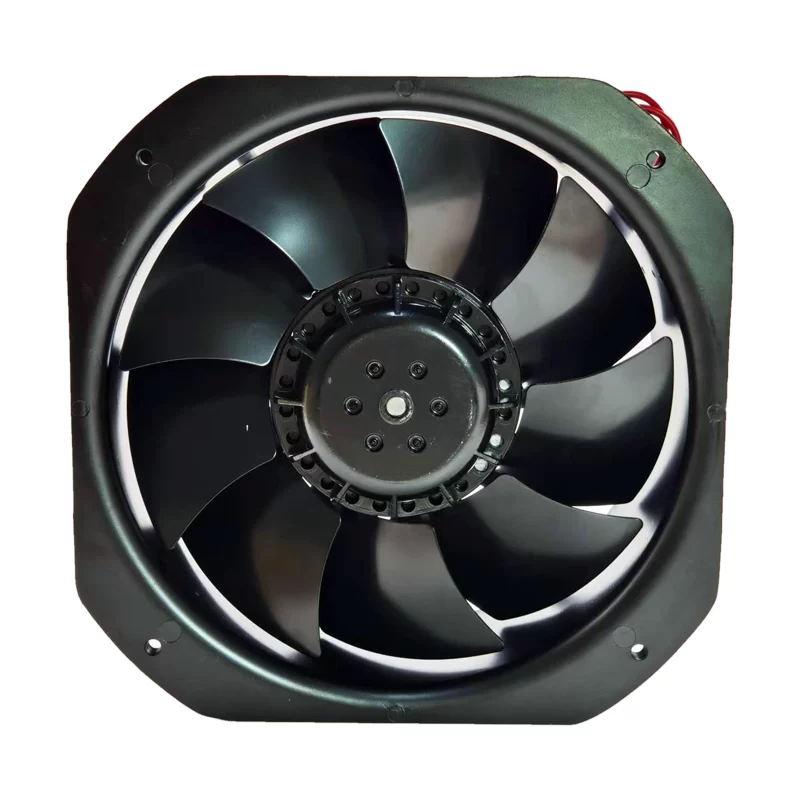

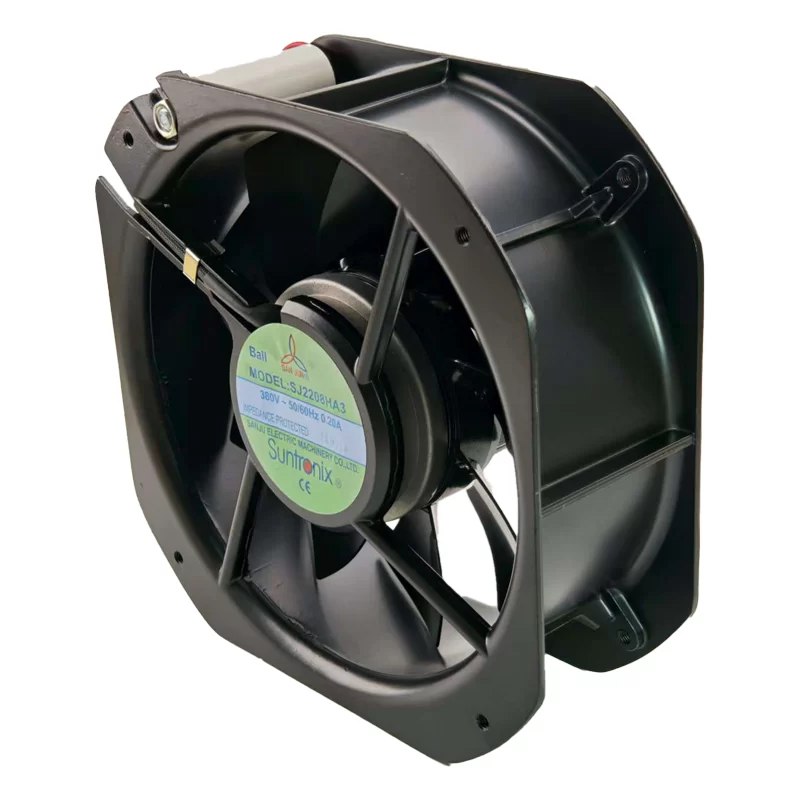

SJ2208HA3 SANJUN 380V AC Axial Fan

Description

The SANJUN SJ2208HA3 is a robust 380V AC Axial Fan with dimensions of 225x225x80mm, engineered for high-performance cooling in industrial and demanding applications, compatible with both 50Hz and 60Hz frequencies. This fan has a rated current of 0.20A and a power consumption of 60W.

When operating at 50Hz, this fan runs at 2550RPM, delivering a substantial airflow of 900.5m³/h (530CFM) with a static pressure of 166.9Pa (0.67INH2O). It maintains a noise level of 59dB(A).

At 60Hz, the fan’s performance is enhanced, reaching 2880RPM and providing 1019.4m³/h (600CFM) airflow with a static pressure of 137.0Pa (0.55INH2O). In this mode, the noise level is 61dB(A).

Built with durable ball bearings, a robust aluminum alloy frame, and a high-quality plastic impeller, the SJ2208HA3 ensures long-term reliability. It is impedance protected and comes with 2-wire termination, making it ideal for large control cabinets, industrial machinery, telecommunication systems, and demanding ventilation needs.

SJ2208HA3 Fan Parameters
Model: SJ2208HA3
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 225 x 225 x 80 mm
Nominal Voltage: 380 V AC
Frequency: 50/60 Hz
Rated Current: 0.20 A
Power Consumption: 60 W
Speed: 2550 RPM (50Hz) / 2880 RPM (60Hz)
Airflow: 900.5 m³/h (530 CFM) (50Hz) / 1019.4 m³/h (600 CFM) (60Hz)
Static Pressure: 0.67 IN H2O (166.9 Pa / 17.0 mmH2O) (50Hz) / 0.55 IN H2O (137.0 Pa / 14.0 mmH2O) (60Hz)
Noise Level: 59 dB(A) (50Hz) / 61 dB(A) (60Hz)
Weight: 2100 g
Bearing Type: Ball Bearing
Frame Material: Aluminum Alloy
Impeller Material: Plastic (PBT)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 75 °C
Life Expectancy: 50000 h at 40°C

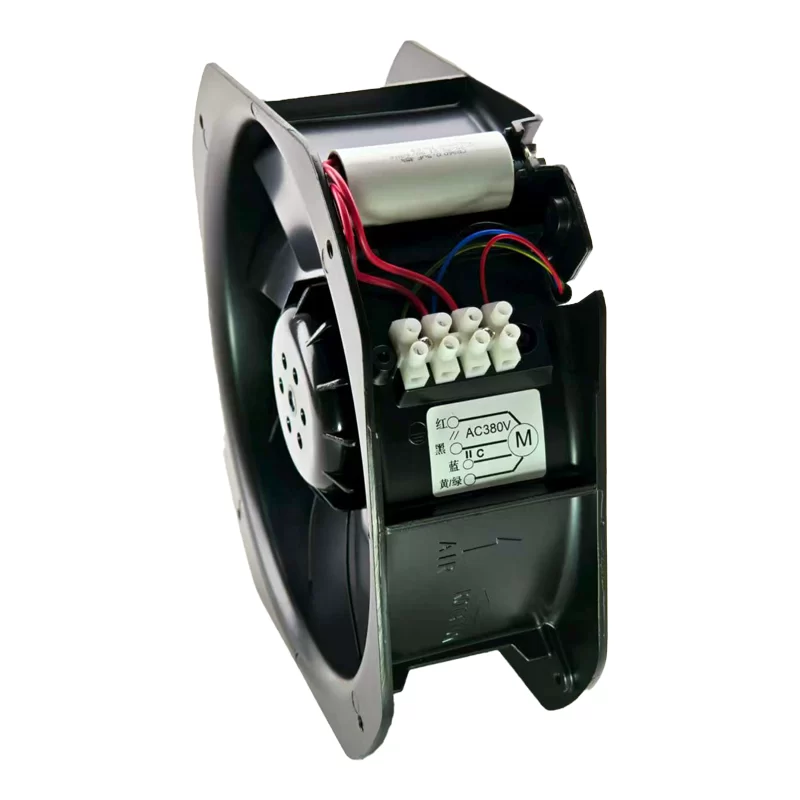

Termination: 2-wire leads
Motor Protection: Impedance Protected
Approval: CE, UL, TUV
Application: Industrial machinery, large control cabinets, telecommunication systems, power electronics, and general industrial ventilation.
