Description

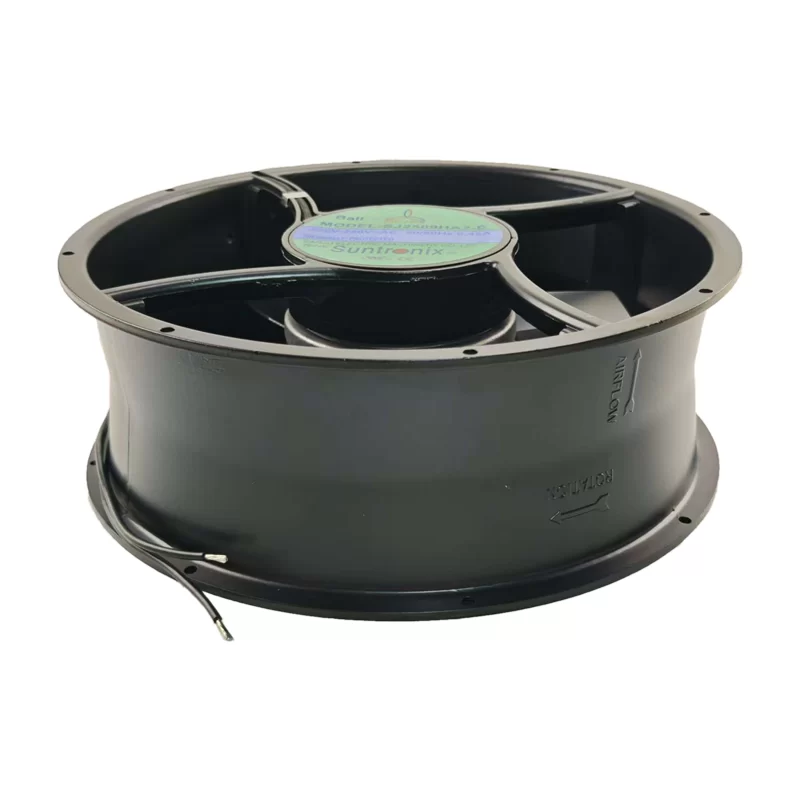

The SANJUN SJ2509HA2-E is a powerful AC axial fan measuring 254x254x89mm. It operates on 220 VAC at 50/60 Hz frequencies, drawing 0.45 A of current, with a power consumption ranging from 100 W to 130 W. This fan typically achieves a speed between 2500 RPM and 2700 RPM. It features ball bearings for enhanced durability and a long service life. The frame is commonly made of die-cast aluminum alloy, and it connects via 2-wire Leads. This fan is often used in heavy-duty industrial applications, large control cabinets, and ventilation systems requiring substantial air movement for heat dissipation.
SJ2509HA2-E Fan Parameters
Model: SJ2509HA2-E
Manufacturer: SANJUN (Taiwan Sanju)
Type: AC Axial Fan
Dimensions: 254x254x89 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.45 A
Power Consumption: 100 W – 130 W
Speed: 2500-2700 RPM
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Material Frame: Die-cast aluminum alloy
Operating Temperature: -20 to 85°C
Expected Life: 60000 Hrs (at 20°C)
Application: Industrial cooling, large control cabinets, ventilation systems.
