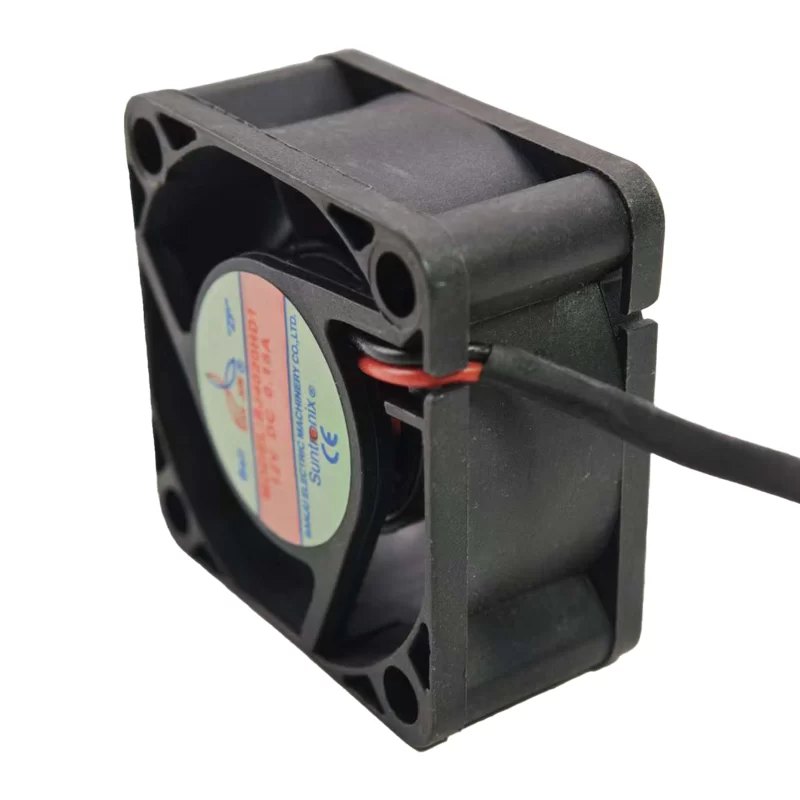

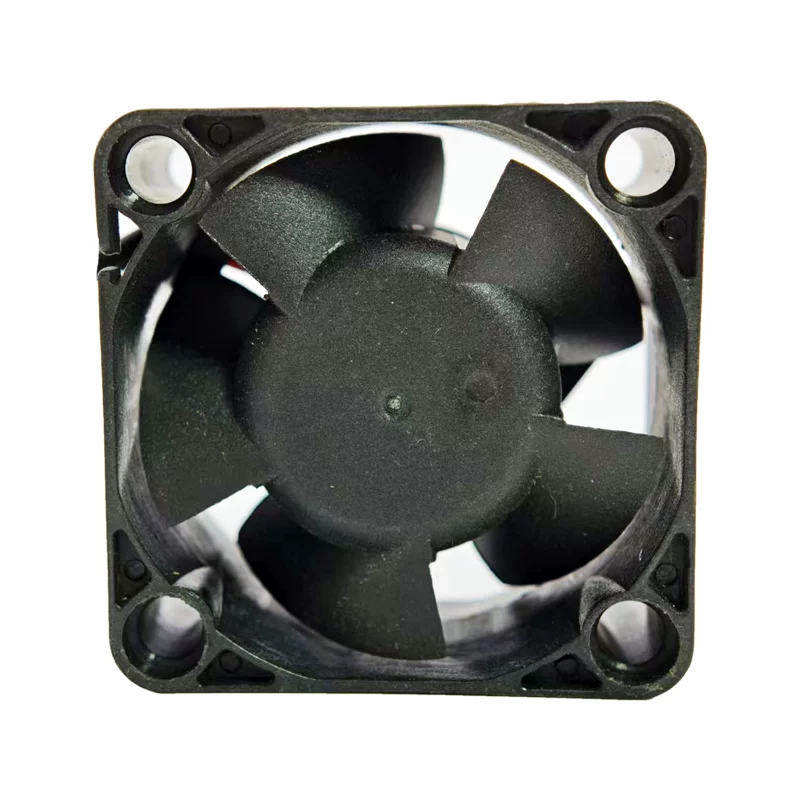

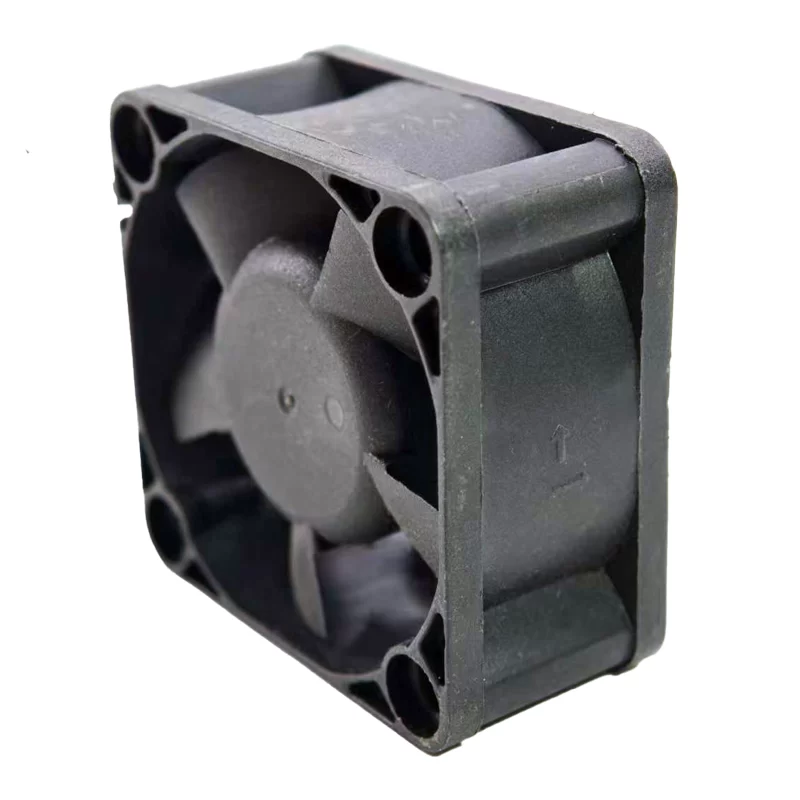

SJ4020HD1 SANJUN 12V DC Axial Fan

Description

The SANJUN SJ4020HD1 is a 12VDC axial fan with dimensions of 40x40x20mm. It draws 0.18A of current and consumes 2.16W of power. This fan provides 13.9m³/h (8.2CFM) of airflow. The fan operates at a high speed of 8000RPM, with a noise level of 35dB(A). It uses durable ball bearings and a two wire lead connection. The fan is constructed with plastic housing and impeller. It is suitable for ambient temperatures ranging from -20 to 85°C and has a typical service life of 40,000hours at 40°C.

SJ4020HD1 Fan Parameters
Manufacturer: SANJUN
Model: SJ4020HD1
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12 VDC
Current Rating: 0.18 A
Power Consumption: 2.16 W
Airflow: 13.9 m³/h (8.2 CFM)
Speed: 8000 RPM
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 85°C
Lifetime @ Temp: 40,000 Hours (at 40°C)
Housing Material: Plastic
Impeller Material: Plastic
Weight: 0.024 kg
Application: This SANJUN DC axial fan is suitable for compact electronic devices, small enclosures, and applications requiring focused airflow, such as cooling microprocessors or other heat-sensitive components.
