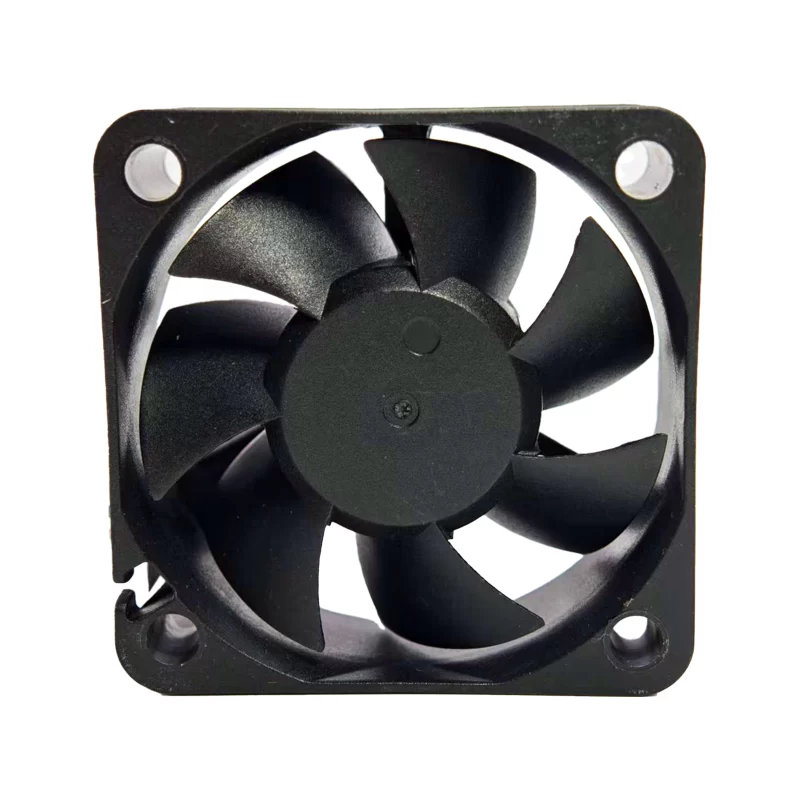

SJ5020HD2 SANJUN 24V DC Axial Fan

Description

The SANJUN SJ5020HD2 is a compact 24V DC Axial Fan with dimensions of 50x50x20mm, designed for efficient cooling in various electronic devices and small equipment. Operating at a nominal voltage of 24V DC, this fan draws a rated current of 0.14A, consuming 3.36W of power. It delivers a substantial airflow of 28.03m³/h (16.5CFM) and achieves a static pressure of 49.82Pa (0.20INH2O) at a speed of 6000RPM. Despite its high performance, the SJ5020HD2 maintains a low noise level of 30dB(A), making it suitable for noise-sensitive applications. Built with durable 2 ball bearings, and featuring a plastic frame and impeller, this fan ensures long-term reliability with a life expectancy of 50000 hours at 40°C. It is impedance protected and comes with standard 2-wire termination, making it ideal for automation, medical devices, small servers, and other applications requiring compact and quiet 24V DC cooling.

SJ5020HD2 Fan Parameters
Model: SJ5020HD2
Manufacturer: SANJUN
Type: DC Axial Fan
Dimensions: 50 x 50 x 20 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 18.0 to 27.6 V DC
Rated Current: 0.14 A
Power Consumption: 3.36 W
Speed: 6000 RPM
Airflow: 28.03 m³/h (16.5 CFM)
Static Pressure: 0.20 IN H2O (49.82 Pa / 5.08 mmH2O)
Noise Level: 30 dB(A)
Weight: 30 g
Bearing Type: 2 Ball Bearing
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 50000 h at 40°C
Termination: 2-wire leads
Motor Protection: Impedance Protected
Approval: CE, RoHS
Application: Automation, medical devices, small servers, networking equipment, and general electronic cooling.
