SJ6025HD2 SANJUN 24V DC Axial Fan

Description

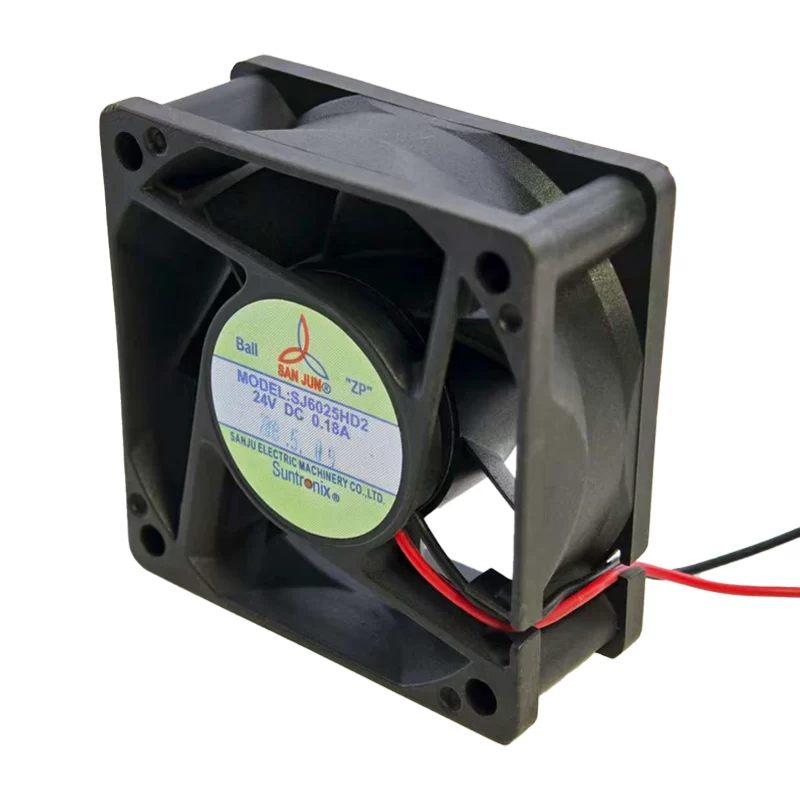

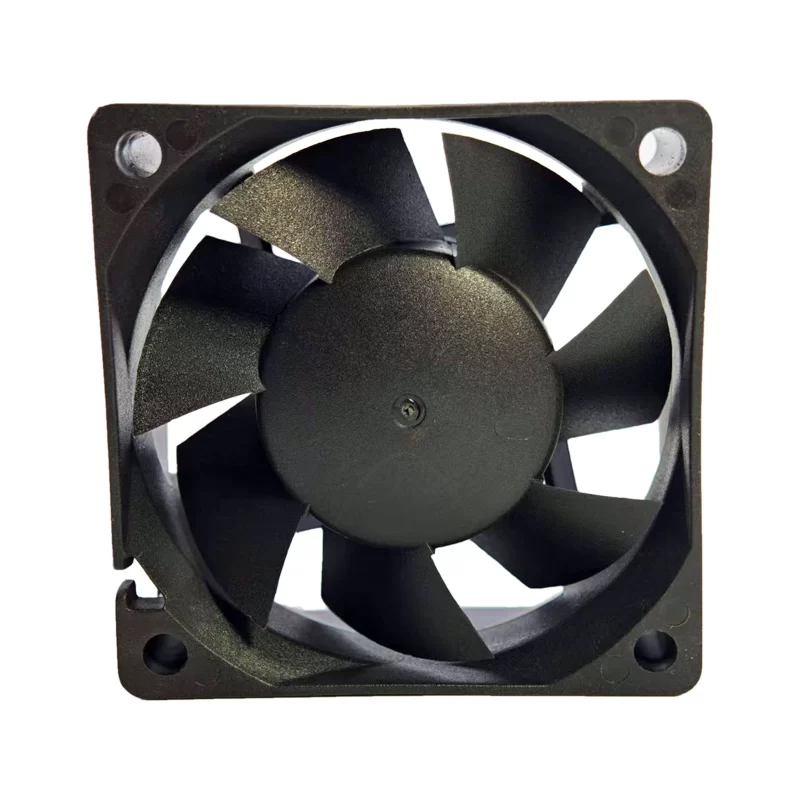

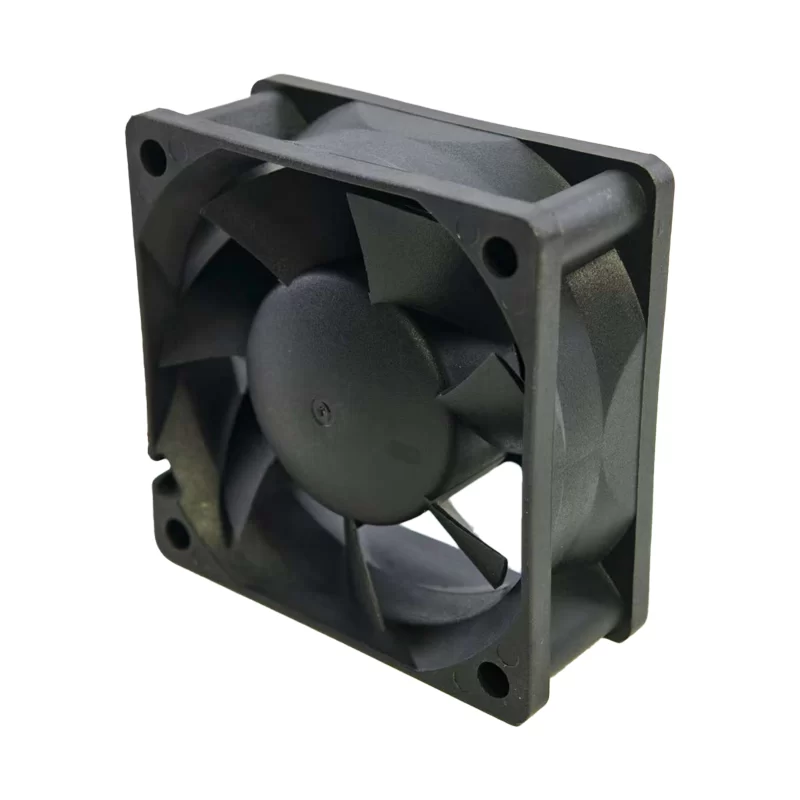

The SANJUN SJ6025HD2 is a 24V DC Axial Fan measuring 60x60x25mm. It draws 0.18A, resulting in a power consumption of 4.32W. This fan spins at 4500RPM, delivering an airflow of 42.5m³/h (25CFM) with a static pressure of 4.9mmH2O (48.06Pa), while producing a noise level of 37dB(A). It features a plastic frame and impeller, and comes with a 2-wire termination, making it suitable for various electronic enclosures, small appliances, and general cooling applications requiring a reliable and compact fan solution.

SJ6025HD2 Fan Parameters
Model: SJ6025HD2
Manufacturer: SANJUN
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 24 V DC
Rated Current: 0.18 A
Power Consumption: 4.32 W
Speed: 4500 RPM
Airflow: 42.5 m³/h (25 CFM)
Static Pressure: 4.9 mmH2O (48.06 Pa / 0.193 IN H2O)
Noise Level: 37 dB(A)
Weight: 56 g
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Termination: 2-wire leads
Application: Electronic enclosures, small appliances, networking devices, and general cooling.
