Description

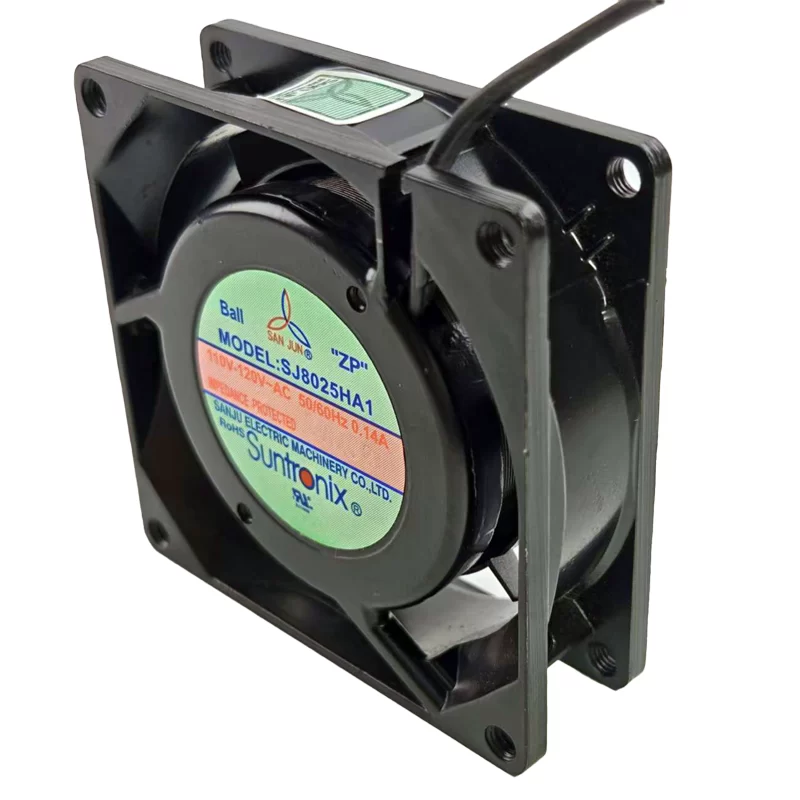

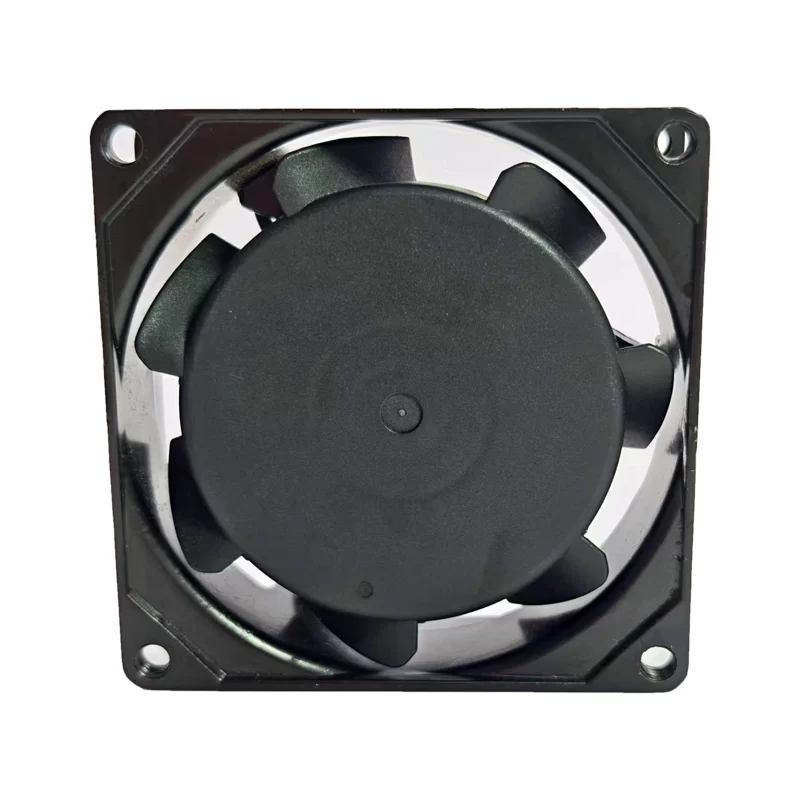

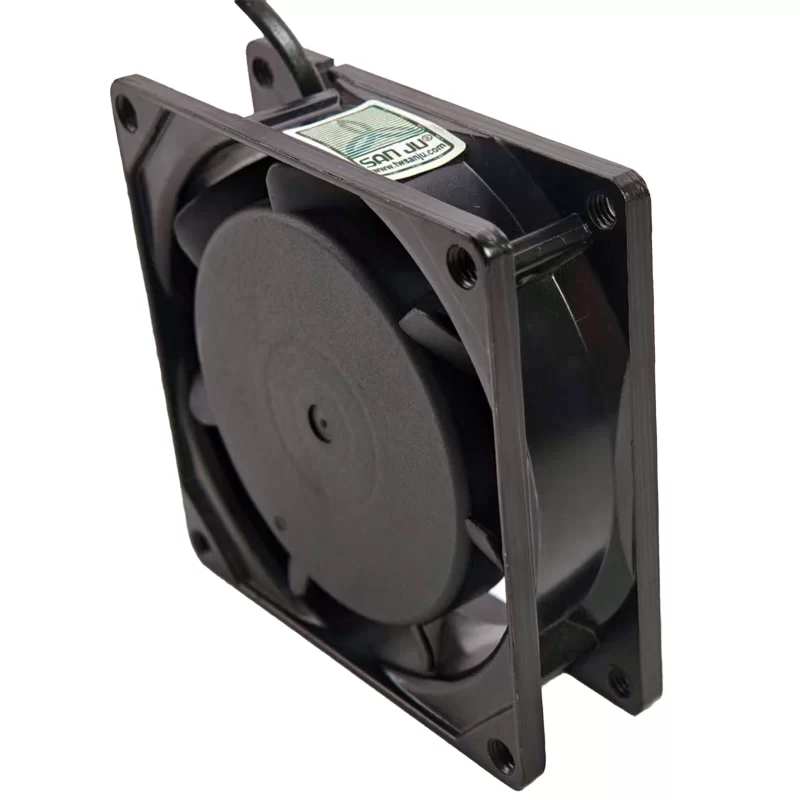

The SANJU SJ8025HA1 is a compact AC axial fan with dimensions of 80mm x 80mm x 25mm. It is designed for cooling in various electronic systems and industrial applications, particularly those operating on North American standard voltages. It operates on 110-120 VAC at both 50 Hz and 60 Hz. At 50 Hz, it typically draws 0.14A of current and consumes 15.4W of power, reaching a speed of 2300 RPM and delivering an airflow of 25 CFM (42.5 m³/h) with a noise level of 29 dB(A). At 60 Hz, the current is 0.12A, power consumption is 13.2W, with a speed of 2700 RPM, an airflow of 31 CFM (52.7 m³/h), and a noise level of 33 dB(A). It features dual ball bearings for enhanced durability and a longer service life, has a durable aluminum alloy frame, and weighs 230g, providing robust and reliable cooling.
SJ8025HA1 Fan Parameters
Model: SJ8025HA1
Manufacturer: SANJU
Type: AC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 110-120 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.14A / 0.12A
Power Consumption (50Hz / 60Hz): 15.4 W / 13.2 W
Speed (50Hz / 60Hz): 2300 RPM / 2700 RPM
Airflow (50Hz / 60Hz): 25 CFM / 31 CFM (42.5 m³/h / 52.7 m³/h)
Static Pressure (50Hz / 60Hz): 0.12 inch H2O (3.0 mm H2O) / 0.17 inch H2O (4.3 mm H2O)
Noise Level (50Hz / 60Hz): 29 dB(A) / 33 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic
Termination: 2-Wire Leads (or Faston terminals)
Operating Temperature: -10°C to +60°C (or up to +70°C)
Life Expectancy: 60,000 hours (at 25°C)
Weight: 230 g
Features: Impedance protected.
Application: Electronic equipment, control cabinets, power supplies, small appliances, general cooling for 110-120V systems.
