Description

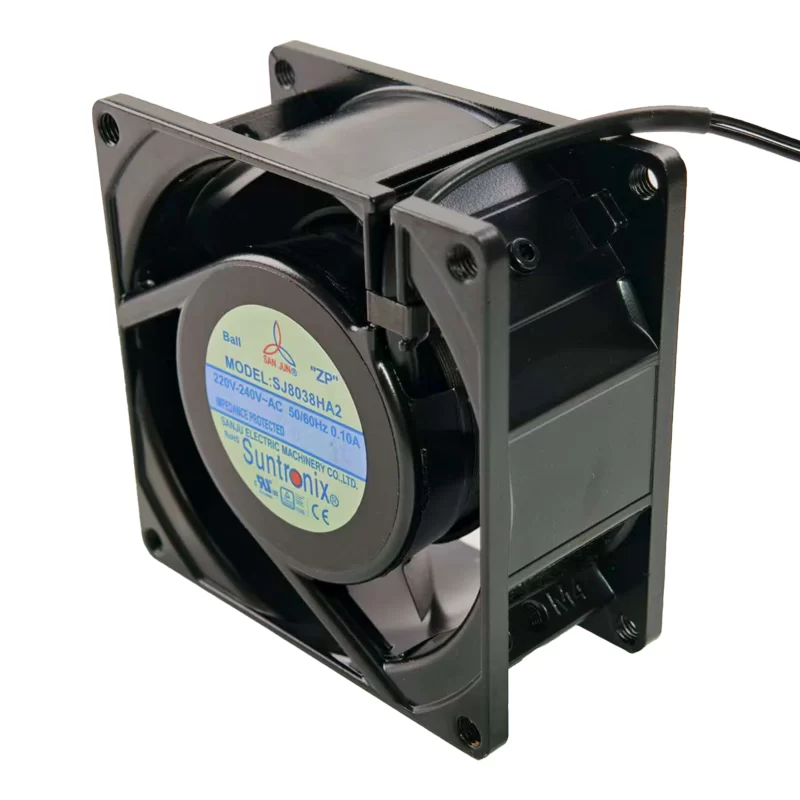

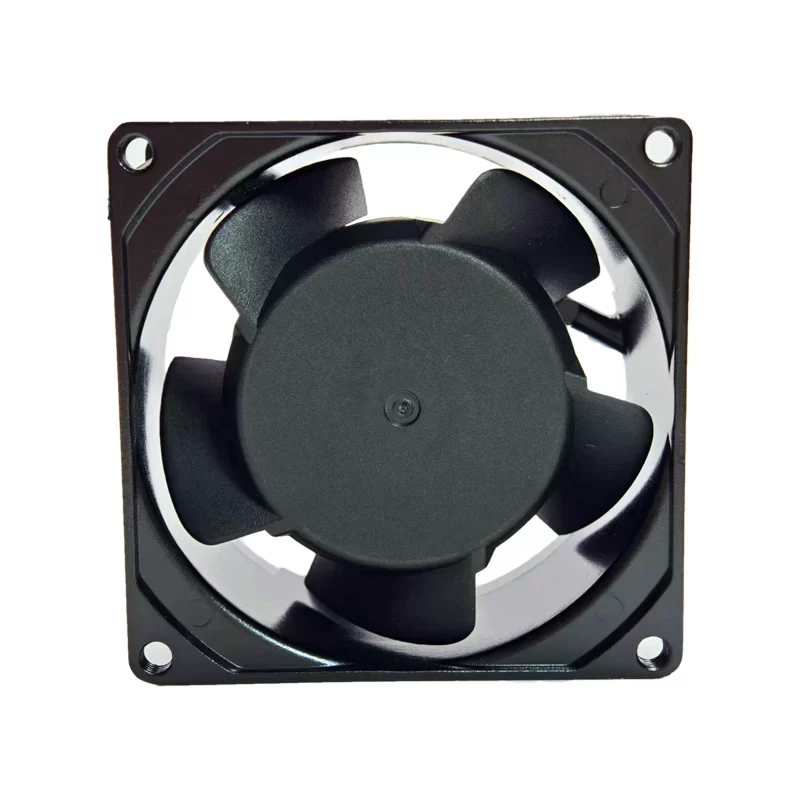

The SANJUN SJ8038HA2 is an AC axial fan measuring 80x80x38mm. It operates on 220-240 VAC, drawing 0.10 A of current, with a power consumption of 22 W. This fan achieves a speed of 2800 RPM, providing an airflow of 32 CFM (0.90 m³/min) with a static pressure of 0.17 inch H2O (42.3 Pa). The noise level is 31 dB(A). It features ball bearings for durable operation and connects via 2-wire Leads. Its aluminum frame provides robustness. This fan is suitable for air conditioners, manufacturing equipment, and various industrial cooling applications.
SJ8038HA2 Fan Parameters
Model: SJ8038HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 80x80x38 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.10 A
Power Consumption: 22 W
Speed: 2800 RPM
Airflow: 32 CFM (0.90 m³/min)
Static Pressure: 0.17 inch H2O (42.3 Pa)
Noise Level: 31 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Weight: 293 g
Material Frame: Aluminum
Material Blade: Plastic
Operating Temperature: -20 to 85°C
Expected Life: 60000 Hrs at 20°C
Application: Air conditioners, manufacturing, industrial cooling.
