Description

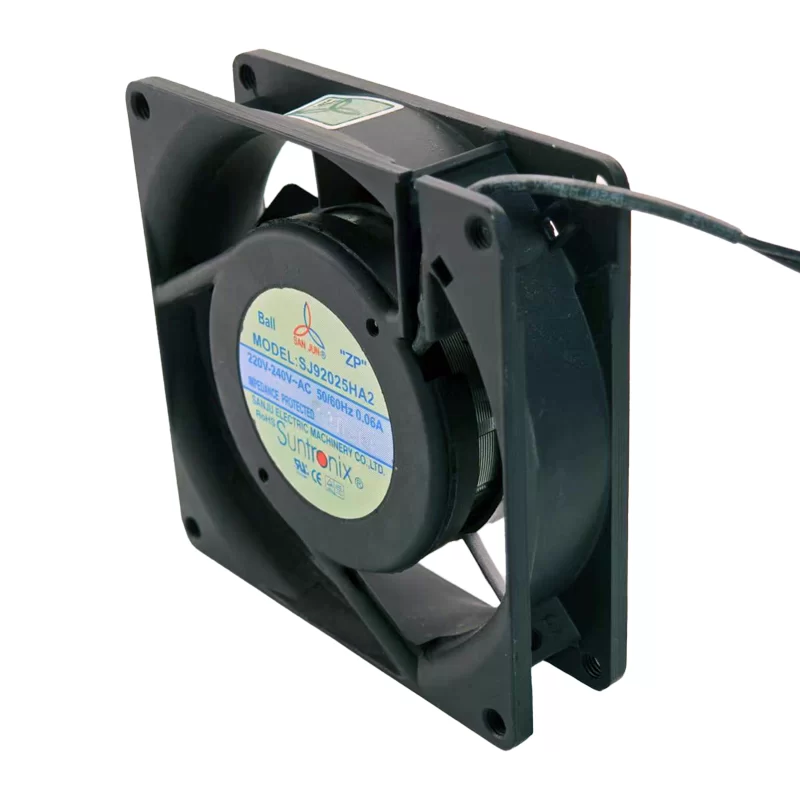

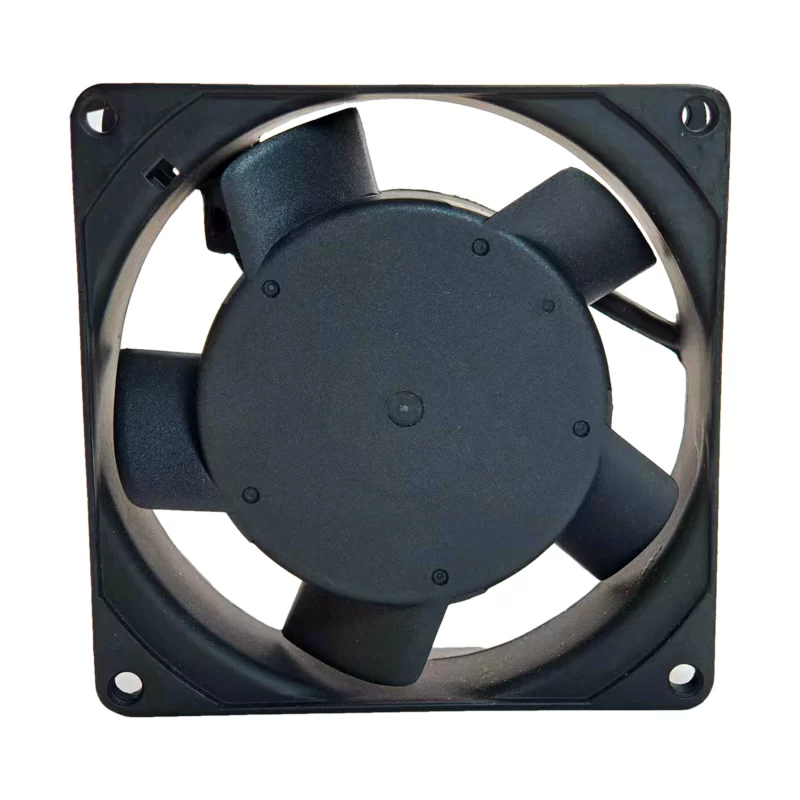

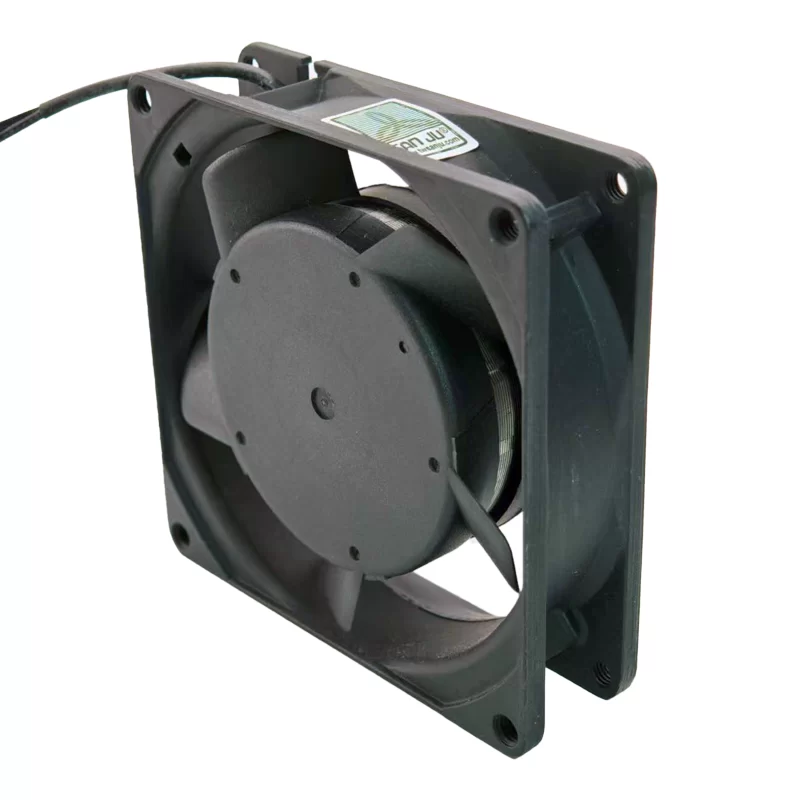

The SANJUN SJ92025HA2 is an AC axial fan measuring 92x92x25mm. It operates on 220-240 VAC at 50/60 Hz frequencies, drawing 0.06 A of current, with a power consumption of 13.2 W. This fan achieves a speed of 3000 RPM, providing an airflow of 40 CFM. The noise level is 40 dB(A). It features ball bearings for durable operation and connects via 2-wire Leads. This fan is commonly used in electronic enclosures, control panels, and other equipment requiring reliable AC cooling in a compact form factor.
SJ92025HA2 Fan Parameters
Model: SJ92025HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 92x92x25 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.06 A
Power Consumption: 13.2 W
Speed: 3000 RPM
Airflow: 40 CFM
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Weight: 200 g
Material Frame: Aluminum
Material Blade: Plastic
Operating Temperature: -20 to 85°C
Expected Life: 60000 Hrs at 20°C
Application: Electronic enclosures, control panels, general AC cooling.
