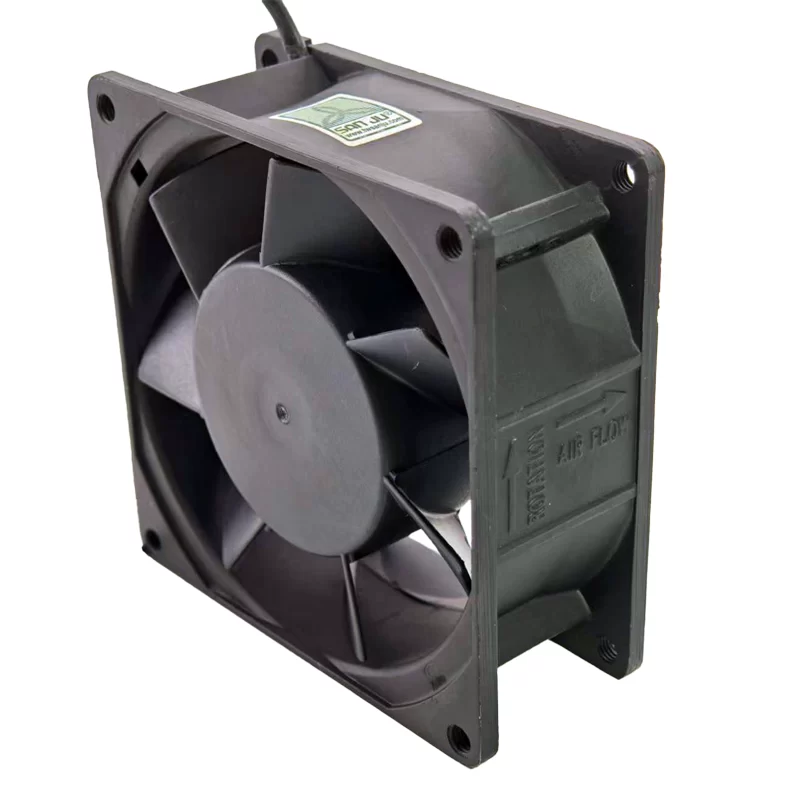

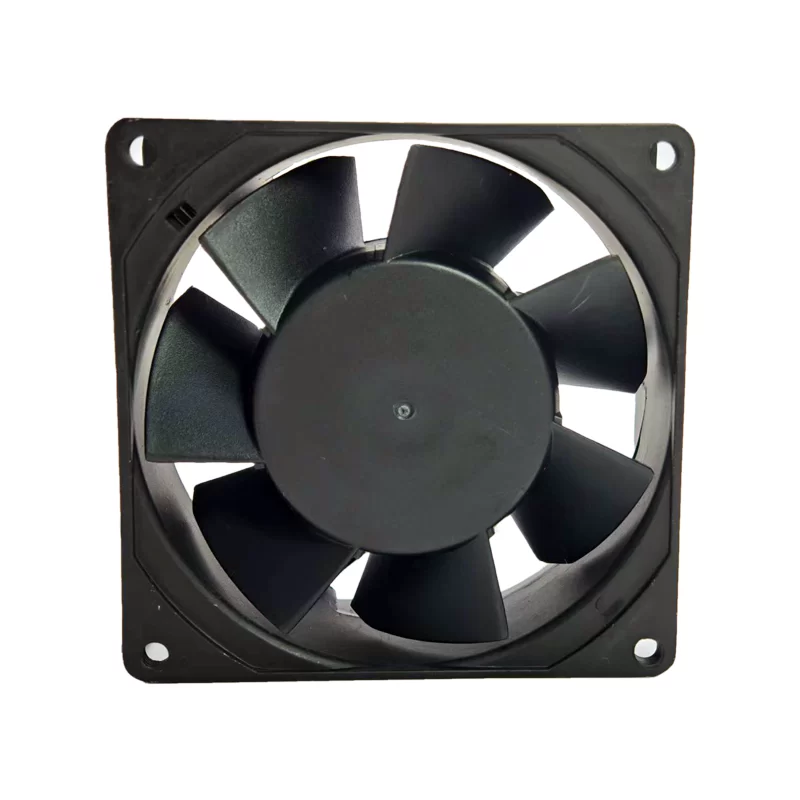

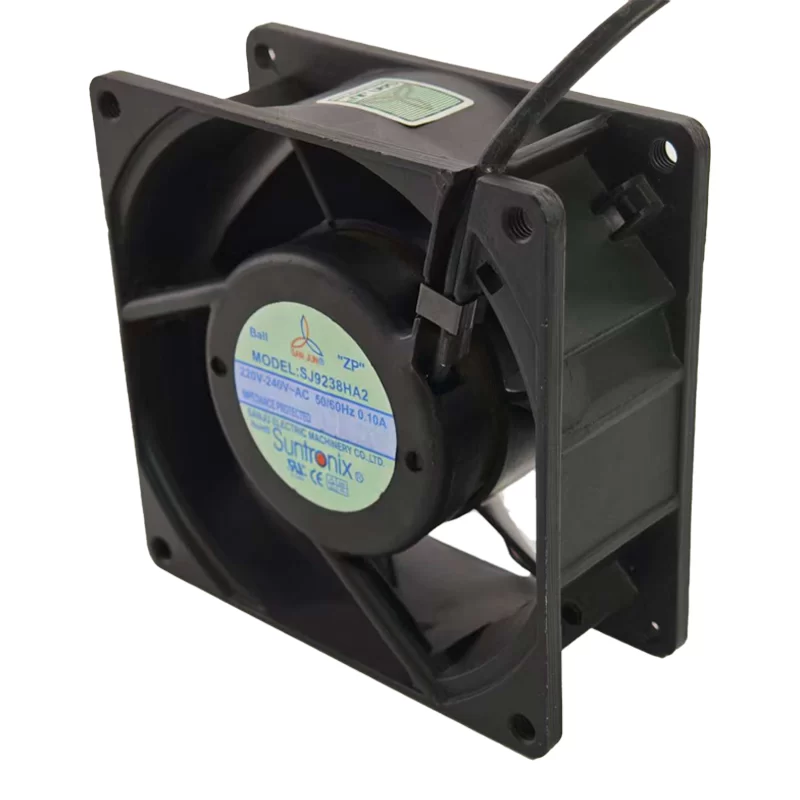

SJ9238HA2 SANJUN 230V AC Axial Fan

Description

The SANJUN SJ9238HA2 is a reliable 230V AC Axial Fan with dimensions of 92x92x38mm, engineered for efficient and quiet cooling in various electronic and industrial applications. The SJ9238HA2 is designed to operate efficiently across both 50Hz and 60Hz frequencies. When operating at 50Hz, the SJ9238HA2 has a rated current of 0.07A and consumes 12W of power. It achieves a speed of 2000RPM, providing an airflow of 76.46m³/h (45CFM) with a static pressure of 39.85Pa (0.16INH2O). Its noise level is 37dB(A). At 60Hz, the SJ9238HA2 draws 0.06A and consumes 9W of power. Its speed increases to 2400RPM, delivering an enhanced airflow of 93.45m³/h (55CFM) with a static pressure of 52.31Pa (0.21INH2O). In this mode, the noise level is 41dB(A). The SJ9238HA2 is suitable for control cabinets, power supplies, networking equipment, and general electronic cooling where balanced performance and acoustic levels are desired.

SJ9238HA2 Fan Parameters
Model: SJ9238HA2
Manufacturer: SANJUN
Type: AC Axial Fan
Dimensions: 92 x 92 x 38 mm
Nominal Voltage: 230 V
Frequency: 50/60 Hz
Rated Current: 0.07 A (50Hz) / 0.06 A (60Hz)
Power Consumption: 12 W (50Hz) / 9 W (60Hz)
Speed: 2000 RPM (50Hz) / 2400 RPM (60Hz)
Airflow: 76.46 m³/h (45 CFM) (50Hz) / 93.45 m³/h (55 CFM) (60Hz)
Static Pressure: 0.16 IN H2O (39.85 Pa / 4.06 mmH2O) (50Hz) / 0.21 IN H2O (52.31 Pa / 5.33 mmH2O) (60Hz)
Noise Level: 37 dB(A) (50Hz) / 41 dB(A) (60Hz)
Weight: 320 g
Application: Control cabinets, power supplies, networking equipment, and general electronic cooling.
