Description

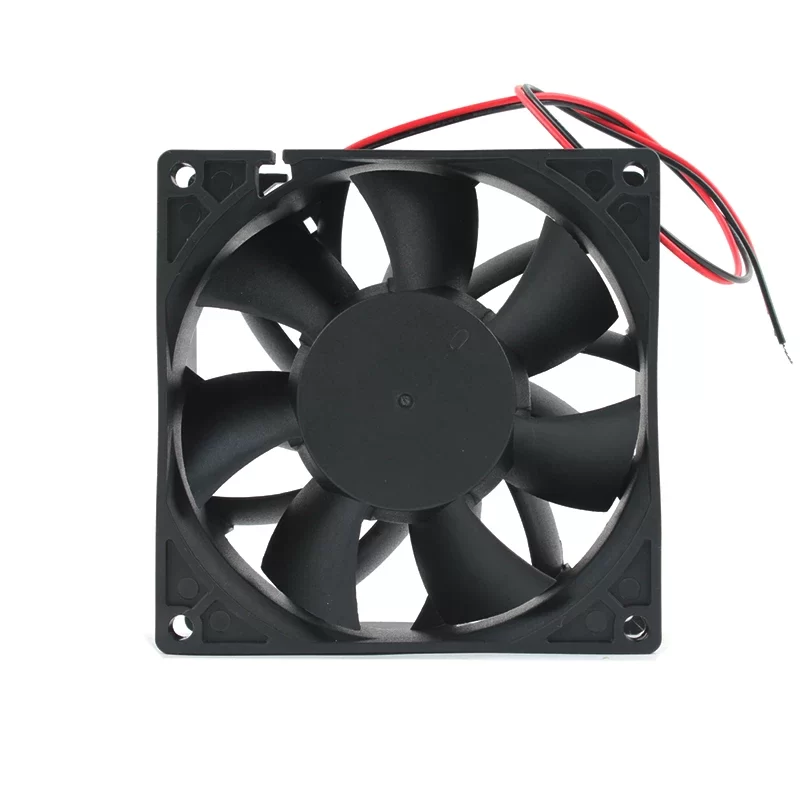

The SANJUN SJ9238HD2 is a high-performance 24 VDC DC Axial Fan with dimensions of 92 x 92 x 38 mm, specifically engineered for high-demand thermal management in industrial frequency converters and electrical control cabinets. Driven by a robust brushless motor with a power consumption of 14.4 W and a nominal current of 0.6 A, this precision unit operates at a high speed of 5500 RPM, delivering a powerful airflow of 112 CFM for efficient heat extraction. Constructed with a heavy-duty ruggedized housing and a 7-blade high-velocity impeller system, this 3195 g unit provides a dependable and energy-efficient air-moving solution with a noise level of 59 dB(A), ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
SJ9238HD2 Fan Parameters
Model Number: SJ9238HD2
Manufacturer: SANJUN
Series: SJ Series
Type: DC Axial Fan
Impeller Size: 85 mm
Dimensions: 92 x 92 x 38 mm
Weight: 195 g
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Power Consumption: 14.4 W
Nominal Current: 0.6 A
Speed: 5500 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 112 CFM (190.3 m³/h)
Actual Static Pressure: 0.75 inAq (186.7 Pa)
Noise Level: 59 dB(A)
Motor Protection: Polarity and locked rotor protection
Insulation Class: Class B
Electrical Hookup: 2 Lead wires
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Housing Material: Die-cast aluminum
Impeller Material: Plastic (UL94V-0)
Installation Position: Any
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Standard Compliance: UL; CUL; TUV; CE
Application
The SANJUN SJ9238HD2 DC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems.
