Description

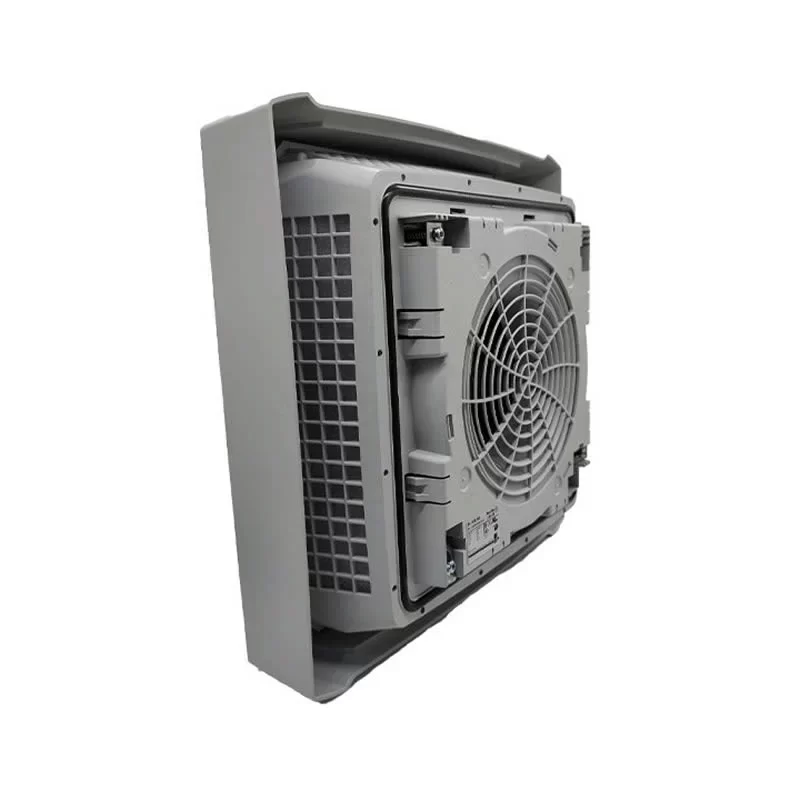

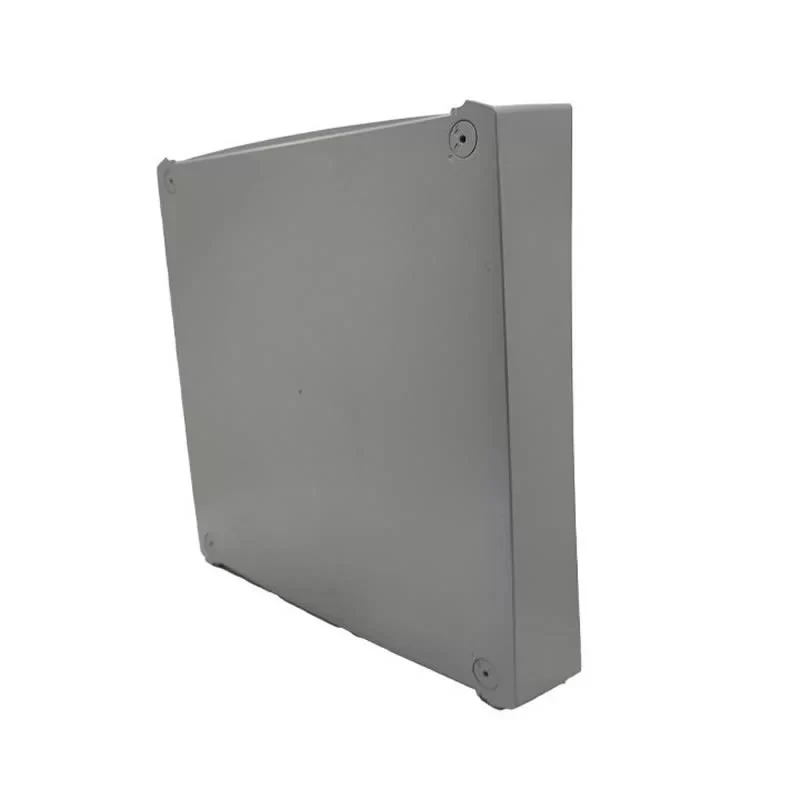

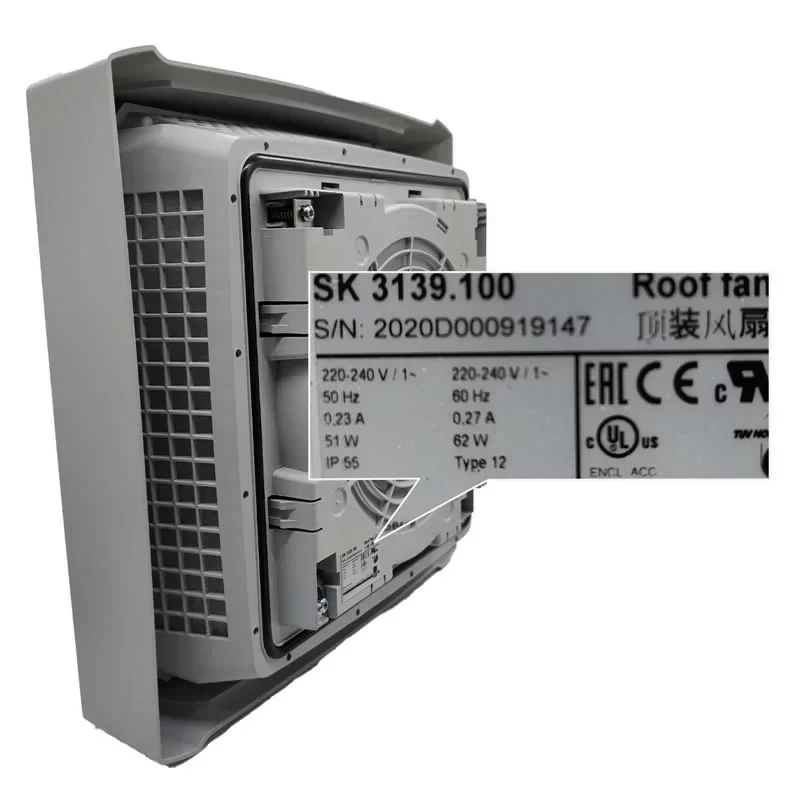

The Rittal SK3139.100 is a high-performance TopTherm roof-mounted fan unit with a nominal voltage of 230 VAC and external dimensions of 400 x 133 x 400 mm, specifically engineered for high-protection air extraction in electrical enclosures and server racks. Driven by a high-efficiency radial capacitor motor with a power consumption of 51 W at 50 Hz and 62 W at 60 Hz, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability with a service life of up to 69,000 hours. Its advanced aerodynamic design delivers an unimpeded air throughput of 500 m³/h, which remains a robust 474 m³/h even when equipped with the integrated pleated filter for enhanced filtration. Constructed with a durable RAL 7035 light grey housing and featuring an innovative clamping attachment for flexible installation from inside or outside, this 5.16 kg unit provides a dependable and energy-efficient cooling solution with IP54 protection and NEMA 12 rating for industrial power distribution, telecommunications hubs, and automated control infrastructure at the end.
SK3139.100 Fan Parameters
Model Number: SK3139.100
Manufacturer: Rittal (ebmpapst OEM)
Series: TopTherm Roof-mounted fans
Design: Roof-mounted
Type: AC Radial Fan
Dimensions: 400 x 133 x 400 mm
Installation Depth: 34.6 mm
Mounting Cut-out: 258 x 258 mm
Weight: 5.16 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC (Single-phase)
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Power Consumption: 51 W (50 Hz) / 62 W (60 Hz)
Nominal Current: 0.23 A (50 Hz) / 0.27 A (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Air Throughput (Unimpeded): 500 m³/h (50 Hz) / 525 m³/h (60 Hz)
Air Throughput (With Filter): 474 m³/h (50 Hz) / 514 m³/h (60 Hz)
Service Life (L10 @ 40 °C): 69,000 h (50 Hz) / 67,600 h (60 Hz)
Noise Level: 52 dB(A) (50 Hz) / 54 dB(A) (60 Hz)
Motor Design: AC capacitor motor
Motor Protection: Miniature circuit-breaker/fuse: 3 A (Pre-fuse)
Electrical Hookup: Terminal strips
Airflow Direction: V (Exhaust over struts)
Colour: RAL 7035 (Light grey)
Included Accessories: Complete unit ready to install, pleated filter
Degree of Protection: IP 54 (including pleated filter); IP 21 (without filter)
Protection Category NEMA: NEMA 12
Operating Temperature: -20 – +55 °C
Storage Temperature: -40 – +70 °C
Standard Compliance: EN 60529; CE; UKCA
Approval Agency: CSA; KC; TÜV; UL + C-UL; UR + C-UR
Application
The Rittal SK3139.100 fan is primarily utilized in electrical enclosure roof cooling units, server rack heat extraction, and industrial switchgear ventilation.
