Description

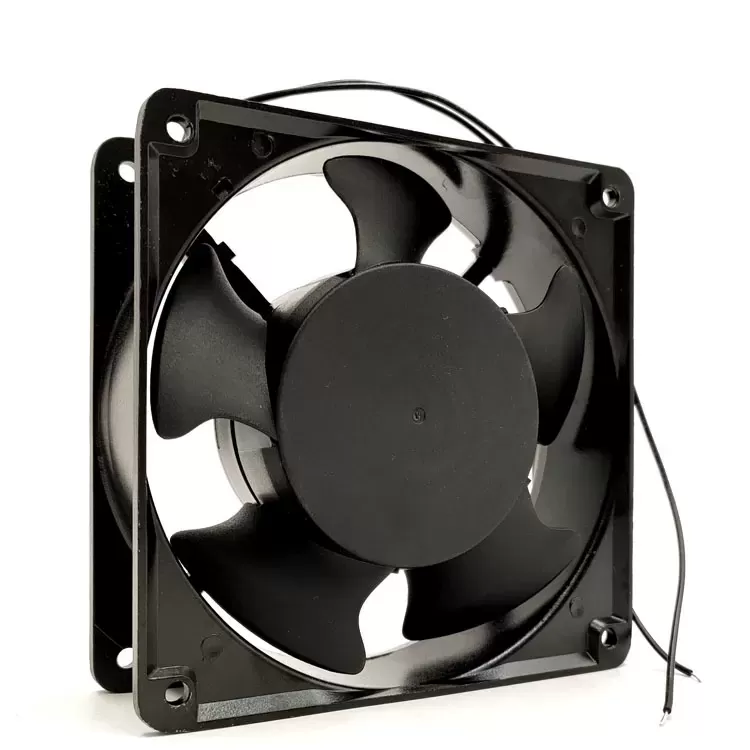

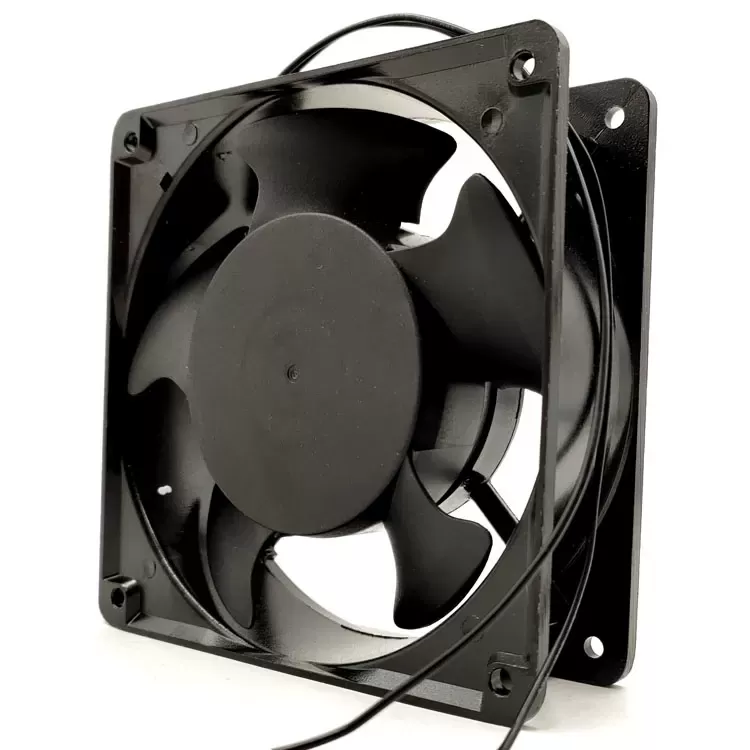

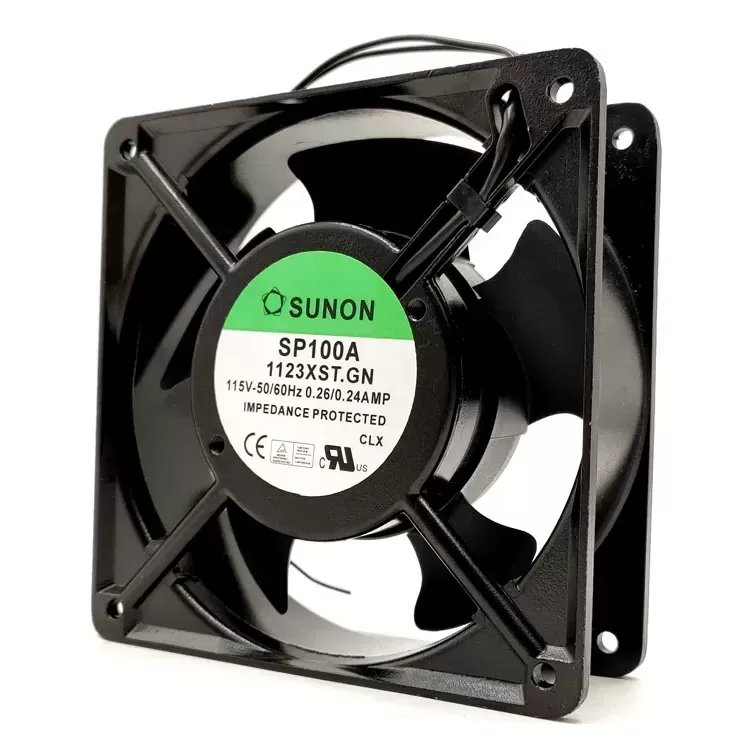

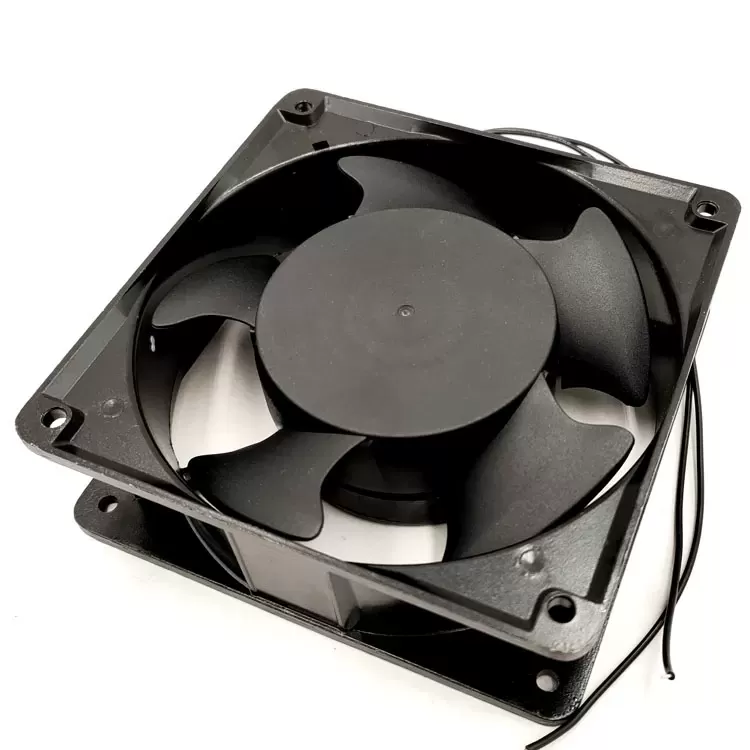

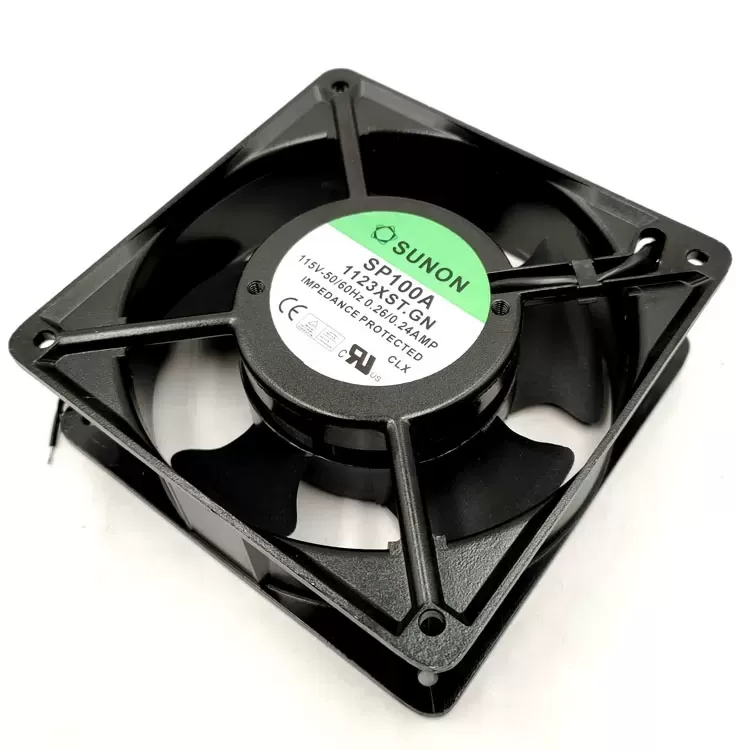

The SUNON SP100A 1123XST.GN is a powerful 115V AC axial cooling fan. Measuring 120mm x 120mm x 38mm, it is designed for robust air movement in various applications. Operating at 115V AC (50/60Hz), it draws approximately 0.24A to 0.26A of current, consuming 20W to 22W of power. This fan delivers a high airflow of up to 115 CFM (193.2 m³/h) with a speed of 3100 RPM and a noise level of 49 dBA. It features a durable sleeve bearing system and has a die-cast aluminum frame for enhanced rigidity.
Model Number: SP100A 1123XST.GN
Manufacturer: SUNON
Type: AC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 115 VAC
Operating Voltage Range: 85-125 VAC
Frequency: 50/60 Hz
Rated Current: 0.24A – 0.26A (at 60Hz)
Rated Power: 20W – 22W (at 60Hz)
Speed: 3100 RPM (at 60Hz)
Airflow: 115 CFM (193.2 m³/h) (at 60Hz)
Static Pressure: 0.38 inch-H2O (9.65 mmH2O) (at 60Hz)
Noise Level: 49 dBA (at 60Hz)
Connector: 2 Terminals
Bearing Type: Sleeve Bearing
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic (PBT UL 94V-0)
Operating Temperature: -10°C to +70°C
Weight: 550 g
Features: Automatic Restart Capability
Approvals/Certifications: UL, CSA, TUV, CE, UKCA
