Description
Model Number: PSD24H0AZBX-A (2).Z.GN
Manufacturer: SUNON Fans
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: Rectangular/Rounded – 170 mm L x 150 mm H x 51 mm W
Rated Voltage: 24 VDC
Voltage Range: 20.4 VDC to 27.6 VDC
Rated Current: 2.30 A
Input Power: 55.2 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 5800 RPM
Maximum Airflow: 387.1 CFM (10.84 m³/min)
Maximum Static Pressure: 1.233 in H2O (307.1 Pa)
Noise Level: 69.0 dB
Frame Material: Polybutylene Terephthalate (PBT)
Impeller Blade Material: Polybutylene Terephthalate (PBT)
Features: Auto Restart
Ingress Protection: IP55 – Dust Protected, Water Resistant
Operating Temperature Range: -10°C to 70°C
Expected Life: 50,000 Hours at 25°C
Safety Approvals: CE, cURus, TUV

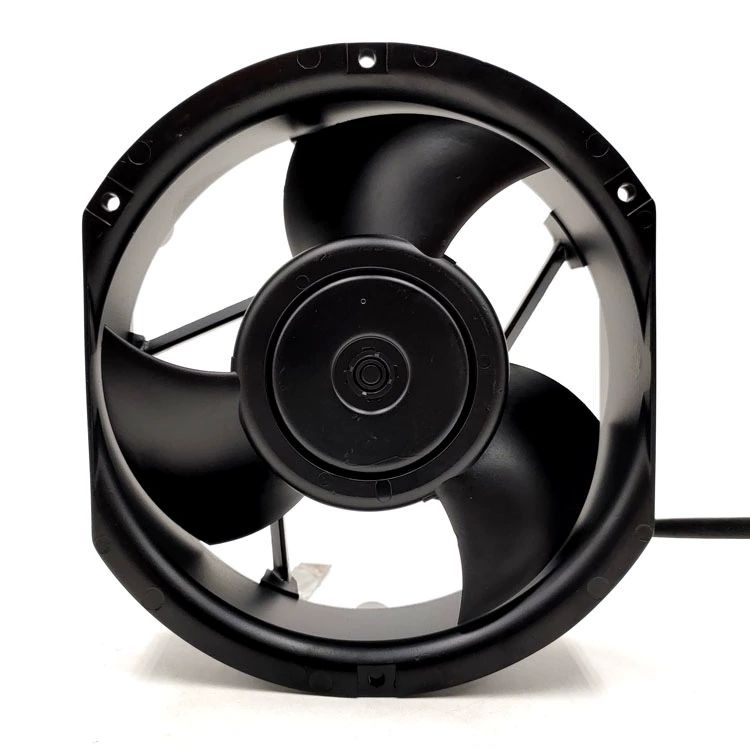

The SUNON PSD24H0AZBX-A (2).Z.GN is a powerful 170x150x51mm DC axial fan built for demanding cooling applications. Operating on 24VDC, it consumes 55.2W of power and draws 2.30A. This fan utilizes durable ball bearings and delivers a substantial airflow of 387.1 CFM at 5800 RPM, with a static pressure of 1.233 in H2O. Despite its high performance, which results in a noise level of 69.0 dB, its IP55 protection rating makes it suitable for environments where dust and water resistance are important. With an auto-restart feature and a robust PBT construction, it provides a reliable and long-lasting thermal management solution for industrial, telecommunication, and high-performance electronic systems.
