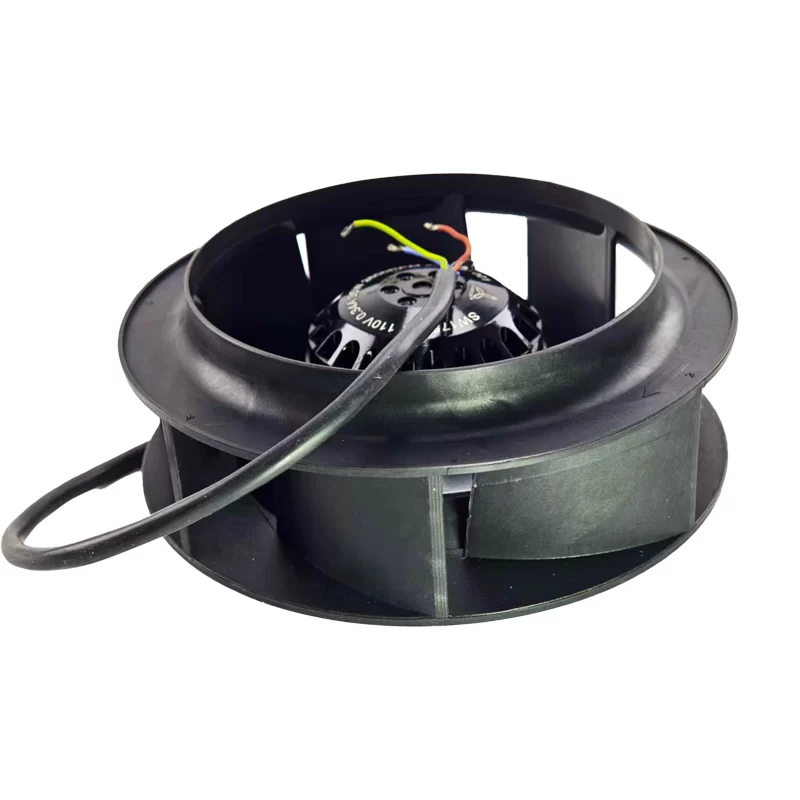

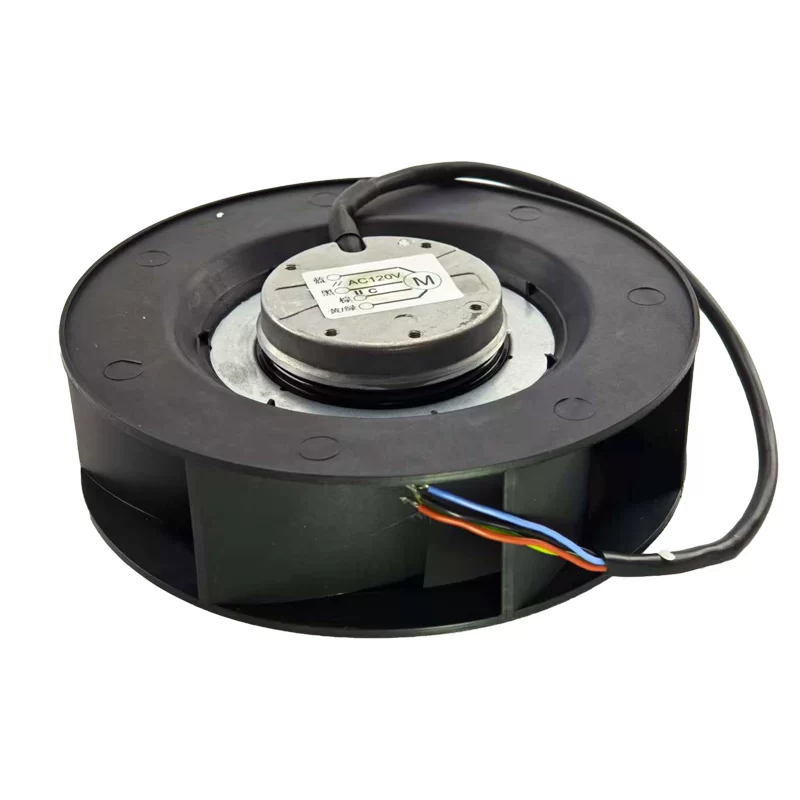

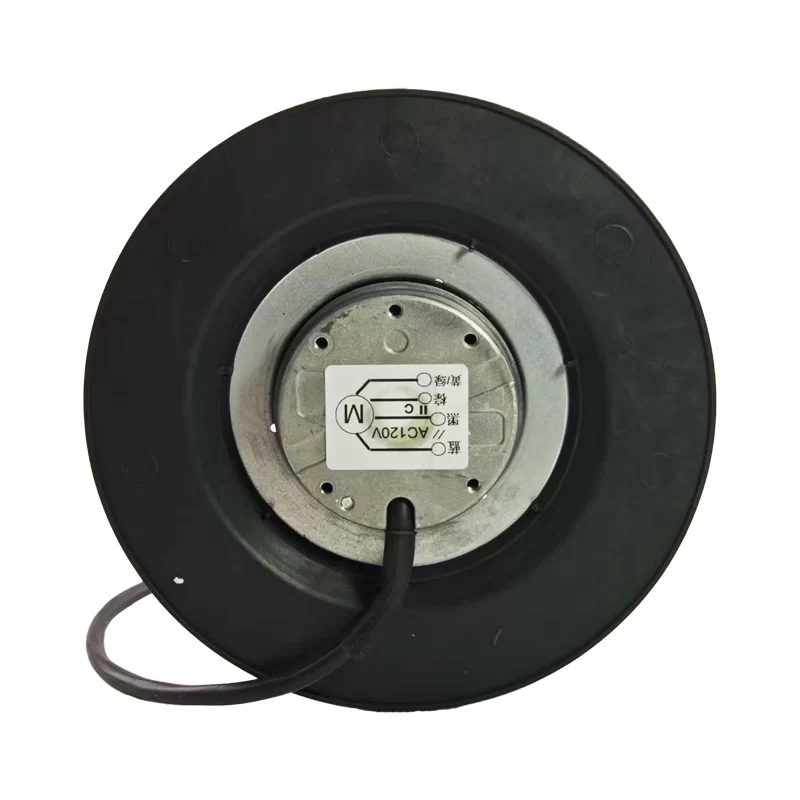

SW175HA1 SANJUN 110V AC Centrifugal Fan

Description

The SANJUN SW175HA1 is a specialized 110V AC Centrifugal Fan with dimensions of 175×68.5mm. This fan is designed for applications requiring precise air movement and pressure, operating at a nominal voltage of 110V. It draws a rated current of 0.34A, consuming 3.5W of power, and operates at a speed of 2600RPM. The fan produces a noise level of 63dB(A), indicating its capability for robust air handling. Equipped with 4-wire leads for termination, the SW175HA1 is suitable for various systems where compact, efficient air propulsion or exhaust is needed, such as in ventilation systems, industrial equipment, and certain air handling units.

SW175HA1 Fan Parameters
Model: SW175HA1
Manufacturer: SANJUN
Type: AC Centrifugal Fan
Dimensions: 175 x 68.5 mm
Nominal Voltage: 110 V
Rated Current: 0.34 A
Power Consumption: 3.5 W
Speed: 2600 RPM
Noise Level: 63 dB(A)
Weight: 900 g
Termination: 4-wire leads
Application: Ventilation systems, industrial equipment, and air handling units.
