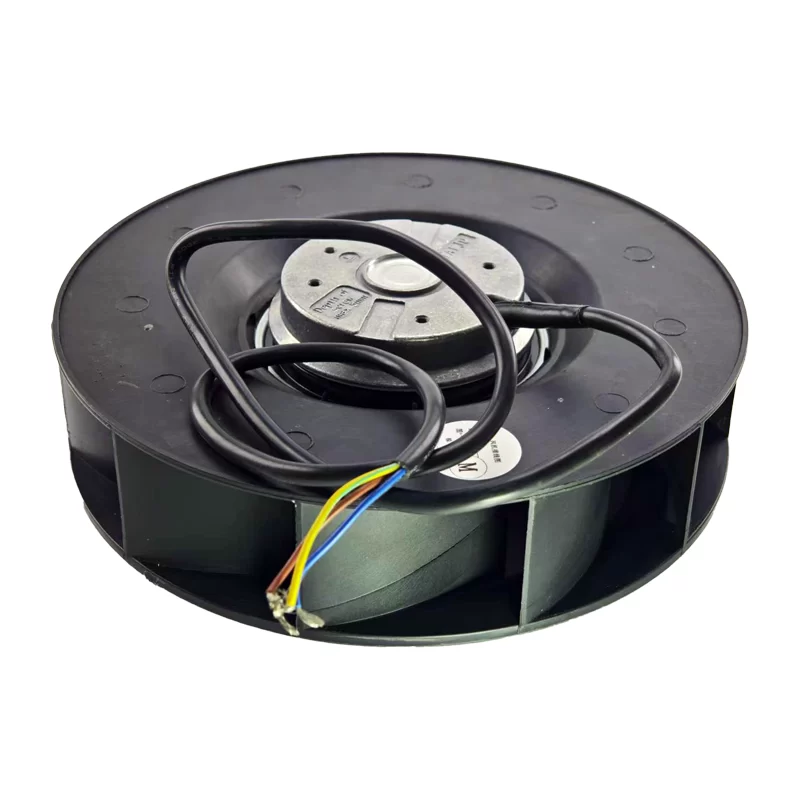

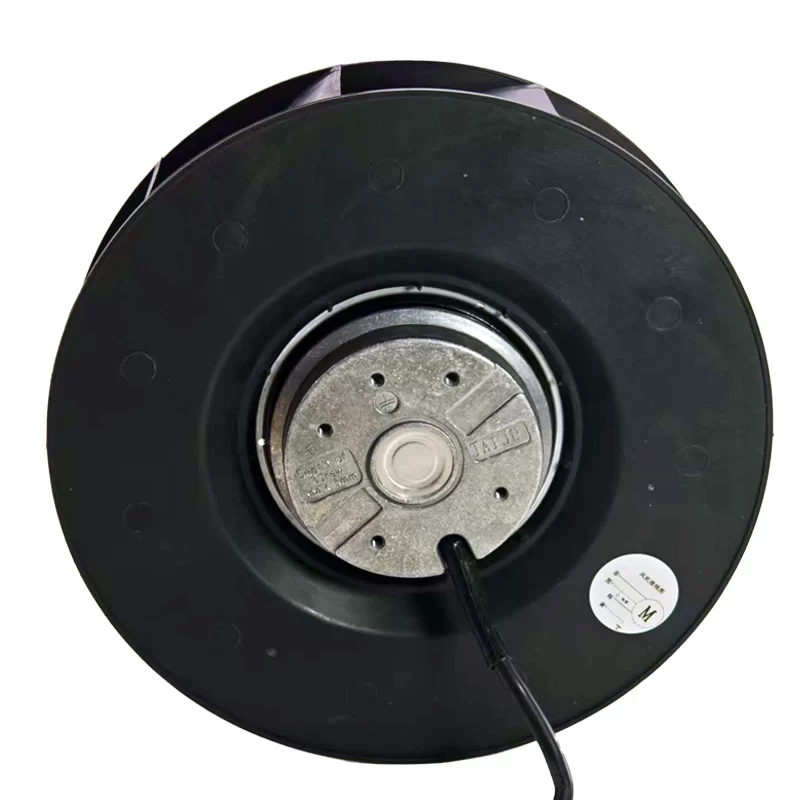

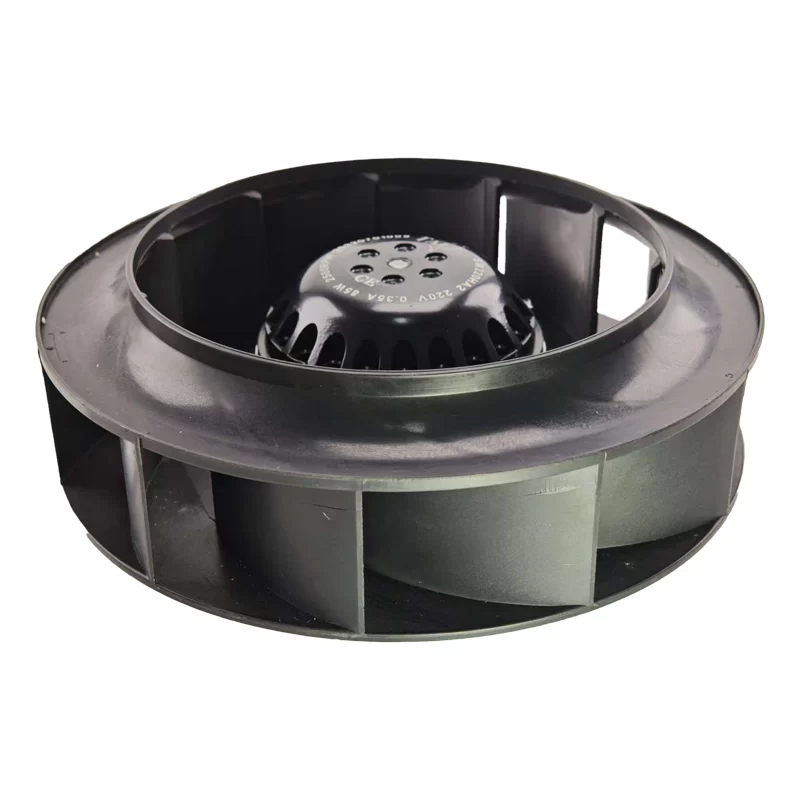

SW220HA2 SANJUN 220/240V AC Centrifugal Fan

Description

The SANJUN SW220HA2 is a robust 220/240V AC Centrifugal Fan with compact dimensions of 220x71mm, suitable for various industrial and commercial air handling applications. The SW220HA2 is designed to operate efficiently across both 50Hz and 60Hz frequencies. When operating at 50Hz, it has a rated current of 0.34A and consumes 78W of power. It achieves a speed of 2380RPM, providing an airflow of 840m³/h (494.4CFM). At 60Hz, The SW220HA2 draws 0.36A and consumes 82W of power. Its speed increases to 2455RPM, delivering an enhanced airflow of 870m³/h (512.1CFM). The SW220HA2 has a consistent noise level of 73dB(A). The SW220HA2 is designed for systems requiring powerful and efficient air movement, such as in ventilation systems, industrial equipment, and air handling units where precise air control is essential.

SW220HA2 Fan Parameters
Model: SW220HA2
Manufacturer: SANJUN
Type: AC Centrifugal Fan
Dimensions: 220 x 71 mm
Nominal Voltage: 220/240 V
Frequency: 50/60 Hz
Rated Current: 0.34 A (50Hz) / 0.36 A (60Hz)
Power Consumption: 78 W (50Hz) / 82 W (60Hz)
Speed: 2380 RPM (50Hz) / 2455 RPM (60Hz)
Airflow: 840 m³/h (494.4 CFM) (50Hz) / 870 m³/h (512.1 CFM) (60Hz)
Noise Level: 73 dB(A)
Weight: 1300 g
Application: Ventilation systems, industrial equipment, and air handling units.
