Description

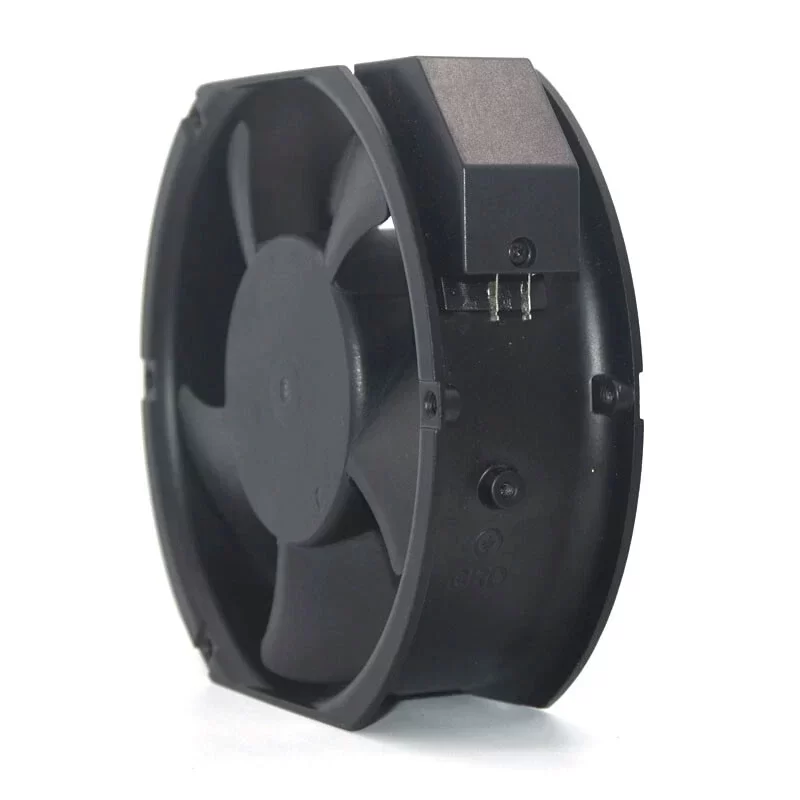

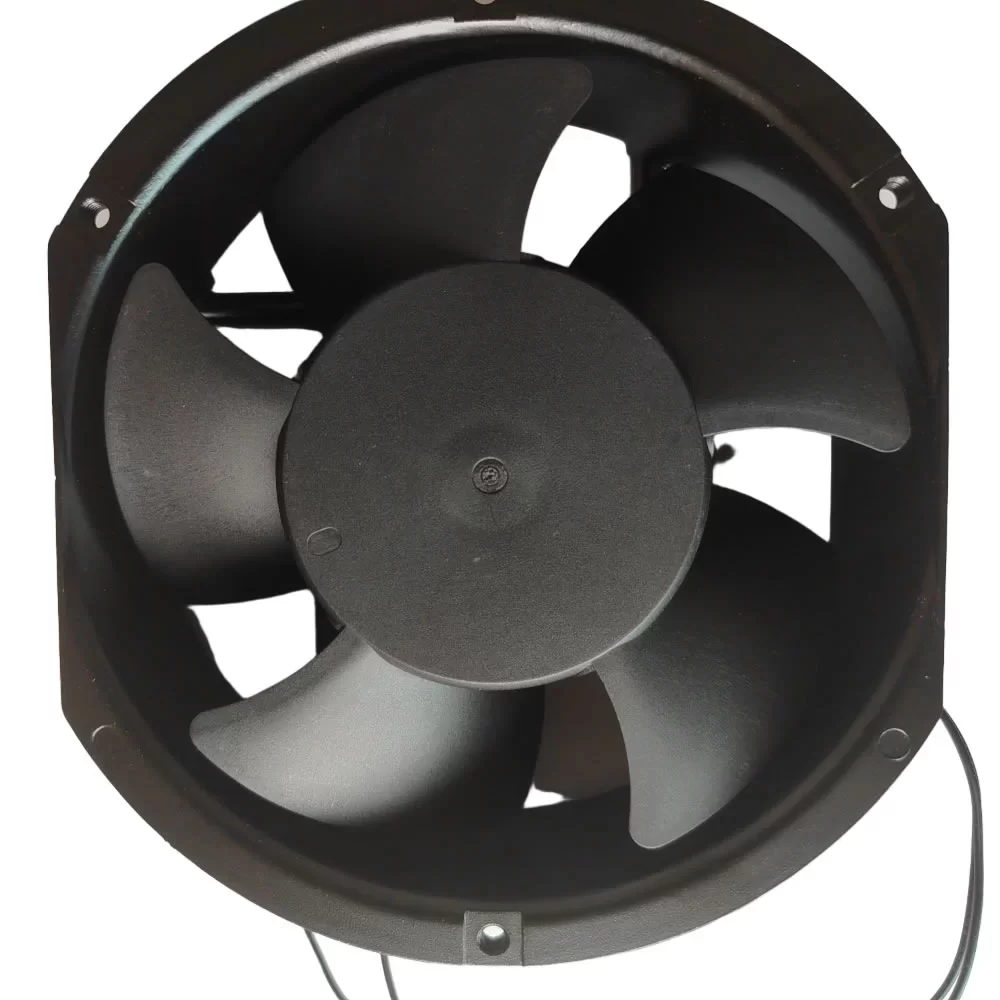

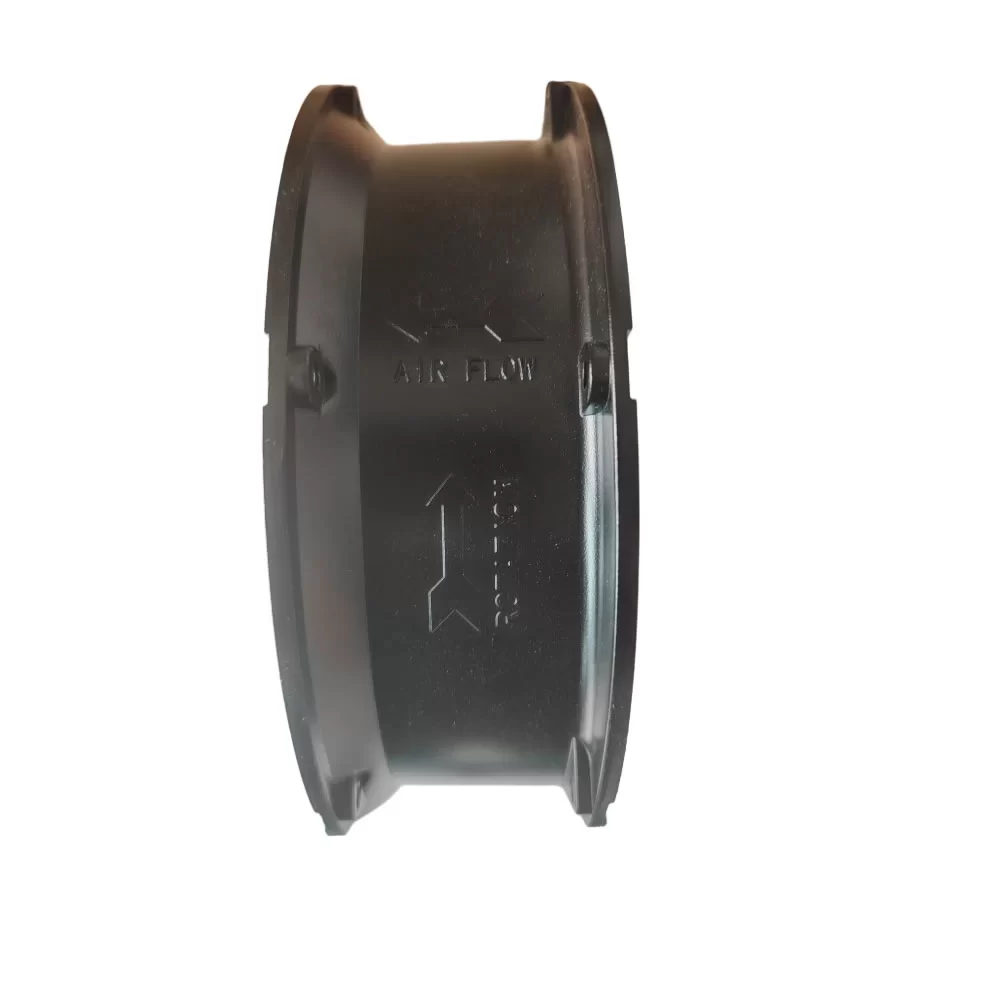

The SXDOOL SXDE17251HB is an EC fan with dimensions of 172 x 150 x 51 mm. It supports a wide voltage range of 115-230V and operates at both 50 Hz and 60 Hz. The fan has a rated power consumption of 32 W and an airflow of 272 CFM. It runs at a speed of 4000 RPM with a noise level of 61 dB(A). The fan is constructed from plastic, uses ball bearings for enhanced durability, and has a starting voltage of 85 VAC. Its input current is 0.25 A, with a label current of 0.30 A, and it connects via a 33 cm cable.
SXDE17251HB Fan Parameters
Manufacturer: SXDOOL
Model: SXDE17251HB
Fan Type: EC Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 115-230V
Rated Frequency: 50/60 Hz
Start-Up Voltage: 85 VAC
Input Current: 0.25 A
Label Current: 0.30 A
Power Consumption: 32 W
Airflow: 272 CFM
Speed: 4000 RPM
Noise Level: 61 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads or 2 Flat Pin Terminals
Cable Length: 33cm
Housing Material: Plastic
Impeller Material: Plastic
Application: The SXDE17251HB is suitable for a variety of general-purpose cooling applications in industrial equipment and systems.
