Description

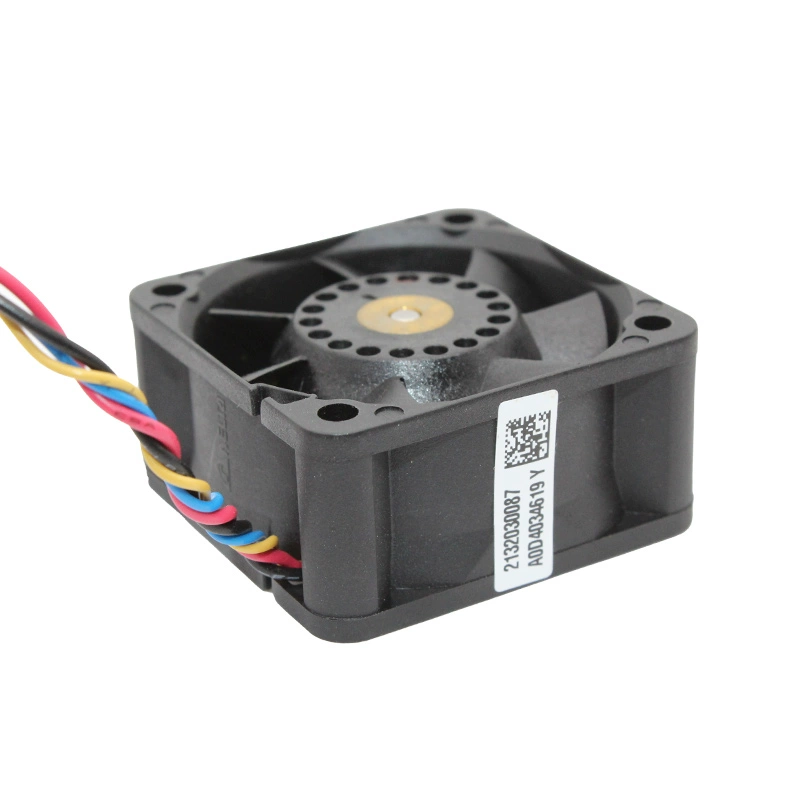

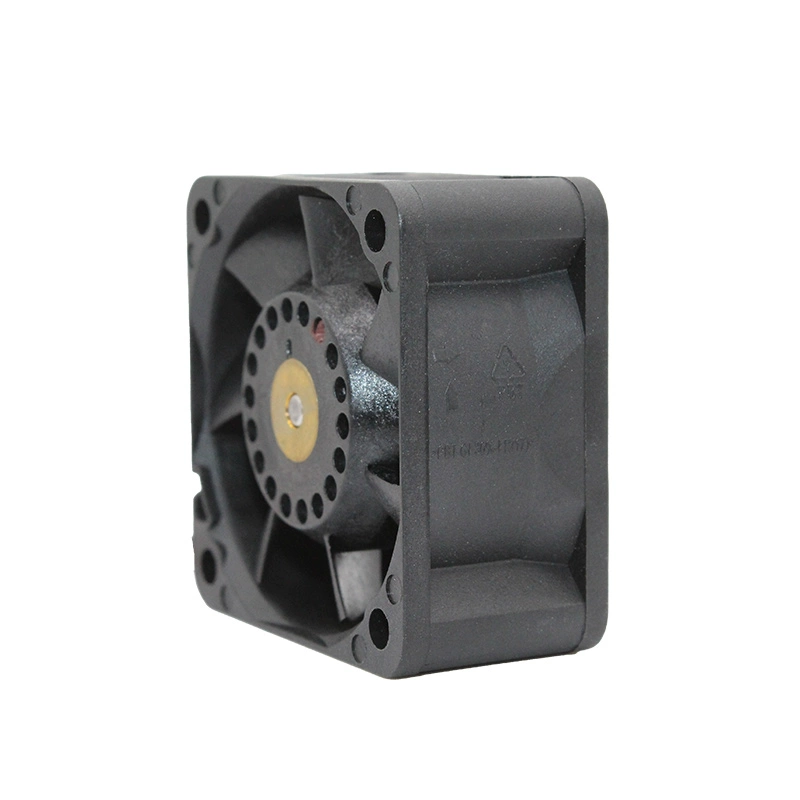

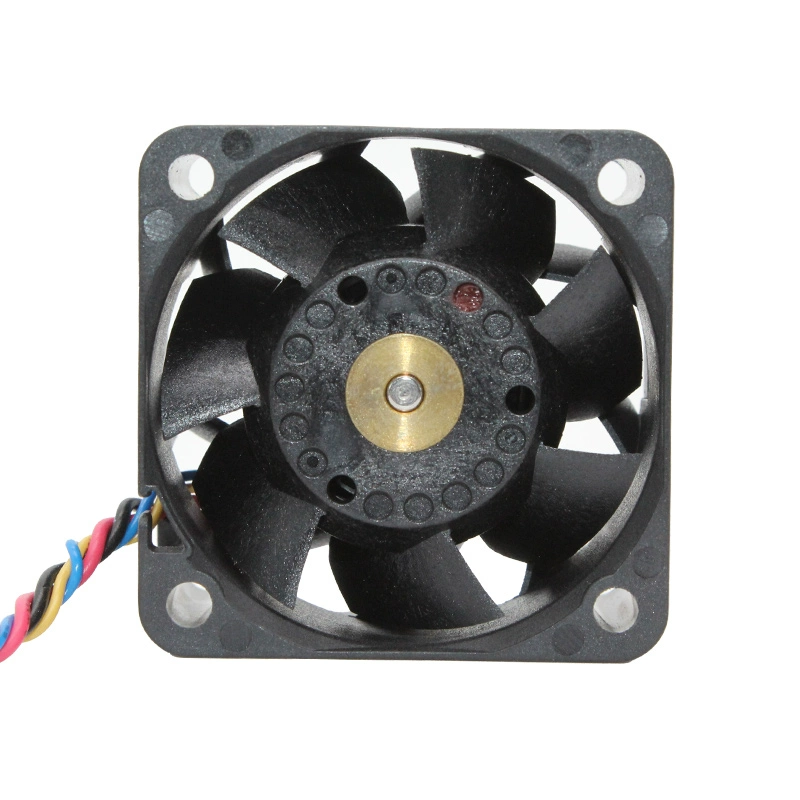

The Delta TAA0412CD-BD1A is a high-performance 12V DC axial cooling fan from Delta Electronics, Inc., measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.60A (7.20W), this fan is engineered for aggressive thermal management in compact electronic systems. It achieves a very high speed of 13000 RPM, delivering 16.5 CFM of airflow and a significant static pressure of 1.075 inch-H2O, making it highly effective at cooling components in restrictive environments. Equipped with durable dual ball bearings, it ensures a long operational life of 80,000 to 100,000 hours. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time monitoring of fan status, along with auto-restart and polarity protection, making it a robust solution for demanding applications despite its high noise level of 54.5 dBA.
Model Number: TAA0412CD-BD1A
Manufacturer: Delta Electronics, Inc.
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12V DC
Rated Current: 0.60A
Rated Power: 7.20W
Speed: 13000 RPM
Airflow: 16.5 CFM / 0.47 m³/min
Static Pressure: 1.075 inch-H2O / 267.5 Pa
Noise Level: 54.5 dBA
Connector: 4-Wire Leads
Bearing Type: Dual Ball Bearing
Life Expectancy: 80,000 to 100,000 hours
Operating Temperature: Not explicitly specified, but typically -10°C to 70°C for Delta fans.
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor (Tachometer Output), Auto Restart, Polarity Protection
