Description
Model Number: THB1348BE
Manufacturer: Delta Electronics
Series: THB Series
Fan Type: DC Brushless Axial Fan
Dimensions (Diameter x Depth): 130 mm x 38 mm (often referred to as 13038 size)
Rated Voltage: 48 VDC
Rated Current: 1.30 A
Input Power: 62.4 W (Calculated from 48V * 1.30A)

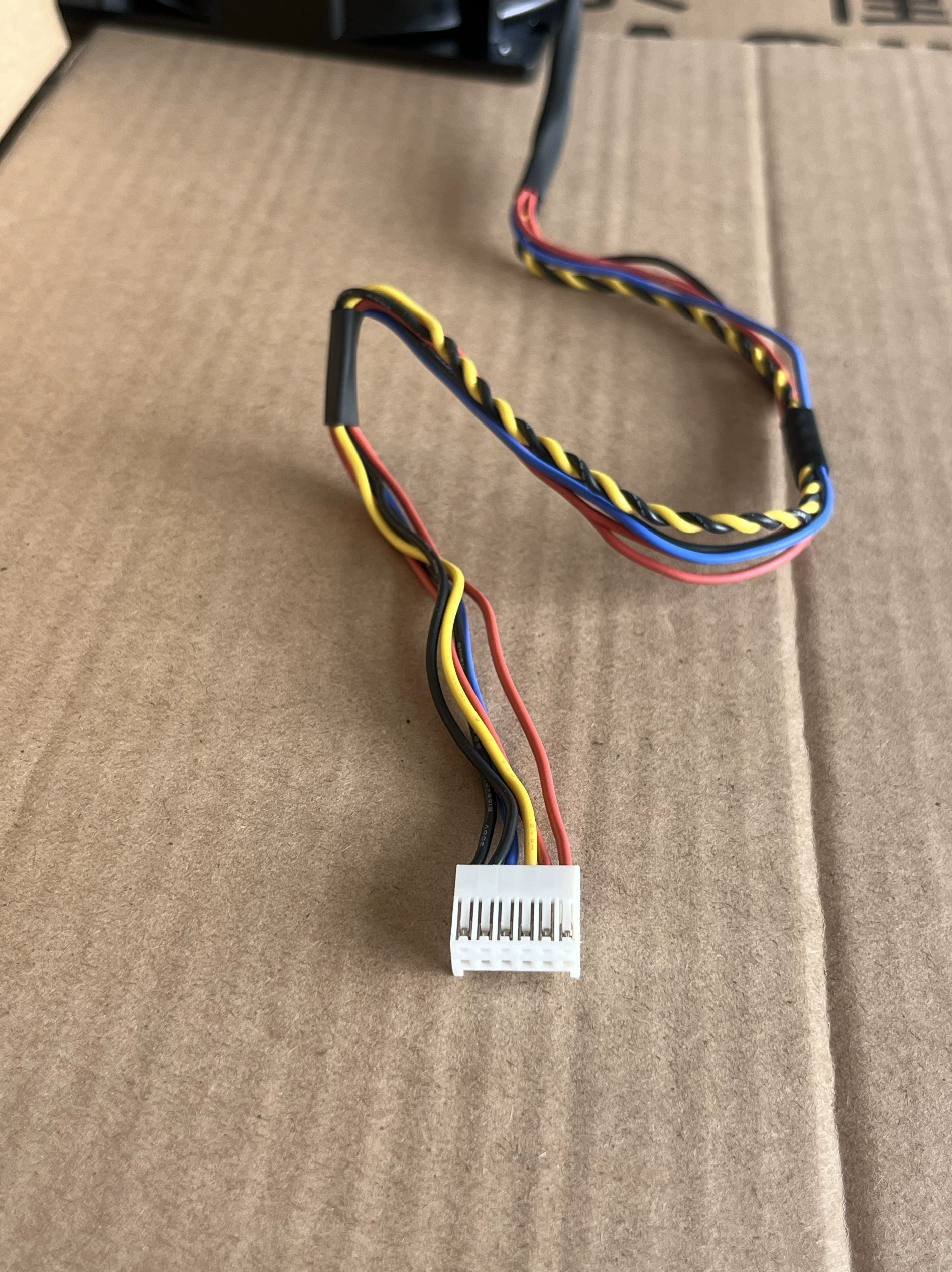

Wiring: 4 Lead Wires (Positive, Negative, Speed Sensor (Tachometer), PWM Control)
Bearing Type: Ball Bearing
Rotational Speed (RPM): Approximately 6000-7000 RPM (Specific RPM can vary slightly by exact variant, but typically very high for this size/power)
Maximum Airflow: Approximately 220-250 CFM (Specific CFM can vary, but it’s designed for high airflow)
Maximum Static Pressure: Designed for very high static pressure, often in the range of 1.5 – 2.0 in H2O
Noise Level: High, typically in the range of 60-70 dB(A) due to its high performance
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Sensor/Control: Speed Sensor (Tachometer output), PWM Control
Protection Functions: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 hours at 40°C
Safety Approvals: UL, CSA, CE
Mass: Approximately 450 g

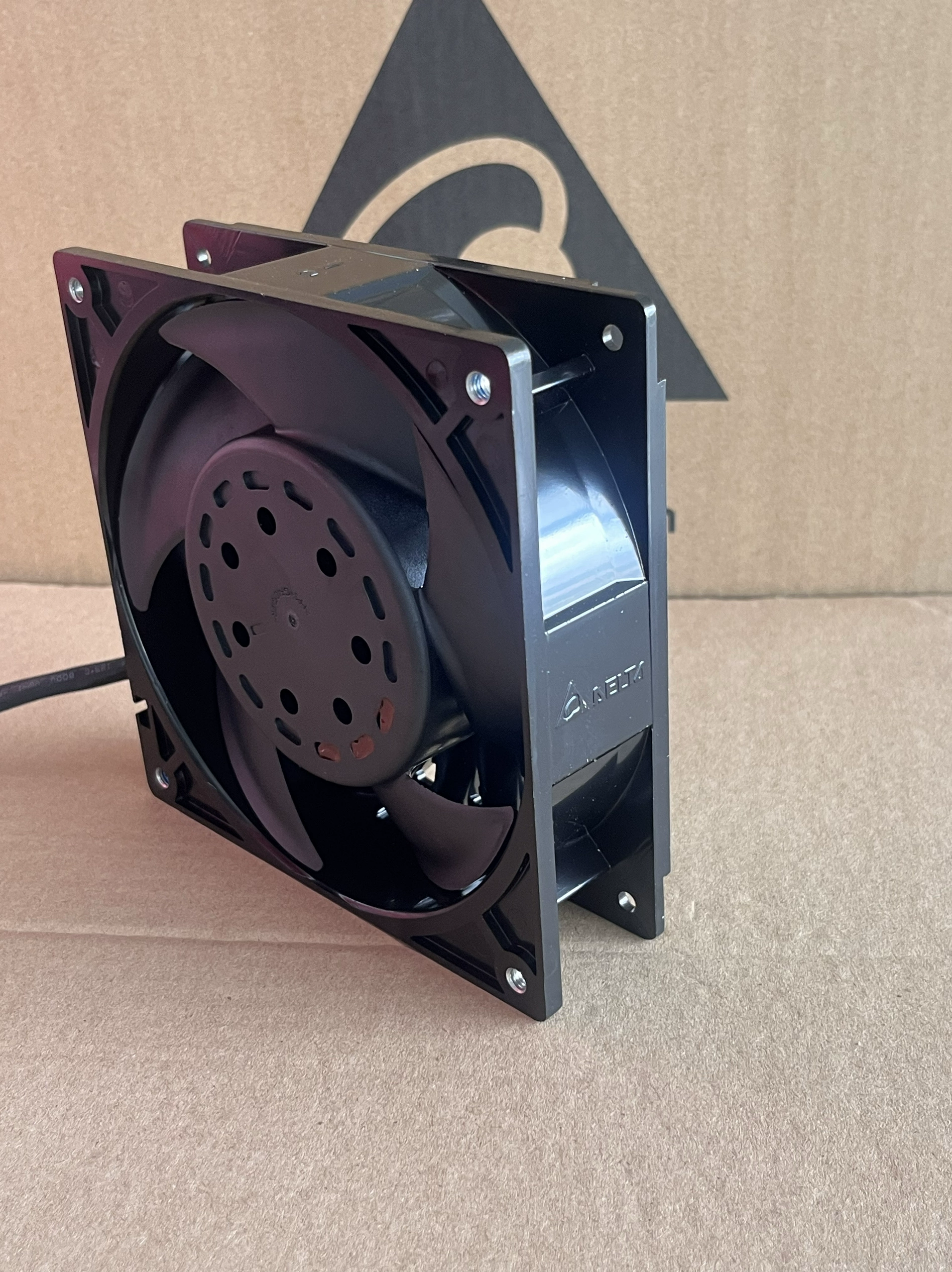

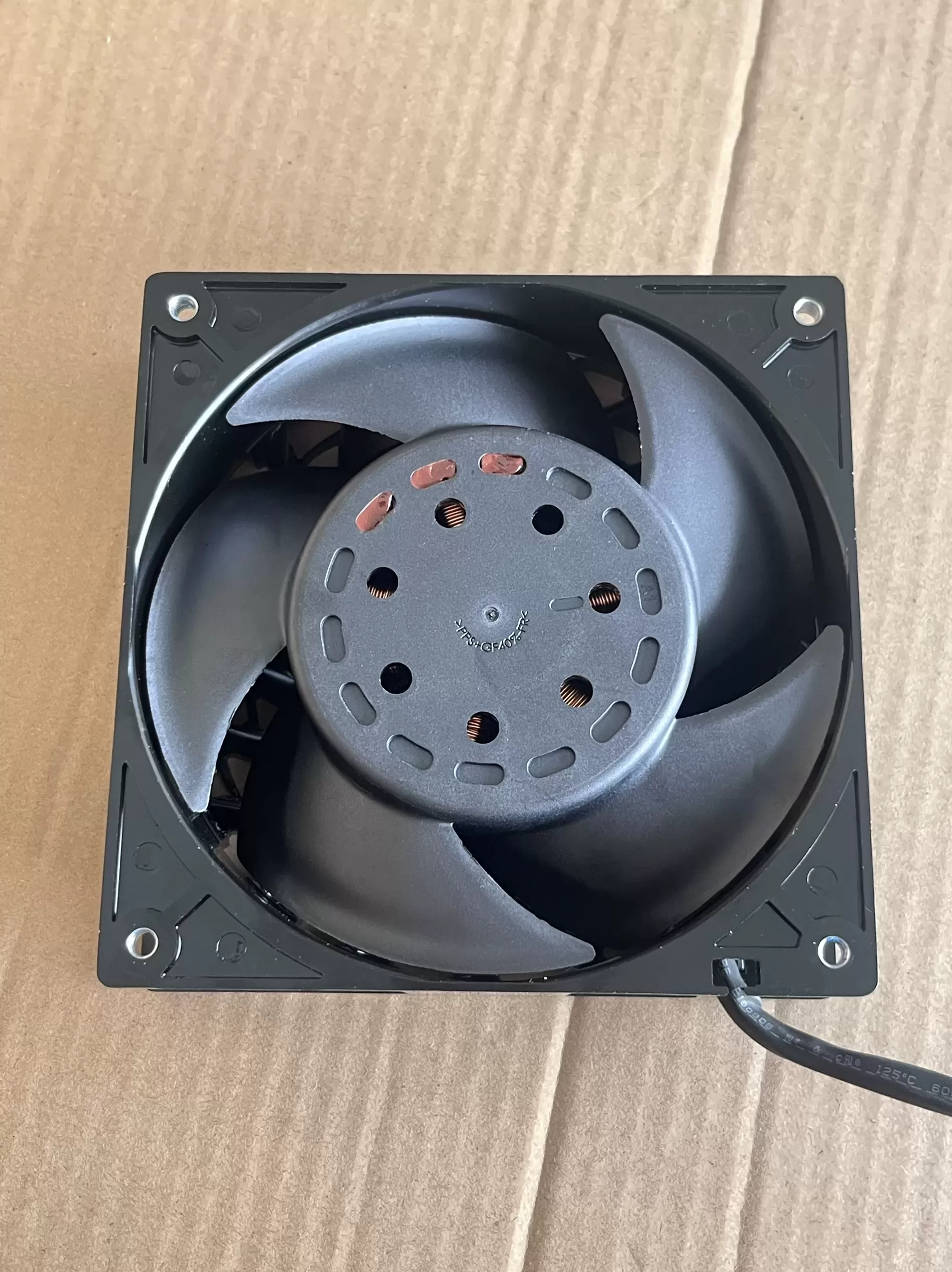

Delta 13538 original authentic cooling violent fan 48V/13A metal frame THB1348BE
The Delta THB1348BE is an extremely powerful 130x38mm DC axial fan from Delta Electronics, engineered for aggressive cooling in demanding industrial and server environments. Operating on 48VDC with a substantial 1.30A current draw and 62.4W of power, it features durable ball bearings and delivers very high airflow and static pressure at high RPMs. This fan’s 4-wire configuration includes both a speed sensor for real-time monitoring and PWM control for precise speed regulation, along with essential locked rotor and reverse polarity protection. With a robust design and a long expected lifespan, the THB1348BE is an ideal solution for critical thermal management where maximum cooling performance and reliability are paramount.
