Description

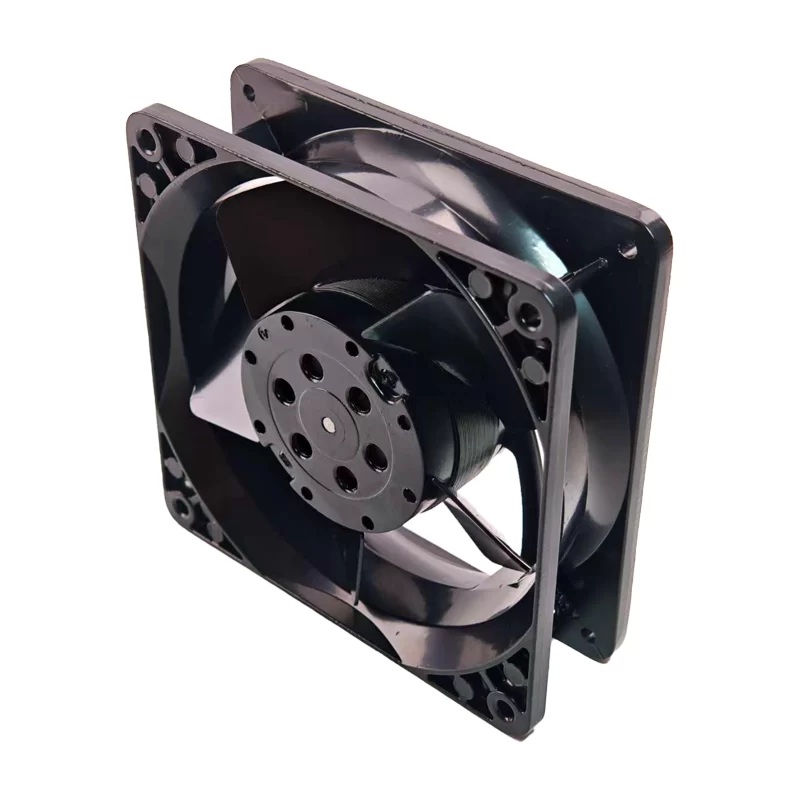

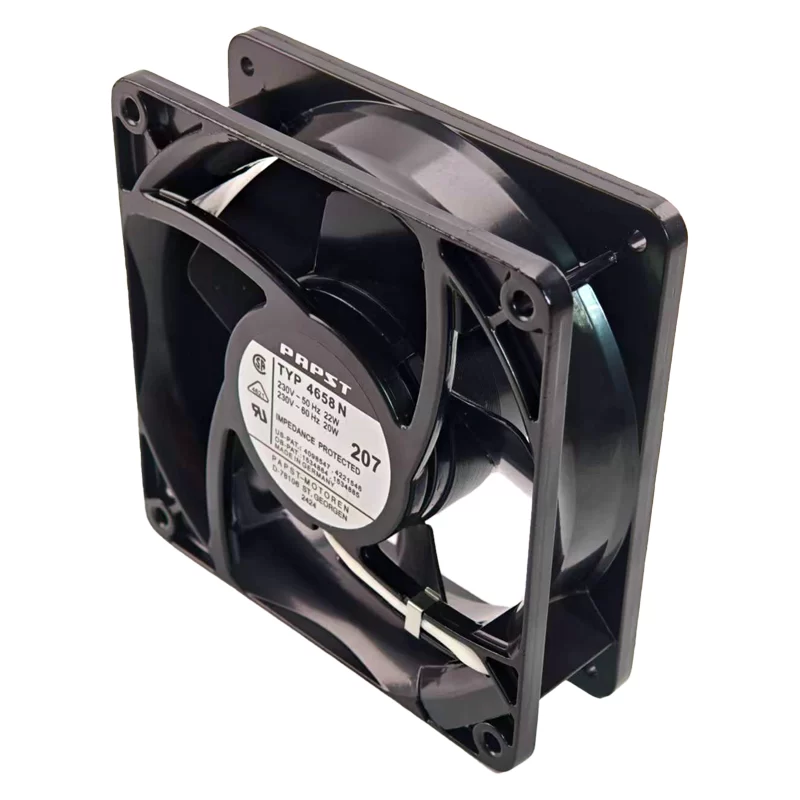

The ebmpapst TYP4658N is an AC axial fan measuring 119mm x 119mm x 38mm. It operates on 230 VAC at both 50 Hz and 60 Hz frequencies. At 50 Hz, it consumes 22W of power, and at 60 Hz, it consumes 20W. This fan has a speed of 2950 RPM and provides an airflow of 153 m³/h (equivalent to 94.2 to 100 CFM), with a noise level of 47 to 48 dB(A). It is equipped with ball bearings for durable operation and often features plug contacts for termination. It weighs 0.55 kg and is constructed with a metal housing. This fan is designed for reliable heat dissipation and is used in various electronic systems and industrial applications.
TYP4658N Fan Parameters
Model: TYP4658N
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Power Consumption (50Hz / 60Hz): 22 W / 20 W
Speed: 2950 RPM
Airflow: 153 m³/h (94.2 – 100 CFM)
Noise Level: 47 – 48 dB(A)
Bearing Type: Ball Bearing
Termination: Plug Contacts (3 x 0.5 mm)
Weight: 0.55 kg
Frame Material: Metal
Operating Temperature: -40°C to +85°C
Life Expectancy: Not specified
Features: Robust design, durable bearing system.
Application: Electronic cooling, industrial control cabinets, power supplies, various ventilation systems.
