Description

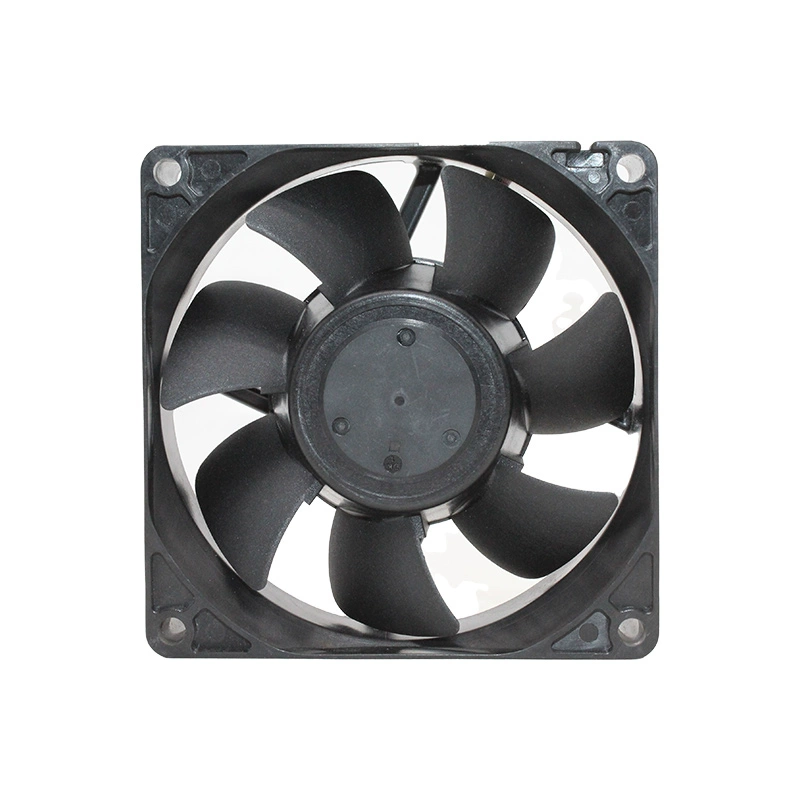

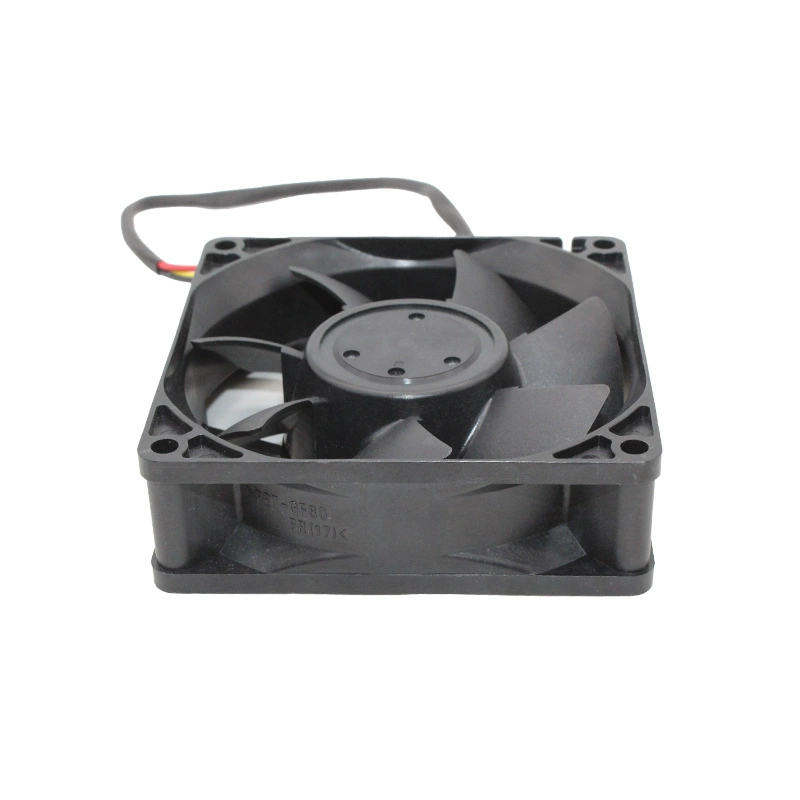

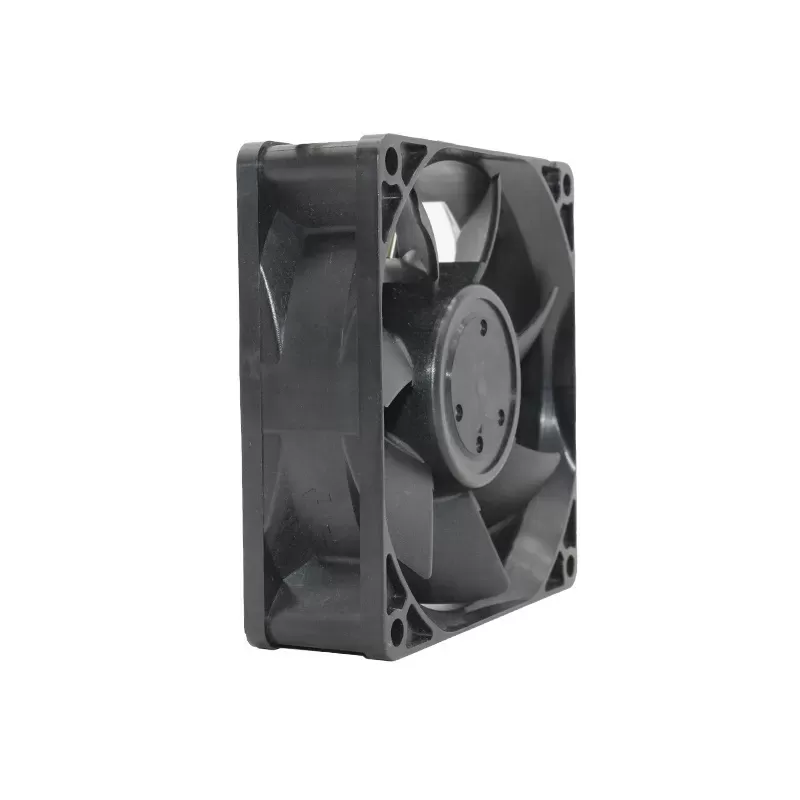

The Nidec U80T12BS2AA7-52Z35 is a quiet and efficient 12V DC axial cooling fan, measuring 80x80x25mm. Operating at a low rated current of 0.15A (1.8W), this fan is designed for applications where low noise and reliable, consistent airflow are critical. It achieves a speed of 2400 RPM, providing 30 CFM of airflow with a low noise level of 24.4 dBA, making it suitable for noise-sensitive environments such as PCs, consumer electronics, or small appliances. The fan uses a Ball Bearing for improved reliability and a longer lifespan, rated at 30,000 hours at 40°C. It typically comes with 3-wire leads, including a speed sensor for monitoring its operational status.
Model Number: U80T12BS2AA7-52Z35
Manufacturer: Nidec Corporation
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Rated Current: 0.15A
Rated Power: 1.8W
Speed: 2400 RPM
Airflow: 30 CFM / 0.85 m³/min
Static Pressure: 0.08 – 0.10 inch-H2O / 20-25 Pa
Noise Level: 24.4 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 30,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Polarity Protection, Auto Restart, Speed Sensor
