Description

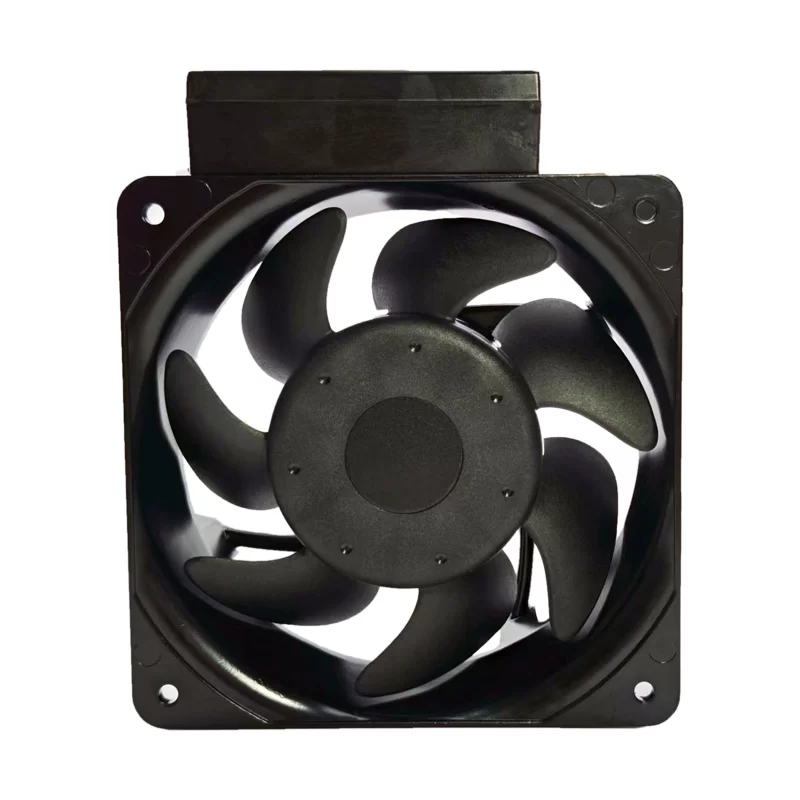

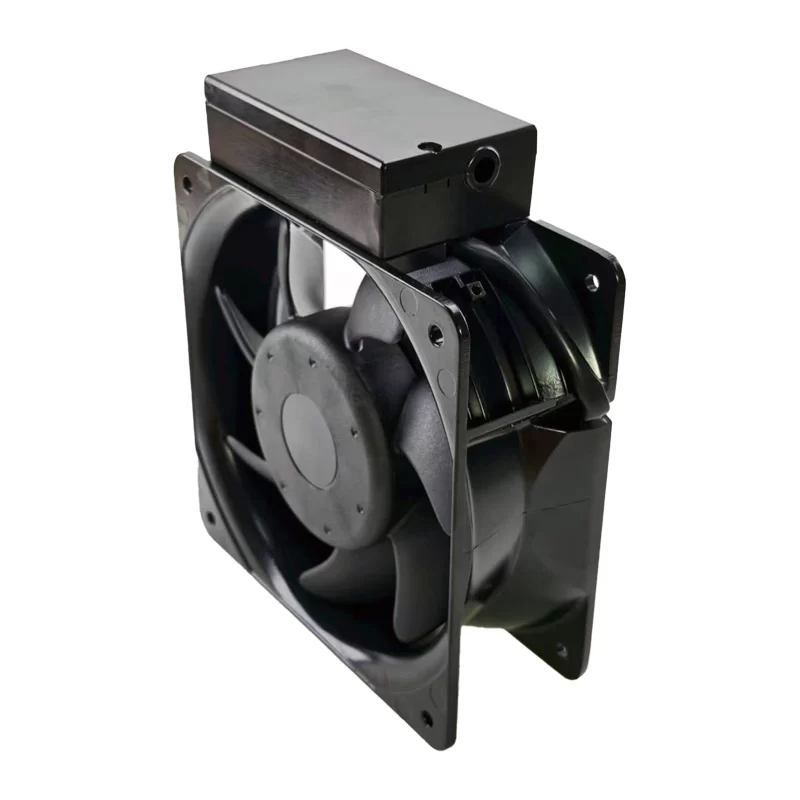

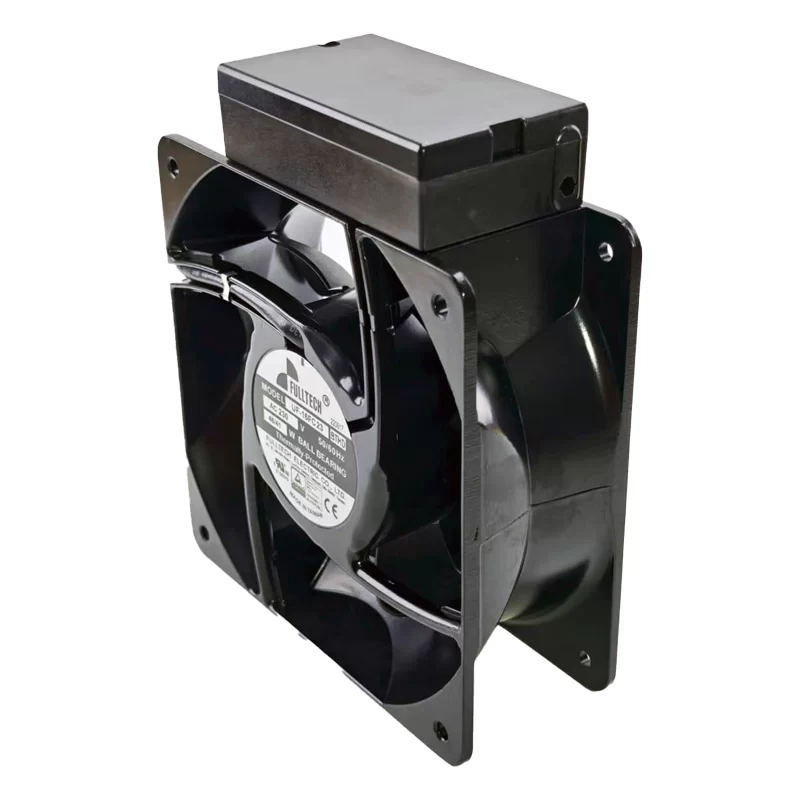

The Fulltech UF-16FC23 BTHD is an AC Centrifugal Fan measuring 160x160x55mm with a weight of 1300g. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it consumes 46W of power and achieves a speed of 3400 RPM, providing an airflow of 265 CFM and a static pressure of 179.3 Pa. When running at 60Hz, the power is 41W, the speed reaches 3400 RPM, with an airflow of 265 CFM and a static pressure of 179.3 Pa. The fan has a noise level of 56 dB(A) and features a durable ball bearing system, die-cast aluminum housing, and a plastic impeller, making it a reliable solution for various cooling and ventilation applications.
UF-16FC23 BTHD Fan Parameters
Model: UF-16FC23 BTHD
Manufacturer: Fulltech
Type: AC Centrifugal Fan
Dimensions: 160 x 160 x 55 mm
Weight: 1300 g
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Bearing Type: Ball Bearing
Termination: Lead wires
Housing Material: Die-cast aluminum
Impeller Material: Plastic
Noise Level: 56 dB(A)
Current Draw: 0.18 A
Fan Speed: 3400 RPM
Airflow: 265 CFM
Static Pressure: 179.3 Pa
Power Input: 46 W (50Hz), 41 W (60Hz)
Application: Industrial machinery cooling, Air ventilation, HVAC systems
