Description

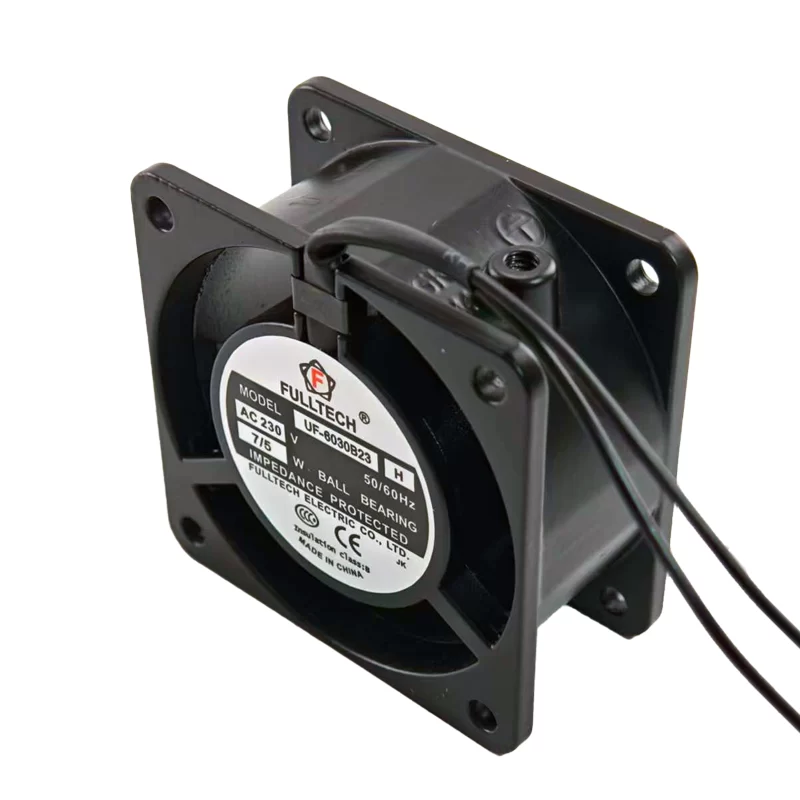

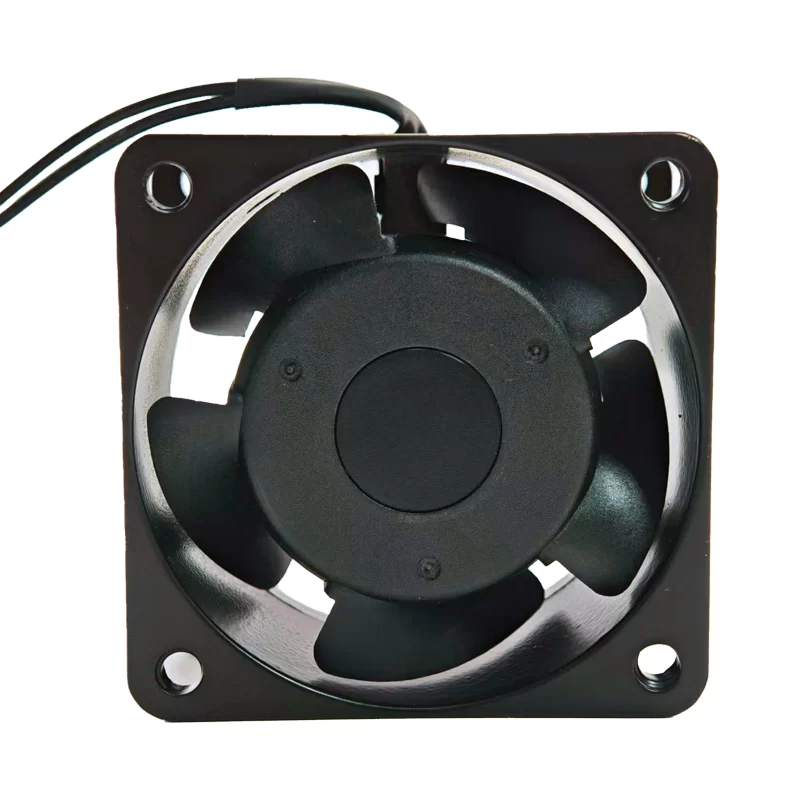

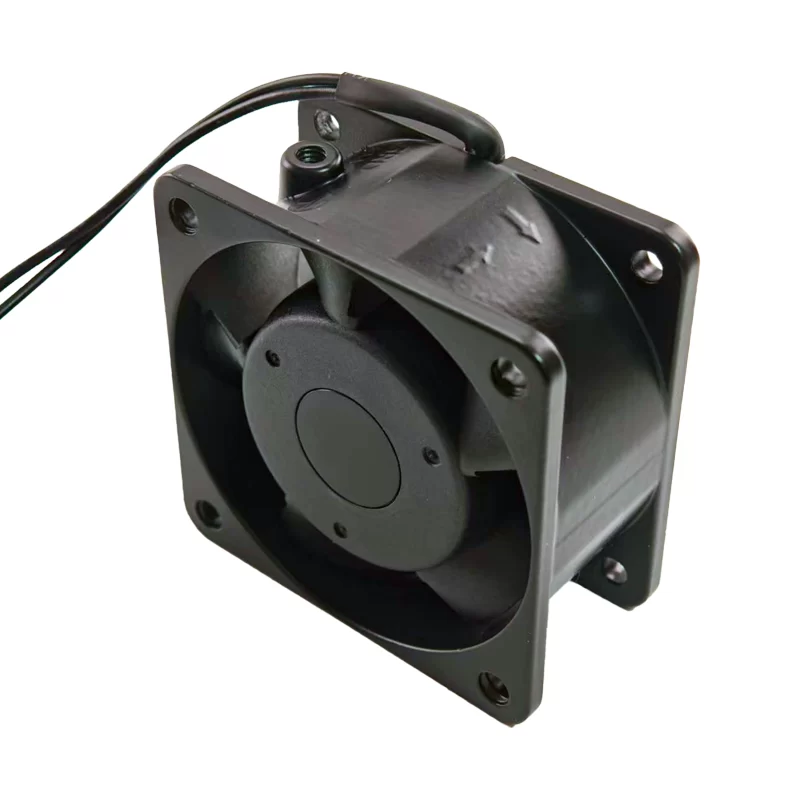

The Fulltech UF-6030B23H is a high-performance AC Axial Fan with dimensions of 60×60×30 mm. This dual-frequency model operates on 230 VAC at 50 Hz and 60 Hz. At 50 Hz, it provides an Airflow of 10.0 CFM (17.0 m3/h) at 2,800 RPM with 7 W Input Power. At 60 Hz, its performance increases to 13.0 CFM (22.1 m3/h) at 3,400 RPM with 5 W Input Power. It uses a durable Ball Bearing system and is designed for continuous cooling in industrial cabinets and equipment requiring compatibility with varying global AC power frequencies.
UF-6030B23H Fan Parameters
Model: UF-6030B23H
Manufacturer: Fulltech
Type: AC Axial Fan
Dimensions: 60×60×30 mm
Motor Design: Shaded Pole Motor
Bearing Type: Ball Bearing
Rated Voltage: 230 VAC
Rated Frequency: 50/60 Hz
Rated Current (50/60 Hz): 0.05/0.04 A
Rated Input (50/60 Hz): 7/5 W
Rated Speed (50/60 Hz): 2,800/3,400 RPM
Airflow (50/60 Hz): 10.0/13.0 CFM (17.0/22.1 m3/h)
Static Pressure (50/60 Hz): 0.10/0.15 inAq (24.9/37.4 Pa)
Noise Level (50/60 Hz): 30/33 dB/A
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic (UL94V-0)
Termination: Lead Wire
Life Expectancy: 40,000 h (at 40 ∘C)
Safety Approval: CUL, CE, TUV, UL/ETL
Application
The UF-6030B23H is suitable for forced air cooling in compact systems such as small power supplies, lighting fixtures， and control cabinets. Its robust construction and dual-frequency capability make it a flexible solution for international machinery and equipment export.
