Description

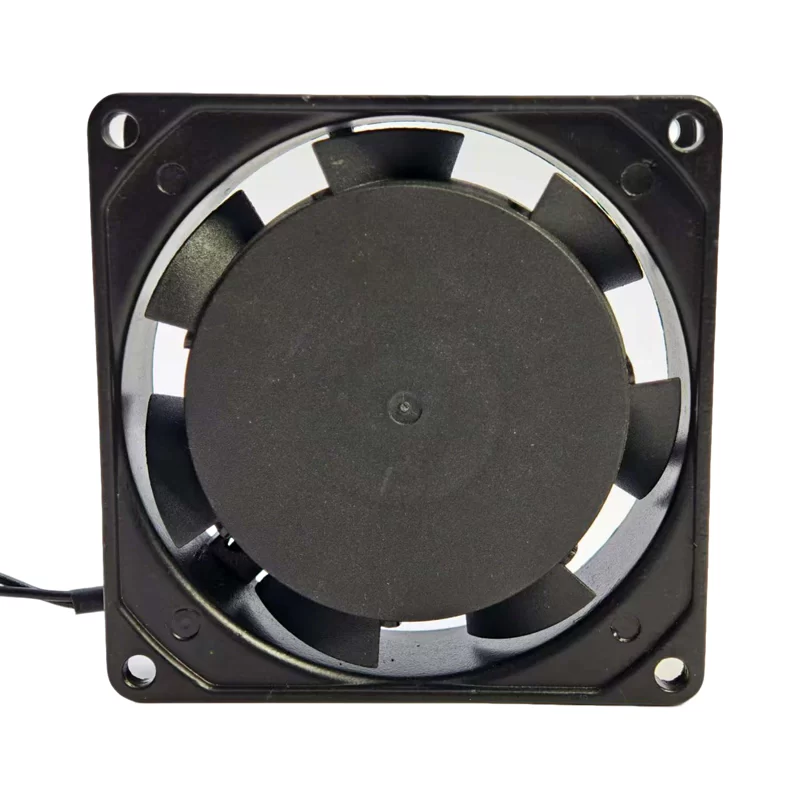

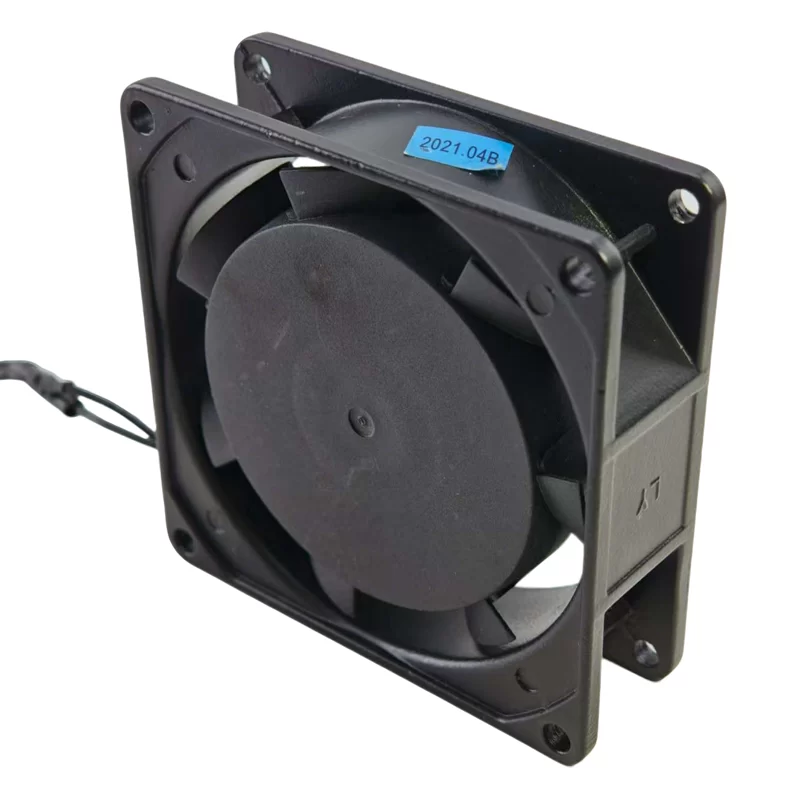

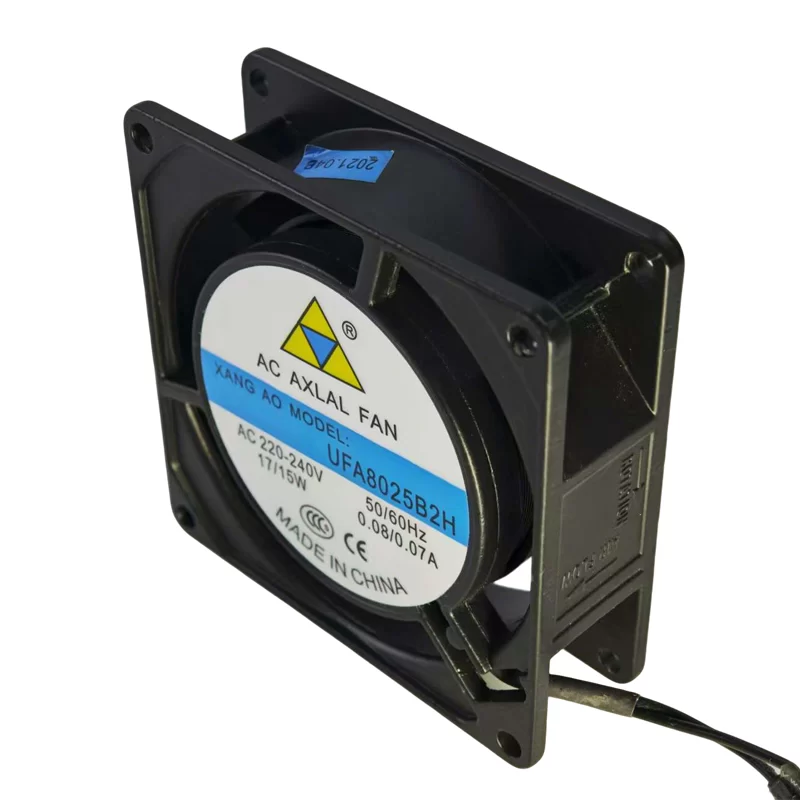

The XA-CQJ UFA8025B2H is a 220-240VAC AC axial fan measuring 80x80x25mm. It’s designed for operation at two frequencies, 50Hz and 60Hz, with current draw and power consumption varying accordingly. At 50Hz, it draws 0.08A of current and consumes 17W of power. When running at 60Hz, it draws 0.07A of current and consumes 15W of power. This fan uses durable ball bearings, features plastic housing and impeller, and is terminated with two wire leads. It’s ideal for general cooling and ventilation in various electronic equipment and small enclosures requiring 220-240V AC power.
UFA8025B2H Fan Parameters
Manufacturer: XA-CQJ
Model: UFA8025B2H
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50 Hz / 60 Hz
Performance at 50 Hz:
Current Rating: 0.08 A
Power Consumption: 17 W
Performance at 60 Hz:
Current Rating: 0.07 A
Power Consumption: 15 W
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Application: This XA-CQJ AC axial fan is suitable for general cooling and ventilation in various electronic equipment and small enclosures requiring 220-240V AC power.
