Description

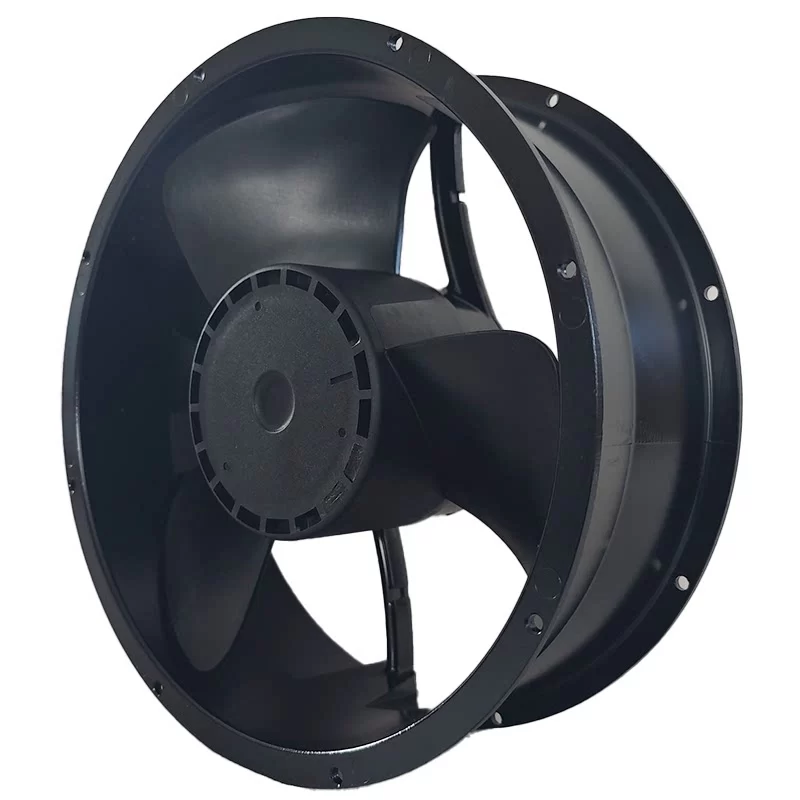

The Fulltech UFT25GBPB23H1D8AN is a high-performance ATEX-certified 230 VAC AC Axial Fan with dimensions of 254 x 89 x 254 mm, specifically engineered for demanding thermal management in explosion-proof energy storage cabinets and industrial frequency converters. Driven by a robust single-phase capacitor-run external rotor motor with a power consumption of 75.0 W and a nominal current of 0.6 A at 230 VAC, this precision unit operates at a rated speed of 1750 RPM, delivering a powerful airflow of 812.0 CFM for efficient heat extraction in hazardous environments. Constructed with a ruggedized spark-resistant die-cast aluminum housing and a high-strength 3-blade impeller system featuring high-precision ball bearings and a 2-wire electrical interface, this 2.1 kg unit provides a dependable and energy-efficient air-moving solution with ATEX explosion protection and IP54 rating, ensuring maximum cooling performance and long-term mechanical stability for high-power energy storage systems (ESS), variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
UFT25GBPB23H1D8AN Fan Parameters
Model Number: UFT25GBPB23H1D8AN
Manufacturer: Fulltech
Series: UFT ATEX Series
Type: AC Axial Fan (Explosion-proof)
Dimensions: 254 x 89 x 254 mm
Weight: 2.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 207 – 253 VAC
Frequency: 50 / 60 Hz
Power Consumption: 75.0 W
Nominal Current: 0.6 A
Speed: 1750 RPM
Max. Air Flow: 812.0 CFM (1380.0 m³/h / 23.0 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Explosion Protection: ATEX Certified
Insulation Class: Class B
Electrical Hookup: 2-wire leads
Number of Blades: 3
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: “V” (Exhaust over struts)
Housing Material: Die-cast aluminum (Spark-resistant)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Installation Position: Any
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Degree of Protection: IP54
Standard Compliance: EN 60079-0; EN 60079-15; CE
Approval Agency: ATEX; UL; TUV; CE
Application
The Fulltech UFT25GBPB23H1D8AN AC fan is primarily utilized in explosion-proof energy storage cabinets, industrial frequency converters, and electrical control cabinet heat dissipation systems.
