Description

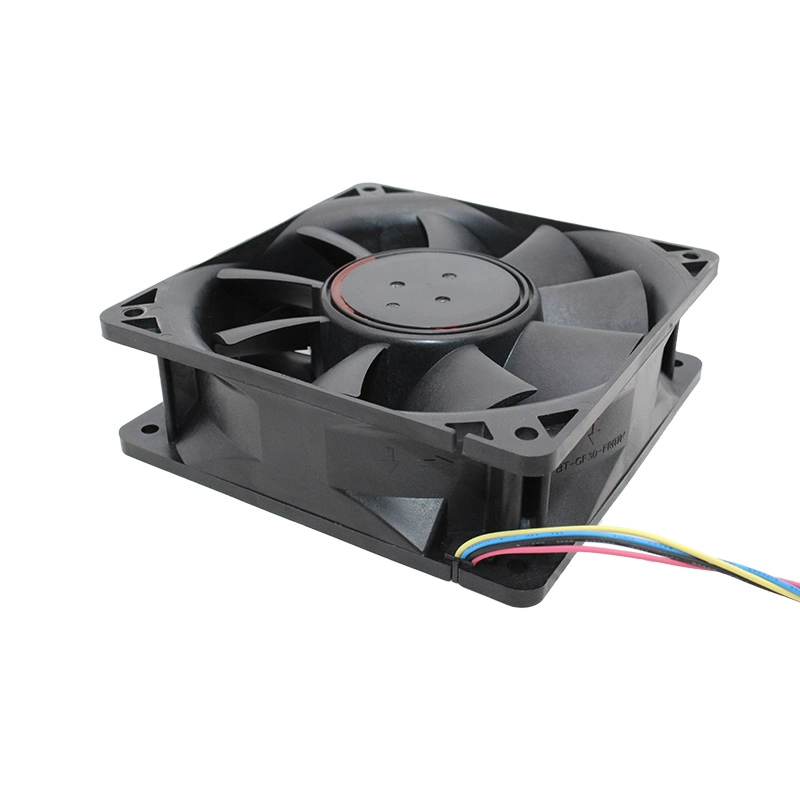

V12E24BS8M9-07 12038 24V 3A Nidec Inverter Violent Cooling Fan 12cm
Model Number: V12E24BS8M9-07
Manufacturer: Nidec Corporation
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 120 mm x 120 mm x 38 mm
Rated Voltage: 24 VDC
Working Voltage Range: 20.2 VDC to 25.8 VDC
Rated Current: 3.0 A
Input Power: 72 W
Wiring: 4 Wire Leads
Bearing Type: Long Life Double Ball Bearings
Rotational Speed RPM: 5300 RPM
Maximum Airflow: 224 CFM
Noise Level: 66 dBA
Frame Material: Unspecified, typically plastic or metal
Impeller Blade Material: Unspecified, typically plastic
Control Function: Supports PWM speed control
Speed Measurement: Supports speed measurement
Application: Server cooling, high-performance computing, industrial inverters, violent cooling fan
The Nidec V12E24BS8M9-07 is an extremely powerful 120x120x38mm DC axial fan engineered for aggressive thermal management in demanding environments. Operating on 24VDC, it draws a significant 3.0A of current, resulting in 72W of power consumption. This fan features long life double ball bearings for enhanced durability and reliability. It delivers a substantial airflow of 224 CFM at a high rotational speed of 5300 RPM, with a noise level of 66 dBA. Its 4-wire connection supports both PWM speed control for precise airflow adjustment and speed measurement, making it an ideal solution for critical applications such as server cooling, data centers, and industrial systems where high air volume and reliable performance are paramount.
