Description

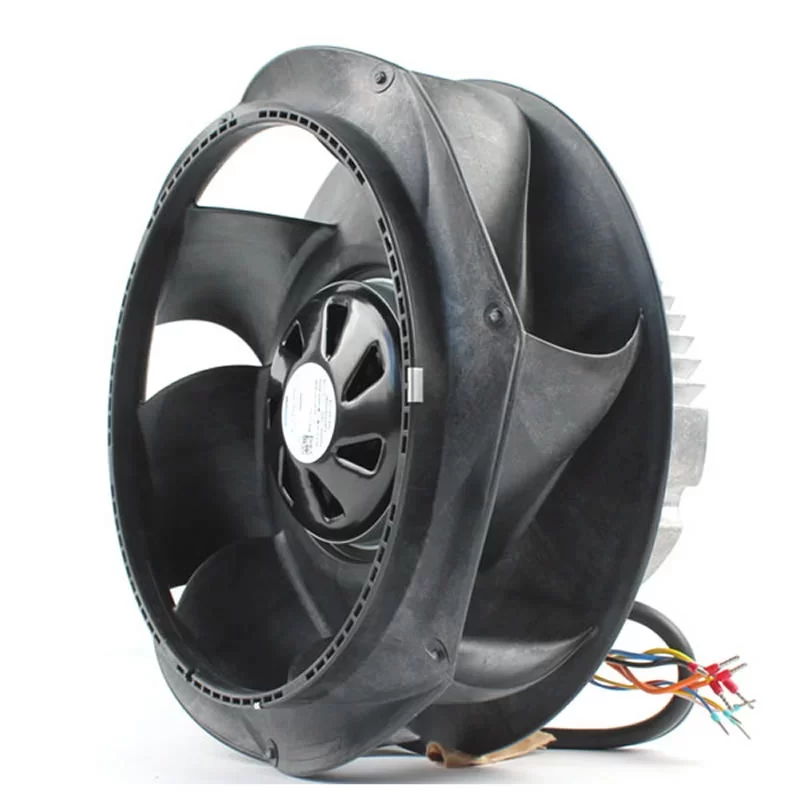

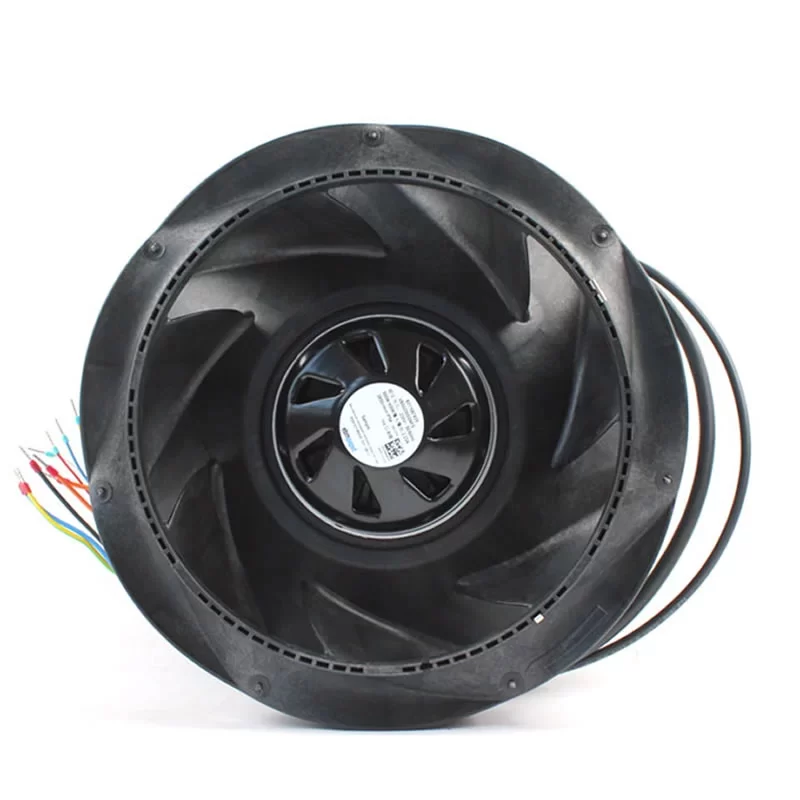

The ebmpapst VBS0250SSNFS 8317087435 is a high-performance AC Centrifugal Fan with a nominal diameter of 250 mm. It is powered by a single-phase 230 V supply operating at 50/60 Hz. The fan delivers robust performance, reaching a Nominal Speed of 3,850 RPM, with a Power Consumption of 500 W and a Current Draw of 2.23 A. It is capable of achieving a Max. Static Pressure of 200 Pa and holds an IP54 protection rating, making it suitable for ducted applications in demanding industrial ventilation, HVAC, and commercial air handling systems.

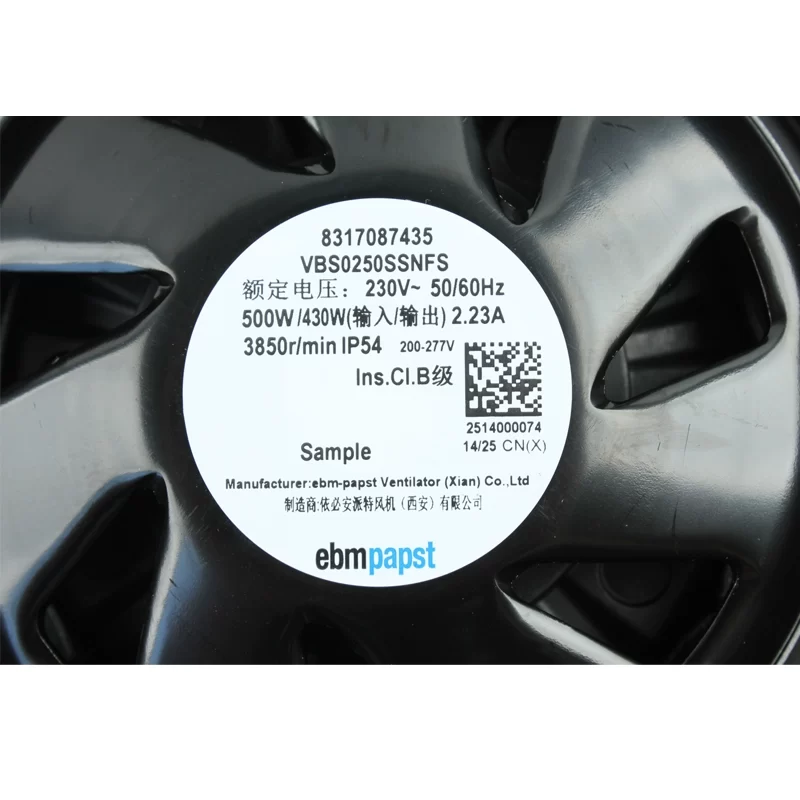

Fan Parameters
Manufacturer: ebmpapst
Model: VBS0250SSNFS
Part No.: 8317087435
Type: AC Centrifugal Fan
AC/DC: AC
Phase: 1~
Voltage: 230 V
Frequency: 50/60 Hz
Power Consumption: 500 W
Current: 2.23 A
Nominal Speed: 3,850 RPM
Max. Static Pressure: 200 Pa
Dimensions: 250 mm (Diameter)
Protection: IP54
Application
Ducted ventilation systems, centralized air handling units (AHUs), commercial kitchen exhaust, and high-pressure-demand industrial air processing.
