Description

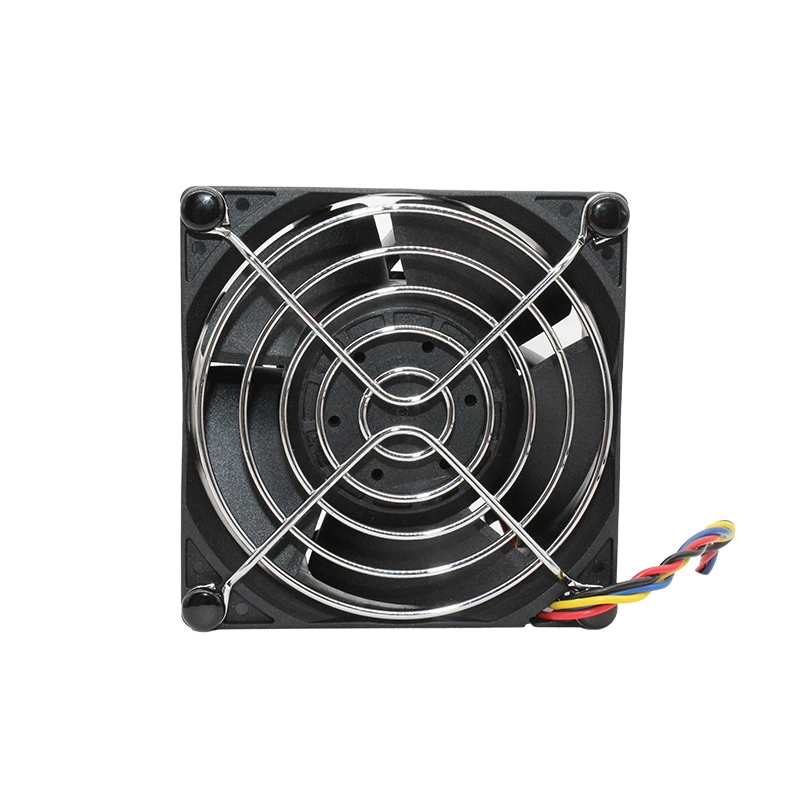

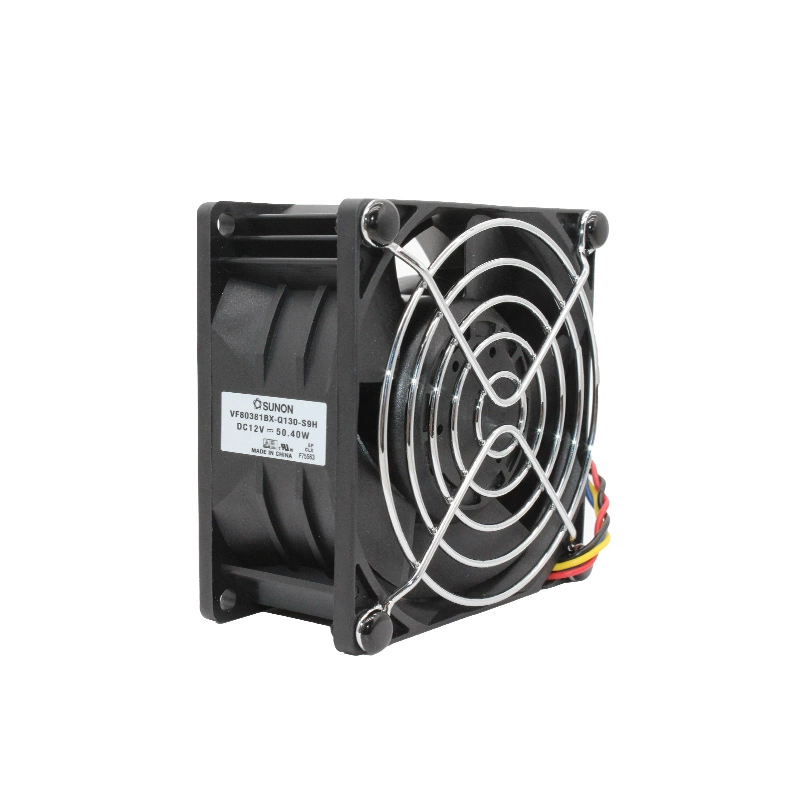

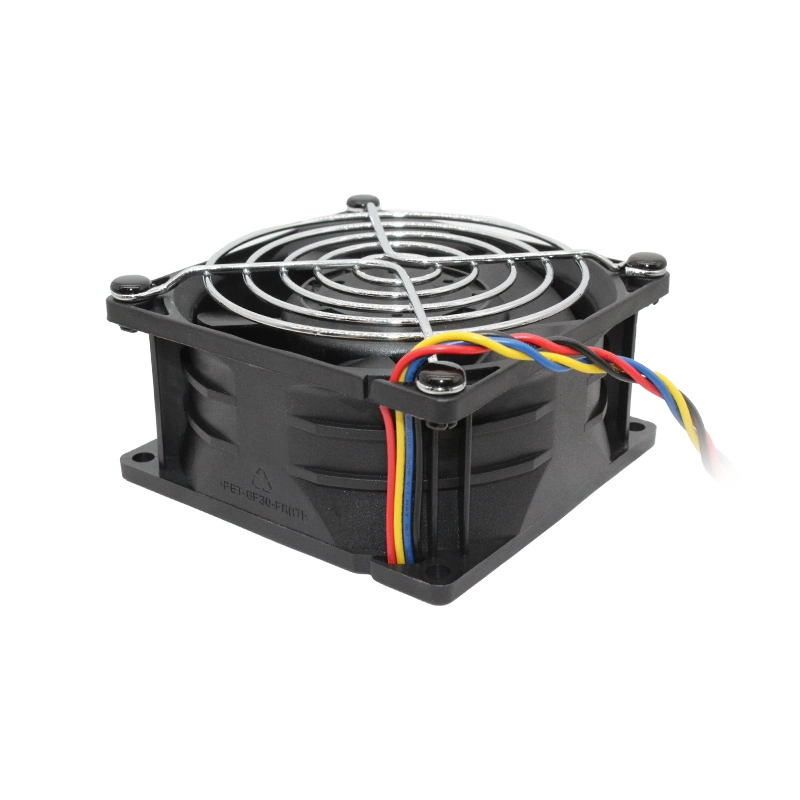

The Sunon VF80381BX-Q130-S9H is an extremely high-performance 12V DC axial cooling fan from Sunon, measuring 80mm x 80mm x 38mm. Operating at a formidable rated current of 4.20A (50.40W), this fan is engineered for severe thermal management challenges. It achieves an impressive speed of 15,000 RPM, generating an exceptional airflow of 142 CFM and a very high static pressure of 1.83 inch-H2O, making it highly effective at cooling components in restrictive environments. Equipped with durable ball bearings, it boasts an extended operational life of 100,000 hours. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a tachometer output for real-time monitoring of fan status, making it an indispensable solution for demanding server systems, high-power industrial equipment, and other applications where maximum cooling performance is critical, despite its high noise level of 72 dBA.
Model Number: VF80381BX-Q130-S9H
Manufacturer: Sunon
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12V DC
Rated Current: 4.20A
Rated Power: 50.40W
Speed: 15,000 RPM
Airflow: 142 CFM / 4.02 m³/min
Static Pressure: 1.83 inch-H2O / 456 Pa
Noise Level: 72 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Tachometer Output, Auto Restart, Polarity Protection
