Description

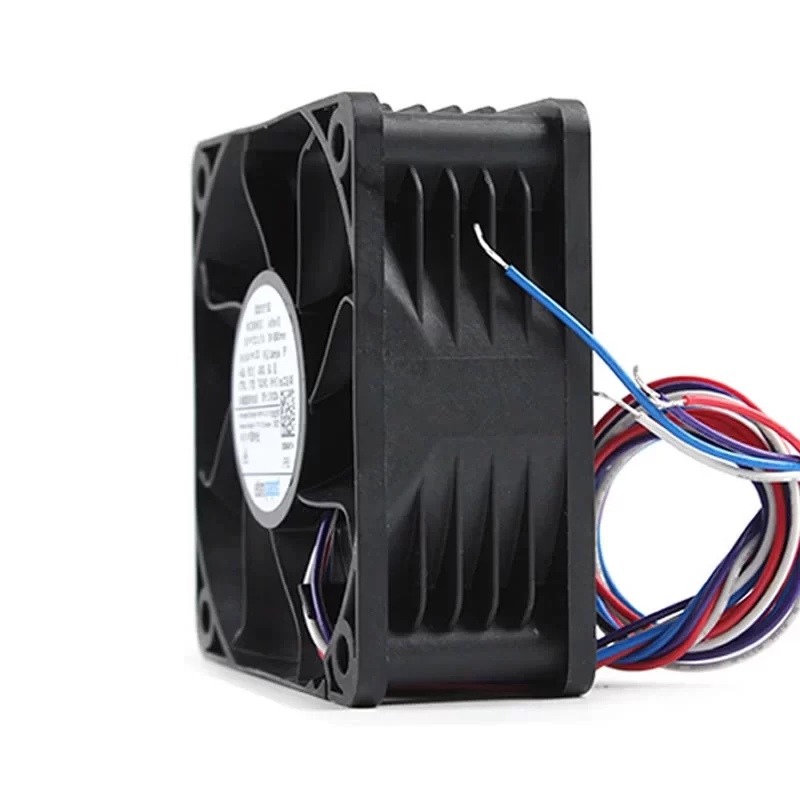

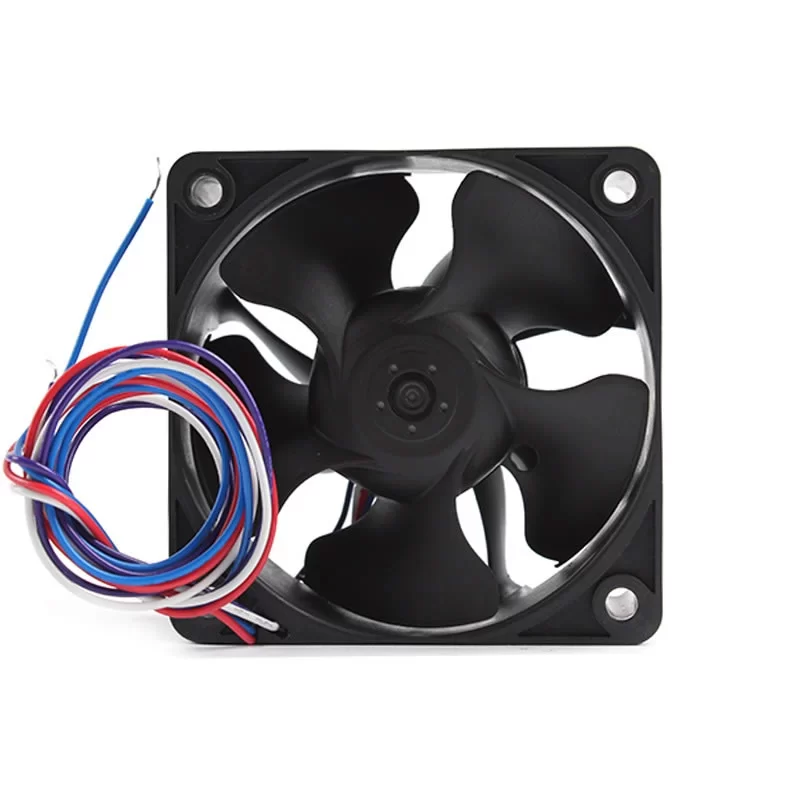

The ebmpapst VWCD060WHDGS (P/N: 8300101153) is a specialized industrial-grade DC Axial Fan featuring IP68 protection for extreme environments. Operating on 12 V DC with a low power consumption of 2.0 W, this fan delivers an effective airflow of 39 m³/h (22.95 CFM) at 6500 RPM and a static pressure of 50 Pa. It is optimized for high-efficiency cooling in applications requiring complete dust and moisture immunity.
VWCD060WHDGS Fan Parameters
Model: VWCD060WHDGS
Part Number: 8300101153
Manufacturer: ebmpapst
Type: DC Axial Fan
Series: Specialized / High Static Pressure
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 6 V DC to 13.8 V DC
Rated Current: 0.17 A
Rated Power Consumption: 2.0 W
Speed: 6500 RPM
Max. Airflow (Free Air): 39 m³/h (22.95 CFM)
Max. Static Pressure: 50 Pa (0.20 inAq)
Noise Level: 43 dB(A)
Weight: 59 g
Protection Rating: IP68
Bearing Type: Ball Bearing
Motor Design: Electronically Commutated Motor
Termination: 4 Wire Leads
Housing Material: Die-cast Aluminum / High-Grade Plastic
Impeller Material: Glass Fiber Reinforced Plastic
Life Expectancy: 80000 h (at 40 °C)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 75 °C
Certifications: CE, UL, VDE
Application
The ebmpapst VWCD060WHDGS, with its IP68 rating, is specifically designed for use in harsh environments such as outdoor enclosures, maritime equipment, demanding industrial automation, and agricultural machinery. Its complete immunity to dust ingress and ability to withstand continuous submersion ensures reliable thermal management in environments where conventional fans would fail.
