Description

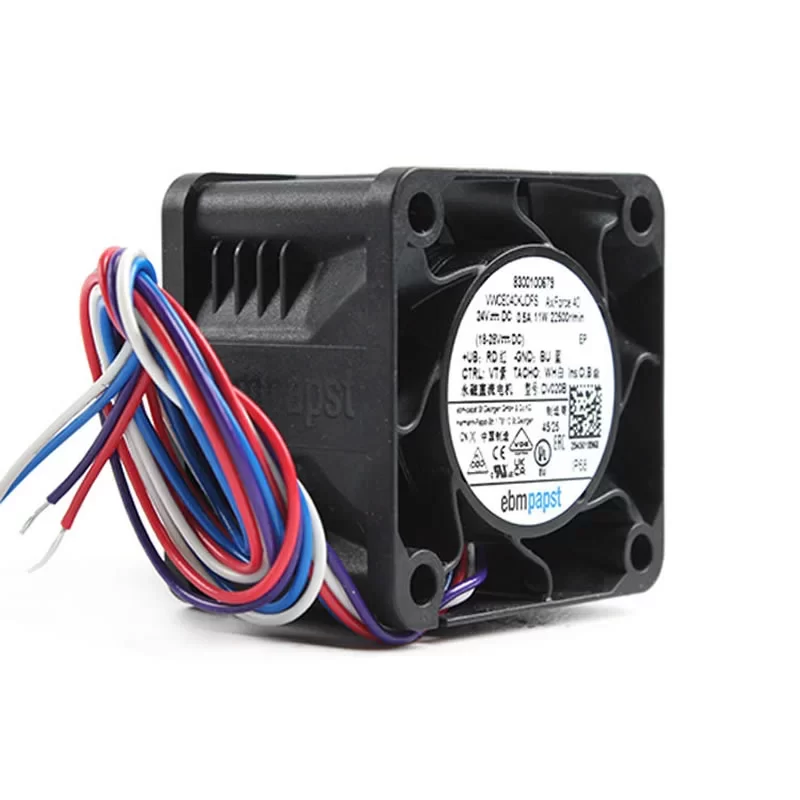

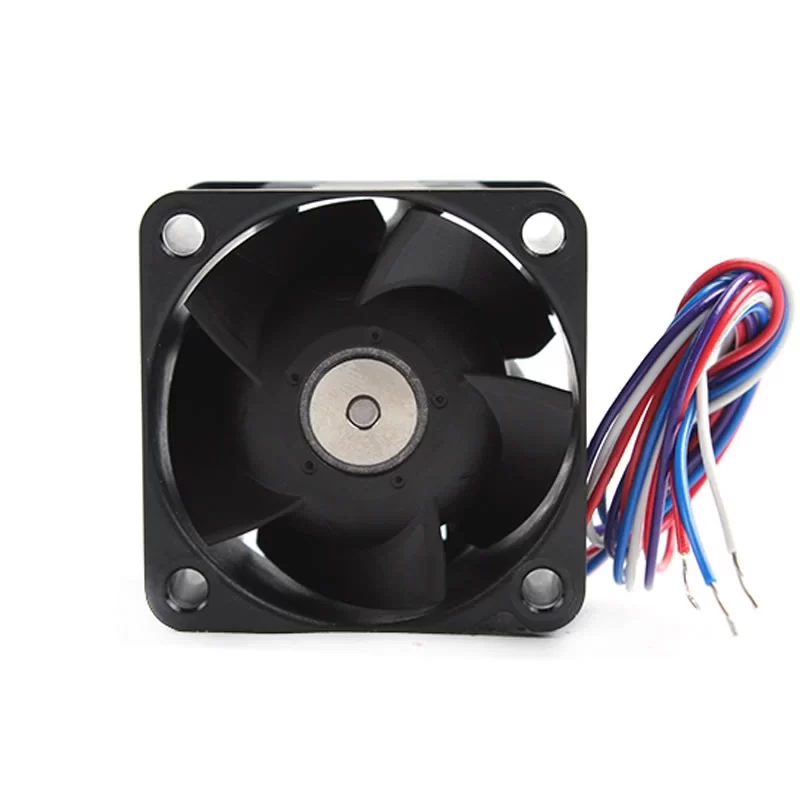

The ebmpapst VWCE040KJDFS (P/N: 8300100679) is a specialized, Extreme High Static Pressure DC Axial Fan featuring IP68 protection. Operating on 24 V DC with a high power consumption of 11.0 W, this fan achieves an incredible speed of 22500 RPM. It delivers an effective airflow of 31 m³/h (18.25 CFM) and an exceptional maximum static pressure of 410 Pa (1.64 inAq), making it critical for concentrated cooling in harsh, moisture-prone environments.
VWCE040KJDFS Fan Parameters
Model: VWCE040KJDFS
Part Number: 8300100679
Manufacturer: ebmpapst
Type: DC Axial Fan
Series: Specialized / Extreme High Static Pressure
Dimensions: 40 x 40 x 28 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 18 V DC to 28 V DC
Rated Current: 0.50 A
Rated Power Consumption: 11.0 W
Speed: 22500 RPM
Max. Airflow (Free Air): 31 m³/h (18.25 CFM)
Max. Static Pressure: 410 Pa (1.64 inAq)
Noise Level: 60 dB(A)
Weight: 54 g
Protection Rating: IP68
Bearing Type: Ball Bearing
Motor Design: Electronically Commutated Motor
Termination: 4 Wire Leads
Housing Material: High-Grade Plastic (PBT)
Impeller Material: Glass Fiber Reinforced Plastic
Life Expectancy: 80000 h (at 40 °C)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 75 °C
Certifications: CE, UL
Application
The ebmpapst VWCE040KJDFS is essential for thermal management in applications requiring both extreme cooling performance and environmental resilience. Its IP68 rating makes it perfectly suited for outdoor telecommunication infrastructure, industrial machinery, transportation systems, and any high-density electronics exposed to dust, splashing water, or submersion, ensuring maximum heat extraction even in the harshest conditions.
Suggested Retail Price: $40.00$
