Description

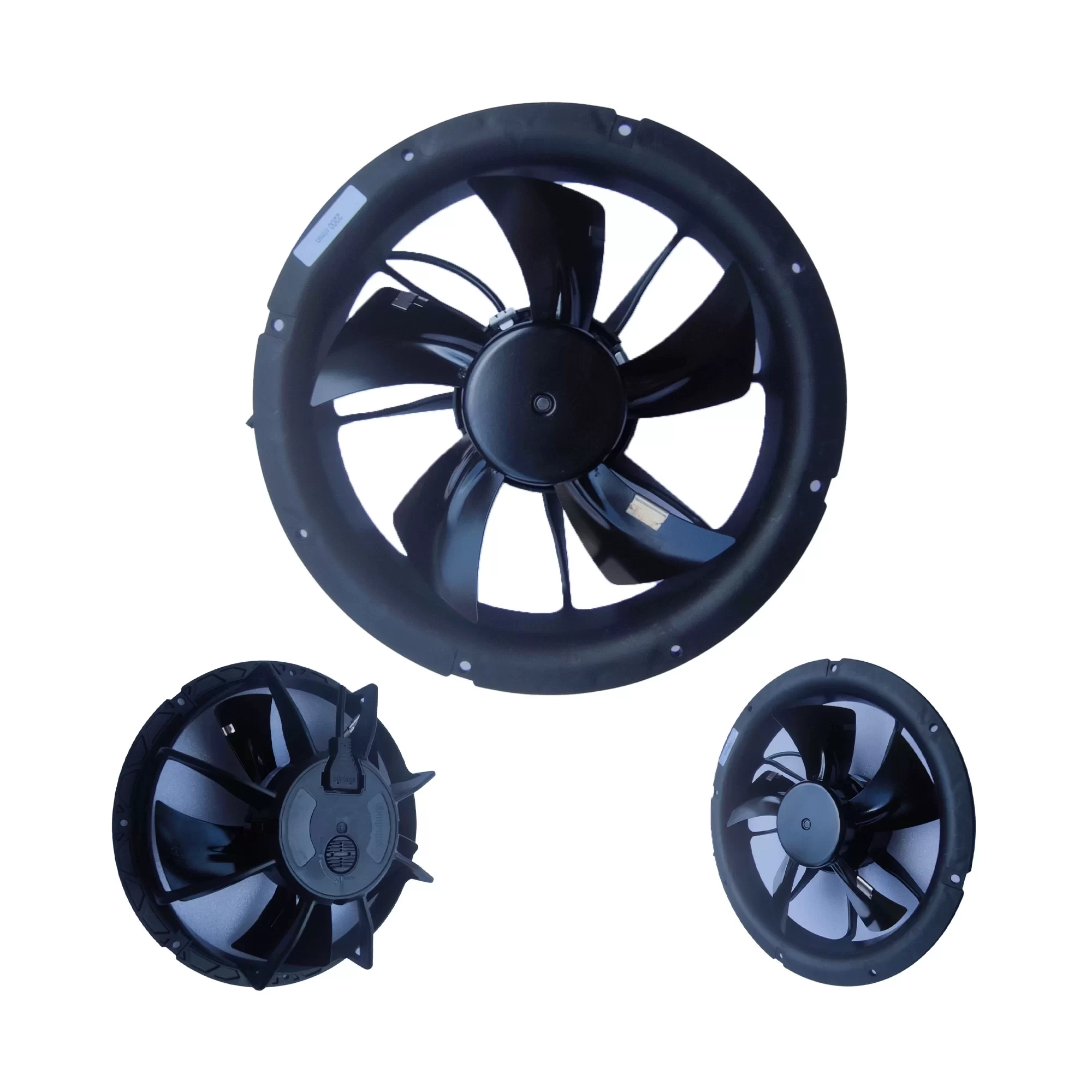

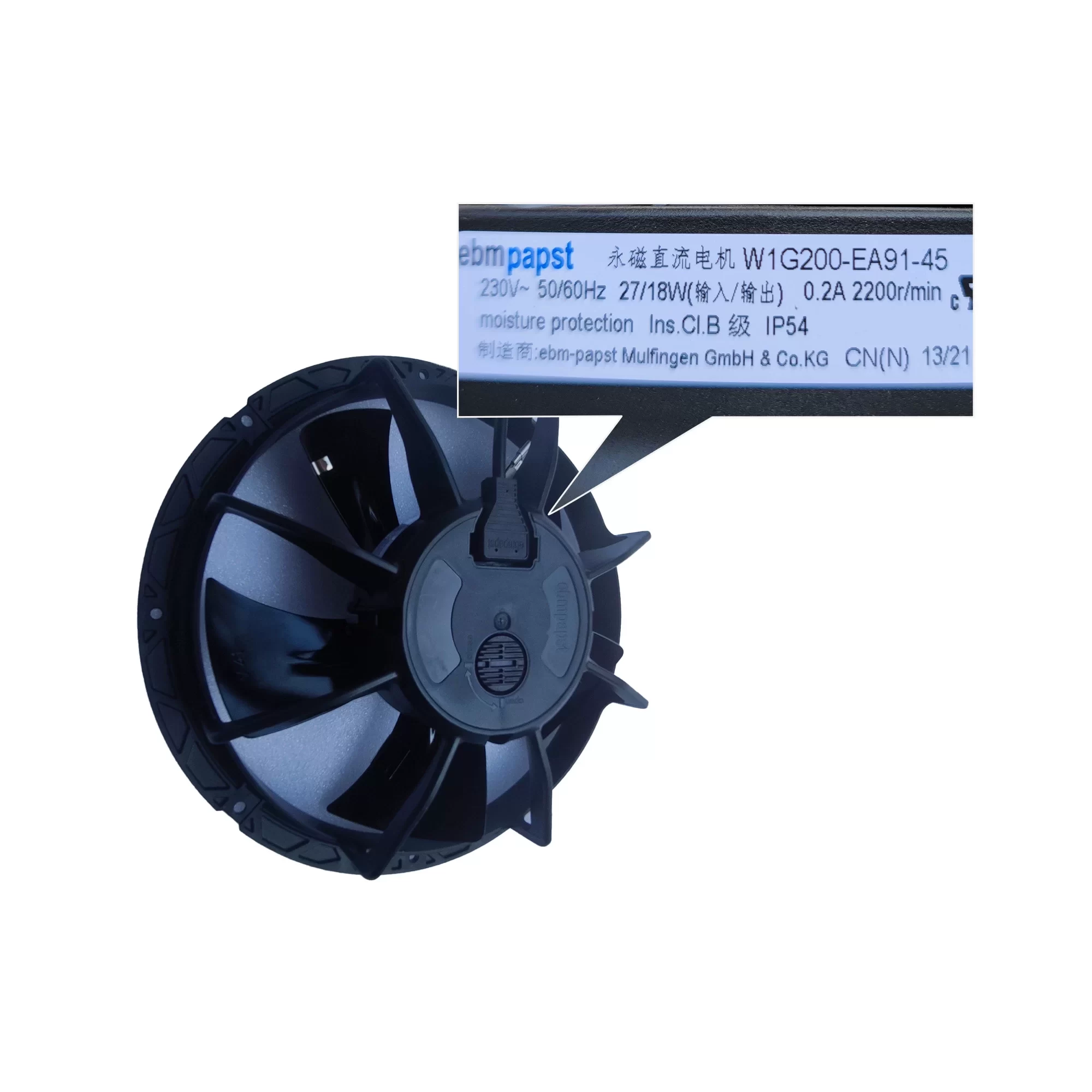

The ebmpapst W1G200-EA91-45 is a highly efficient 1-phase EC Axial Fan, part of the ESM series with sickled blades and an ESM wall ring, measuring 200mm. It operates on a nominal voltage of 230V AC and supports dual frequencies of 50Hz and 60Hz. At 50Hz, the fan has a power input of 28.1W, draws 0.21A of current, and achieves a speed of 2200RPM. At 60Hz, the speed is 1500RPM, with the same power input and current draw. This fan features a coated black rotor surface, sheet steel blades coated in black, and housing components made from PP-TD20 plastic. It is equipped with 5 blades and uses ball bearings for reliable operation. The fan has an IP54 type of protection and Insulation Class “B”, with ambient temperature limits from -30°C to 50°C. It includes technical features like over-temperature protected motor and speed selection (max/min). The fan conforms to CE standards and holds CCC, CSA C22.2 Nr.13, UL 507, and VDE approvals.
W1G200-EA91-45 Fan Parameters
Model: W1G200-EA91-45
Motor: M1G055-BD
Manufacturer: ebmpapst
Type: EC Axial Fan – ESM (Sickled blades (S series) ESM wall ring)
Phase: 1~
Nominal Voltage: 230 V AC
Frequency: 50/60 Hz
Speed: 2200 RPM (50Hz), 1500 RPM (60Hz)
Power Input: 28.1 W
Current Draw: 0.21 A
Type of data definition: me
Leakage Current: <= 0.25 mA
Dimensions: 200 mm (Size)
Operation Mode: S1
Direction of Rotation: “V”
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
EMC Harmonics: Acc. to EN 61000-3-2/3
EMC Interference Emission: Acc. to EN 61000-6-3 (household environment)
EMC Interference Immunity: Acc. to EN 61000-6-2 (industrial environment)
Insulation Class: “B”
Cable Exit: Lateral
Condensate Discharge Holes: Rotor-side
Bearing Motor: Ball bearing
Mass: 0.98 kg
Material of Electronics Housing: PP-TD20 plastic
Material of Blades: Sheet steel, coated in black
Material of Wall Ring: PP-TD20 plastic
Surface of Rotor: Coated in black
Number of Blades: 5
Type of Protection: IP54
Protection Class: II
Technical Features: – Over-temperature protected motor; – Speed selection max/min
Max. Permissible Ambient Motor Temp. (transp./storage): +80 °C
Min. Permissible Ambient Motor Temp. (transp./storage): -40 °C
Approval: CCC; CSA C22.2 Nr.13; UL 507; VDE
Product Conforming to Standard: CE
Min. Ambient Temperature: -30 °C
Max. Ambient Temperature: 50 °C
Weight: 0.98 kg
Application: Suitable for applications requiring efficient air circulation and precise control, such as ventilation systems, heat pumps, air conditioning units, and electronic cooling.
