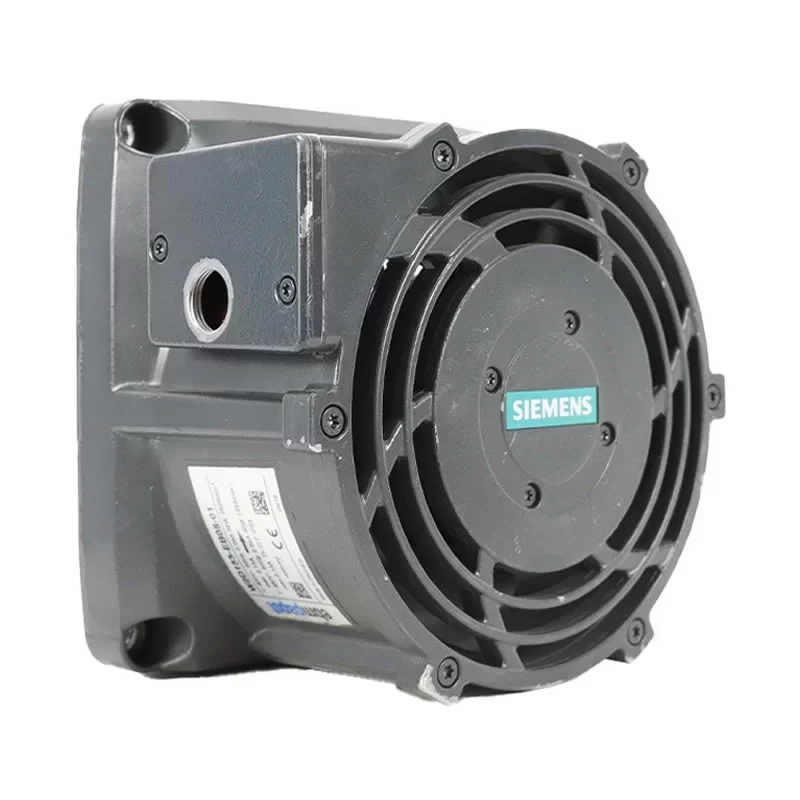

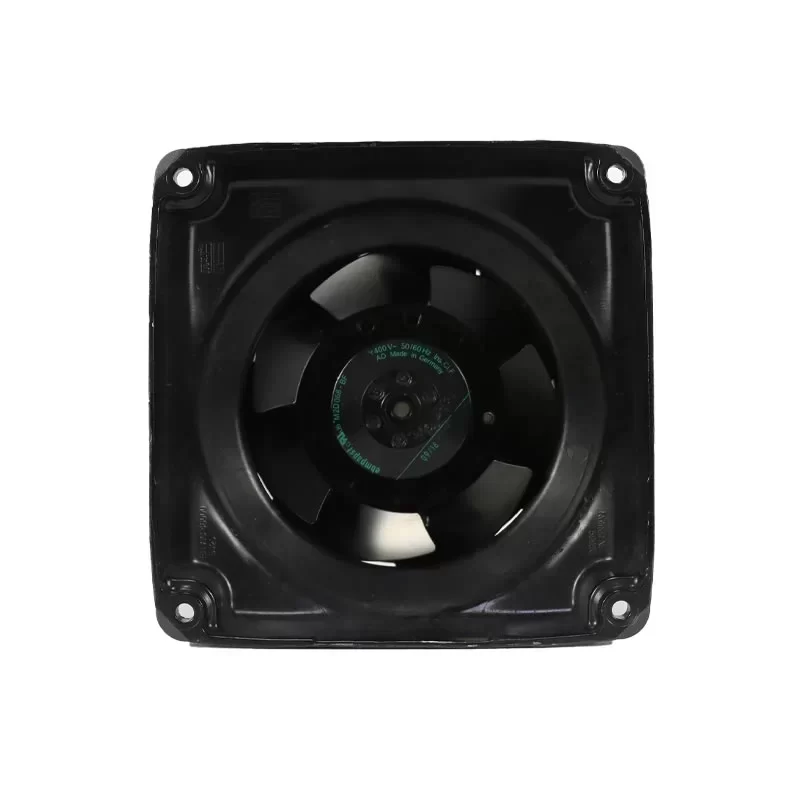

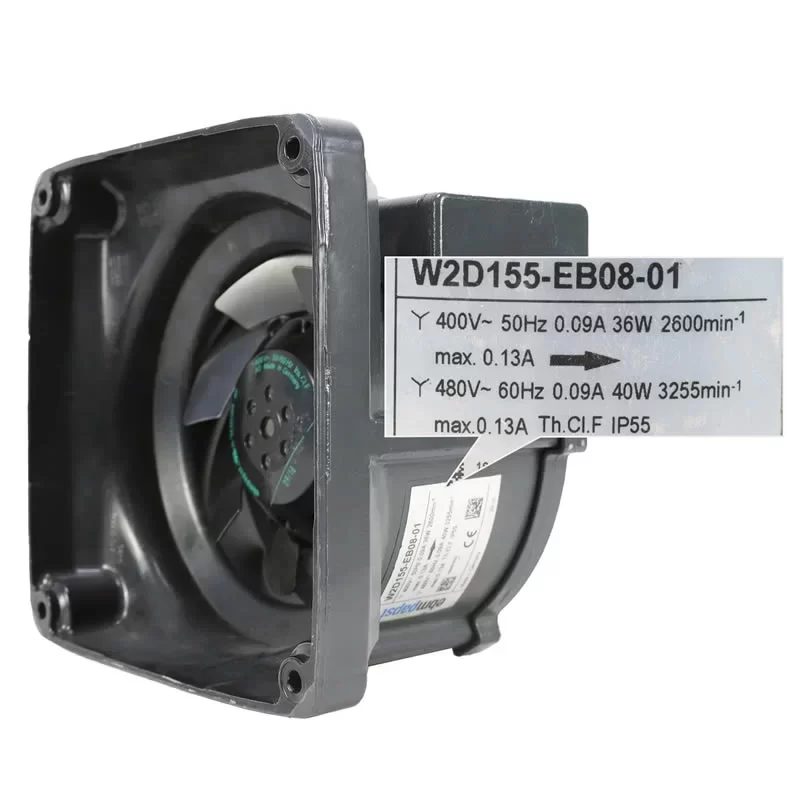

W2D155-EB08-01 ebmpapst 400V 155mm IP55 AC Axial Fan

Description

The ebmpapst W2D155-EB08-01 is a professional-grade 3-phase AC axial fan designed for high-performance thermal management in demanding industrial environments. Featuring a robust 155 mm die-cast aluminum housing and a sickle-shaped sheet steel impeller, this unit is engineered for exceptional durability and vibration-free operation. A key technical feature is its dual-frequency compatibility, delivering a rated speed of 2600 RPM at 400 VAC (50 Hz) and reaching up to 3255 RPM at 480 VAC (60 Hz). With an upgraded IP55 protection rating, the W2D155-EB08-01 is fully protected against dust ingress and low-pressure water jets, making it ideal for cooling frequency converters and telecommunications cabinets in harsh conditions. Powered by an external rotor motor with integrated thermal protection, it ensures reliable S1 continuous operation and consistent air displacement across a wide temperature range of -25 °C to +75 °C.

W2D155-EB08-01 Fan Parameters
Model Number: W2D155-EB08-01
Manufacturer: ebmpapst
Type: 3-Phase AC Axial Fan
Size: 155 mm
Dimensions: 196 x 196 x 126.2 mm
Weight: 3.8 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 / 480 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Power Consumption: 36 W (@ 50 Hz) / 40 W (@ 60 Hz)
Nominal Current: 0.09 A / 0.09 A
Maximum Current: 0.13 A
Speed: 2600 RPM (@ 50 Hz) / 3255 RPM (@ 60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 310 m³/h (@ 50 Hz) / 375 m³/h (@ 60 Hz)
Actual Static Pressure: 115 Pa (@ 50 Hz) / 135 Pa (@ 60 Hz)
Sound Power Level: 6.8 Bel(A)
Sound Pressure Level: 61 dB(A)
Motor Design: External rotor motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class F
Electrical Hookup: Terminal strips
Number of Blades: 5
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Intake over struts
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum, painted black
Installation Position: Any
Degree of Protection: IP55
Operating Temperature: -25 – +75 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE, CCC, UL, CSA

Application
The ebmpapst W2D155-EB08-01 axial fan is primarily utilized in frequency converter cooling, high-power telecommunications cabinets, industrial switchgears, and specialized machinery cooling systems.
