Description

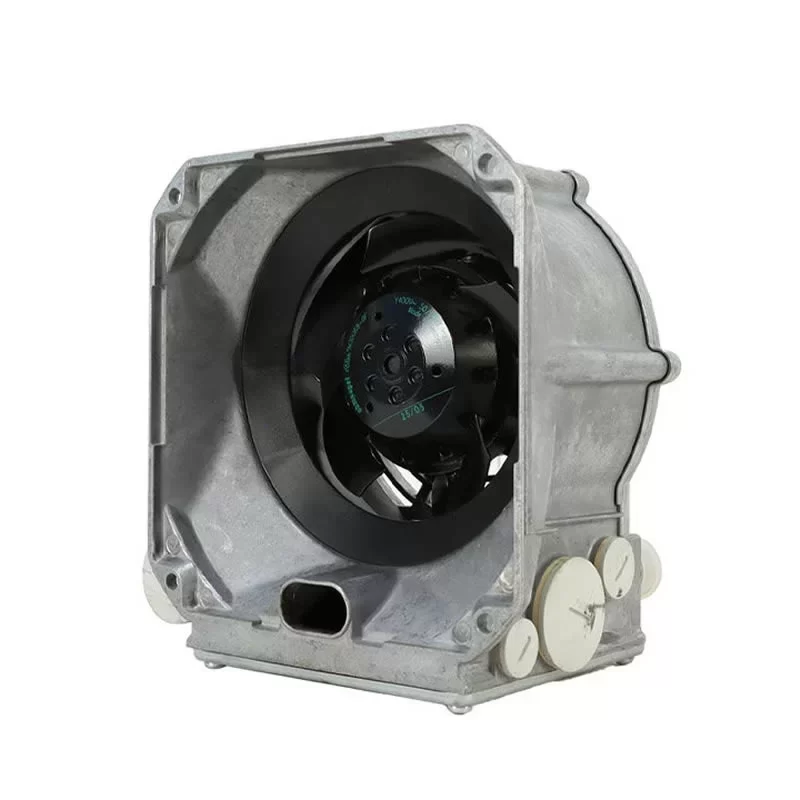

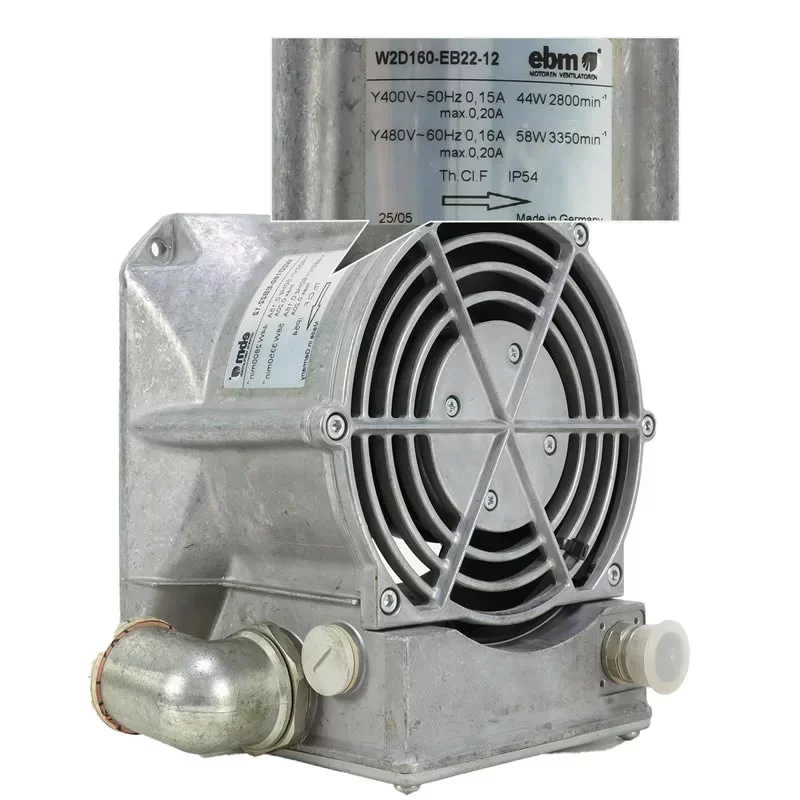

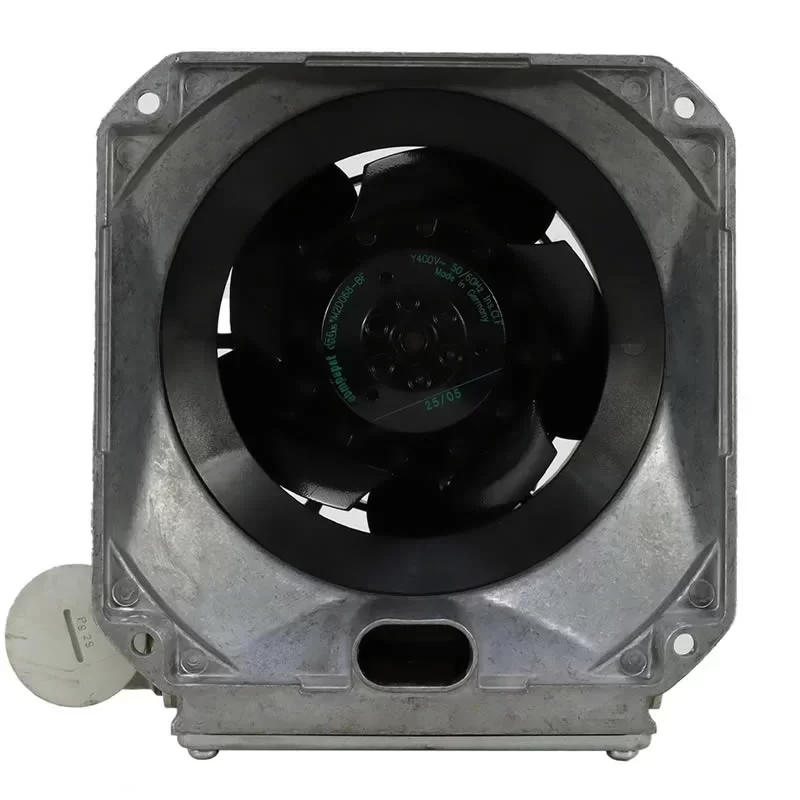

The ebmpapst W2D160-EB22-12 is a high-performance industrial AC axial fan with a nominal voltage of 400/480 VAC and an impeller size of 160 mm, specifically engineered for demanding thermal management in industrial control cabinets and power electronics. Driven by a robust three-phase M2D068-BC external rotor motor with a power consumption of 44 W at 400 VAC (50 Hz) and 58 W at 480 VAC (60 Hz) in a Star (Y) connection, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 black-coated sheet steel blades delivers a powerful airflow at a rated speed of 3350 RPM at 60 Hz, maintaining effective air circulation in high-density electronic enclosures. Constructed with a black-coated die-cast aluminium housing and a phosphated steel guard grille (RAL 9005), this 3.4 kg fan provides a dependable and rugged cooling solution with IP54 protection and Class F insulation for industrial power supplies, medical imaging systems, and telecommunications infrastructure at the end.
W2D160-EB22-12 Fan Parameters
Model Number: W2D160-EB22-12
Manufacturer: ebmpapst
Motor Model: M2D068-BC
Series: W Series
Type: AC Axial Fan
Impeller Size: 160 mm
Weight: 3.4 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC / 480 VAC (3-phase)
Wiring: Star (Y)
Frequency: 50 / 60 Hz
Power Consumption: 44 W (50 Hz) / 58 W (60 Hz)
Nominal Current: 0.15 A (50 Hz) / 0.16 A (60 Hz)
Speed: 2800 RPM (50 Hz) / 3350 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Motor Design: Three-phase AC external rotor motor
Insulation Class: Class F
Electrical Hookup: Lateral cable
Number of Blades: 5
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: “V” (Exhaust over struts; AS-BS)
Impeller Material: Sheet steel, coated in black
Housing Material: Die-cast aluminium, coated in black
Guard Grille Material: Die-cast aluminium; steel, phosphated and coated in black plastic (RAL 9005)
Installation Position: Shaft horizontal
Degree of Protection: IP54
Humidity Class: F2-2
Operating Temperature: -25 °C (Min. ambient)
Storage Temperature: -15 – +60 °C
Standard Compliance: EN 60335-1
Approval Agency: UL 1004-1; CSA C22.2 No. 100
Application
The ebmpapst W2D160-EB22-12 AC fan is primarily utilized in industrial control cabinets, frequency converters, medical laser equipment, and high-power welding machines.
