W2D200-HH04-07 ebmpapst 400V AC Axial Fan

Description

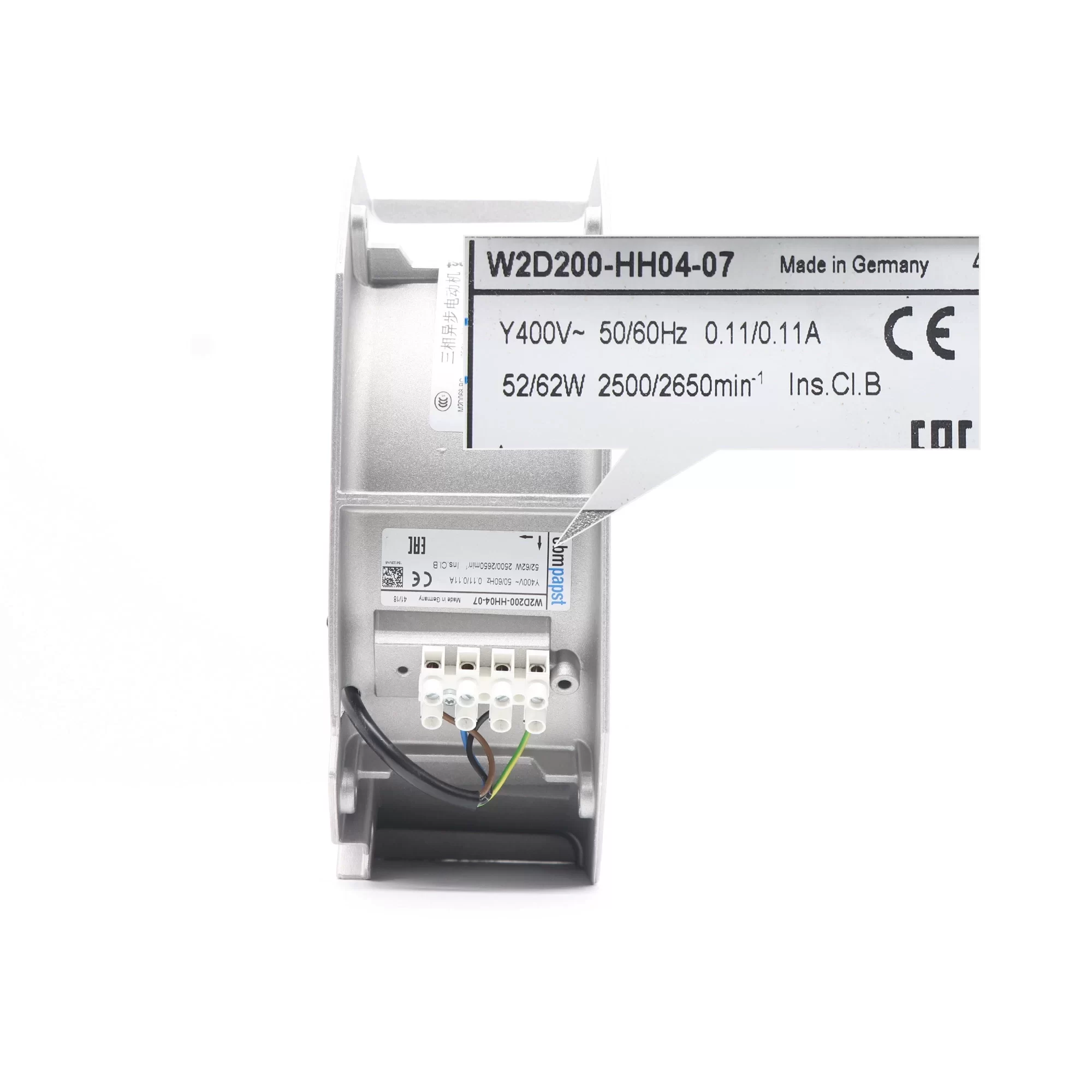

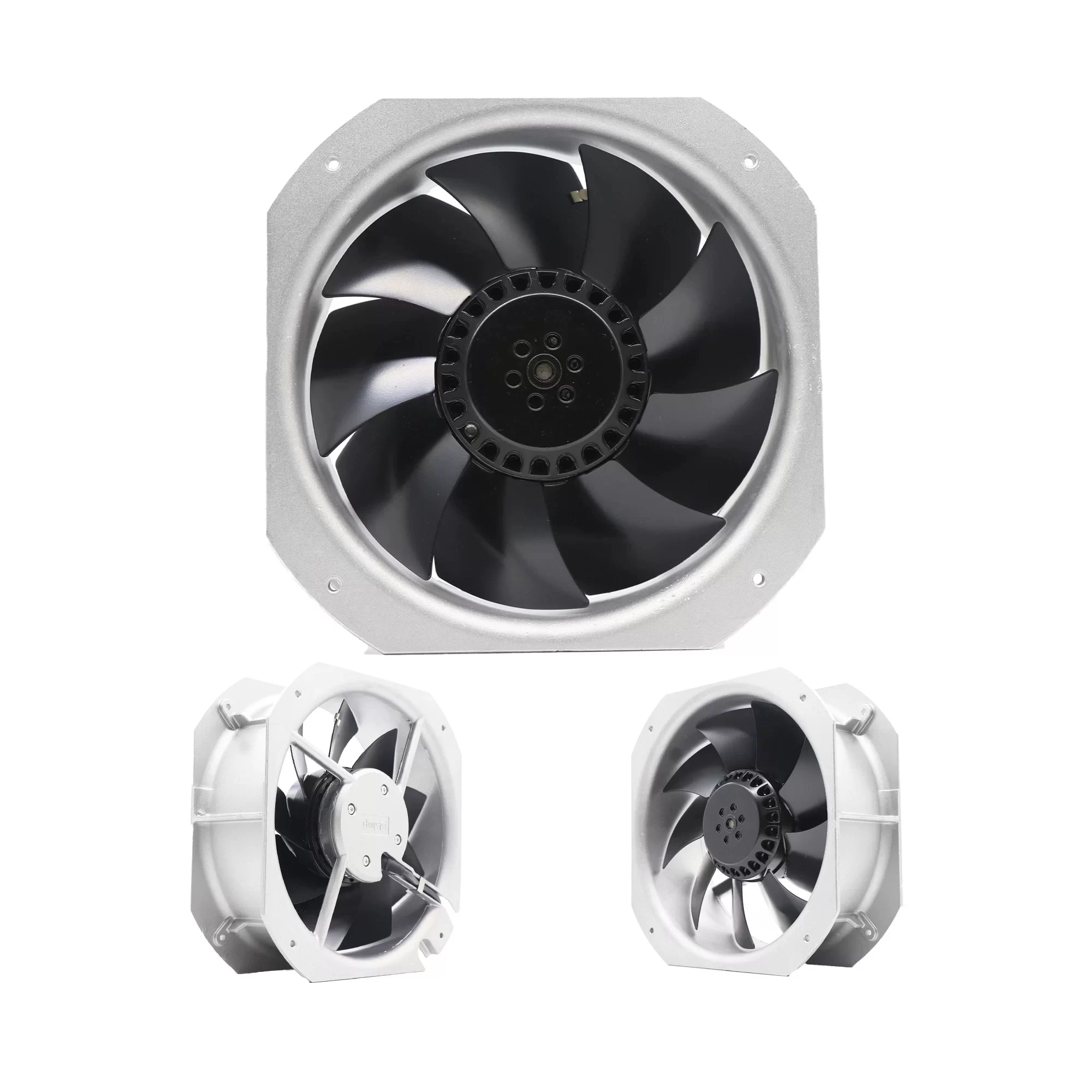

The ebmpapst W2D200-HH04-07 is a high-performance 3-phase AC Axial Fan with a 200mm impeller, powered by an M2D068-BC motor. It operates on a nominal voltage of 400V AC and supports dual frequencies of 50Hz and 60Hz. At 50Hz, the fan consumes 52W of power, draws 0.11A of current, and achieves a speed of 2500RPM. At 60Hz, its power consumption is 62W, current draw remains 0.11A, and the speed reaches 2650RPM. The fan weighs 2.1kg and features a painted black rotor surface and sheet steel blades, housed in a die-cast aluminum fan housing. It has 9 blades, an airflow direction of “V”, and a counterclockwise direction of rotation when viewed towards the rotor. Equipped with ball bearings, it offers an IP44 degree of protection and belongs to Insulation Class “B” with an H0 moisture/environmental protection class (dry environment). It can operate in ambient temperatures from -25°C to 65°C (at 50Hz) or -25°C to 80°C (at 60Hz), and is transportable/storable between -40°C and +80°C. The fan conforms to EN 60335-1 and CE standards, with CCC and EAC approvals.

W2D200-HH04-07 Fan Parameters
Model: W2D200-HH04-07
Motor: M2D068-BC
Manufacturer: ebmpapst
Type: AC Axial Fan
Phase: 3~
Nominal Voltage: 400 V AC
Wiring: Y
Frequency: 50/60 Hz

Performance at 400 V AC, 50 Hz:
Speed: 2500 RPM
Power Consumption: 52 W
Current Draw: 0.11 A
Starting Current: 0.23 A

Performance at 400 V AC, 60 Hz:
Speed: 2650 RPM
Power Consumption: 62 W
Current Draw: 0.11 A
Starting Current: 0.22 A

Method of obtaining data: fa
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 65 °C (at 50 Hz), 80 °C (at 60 Hz)
Weight: 2.1 kg
Dimensions: 200 mm (Fan size / Impeller Diameter)
Rotor Surface: Painted black
Blade Material: Sheet steel, painted black
Fan Housing Material: Die-cast aluminum
Number of Blades: 9
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Motor Bearing: Ball bearing
Degree of Protection: IP44; installation- and position-dependent
Insulation Class: “B”
Moisture / Environmental (H) Protection Class: H0 – dry environment
Max. Permitted Ambient Temp. for Motor (transport/storage): +80 °C
Min. Permitted Ambient Temp. for Motor (transport/storage): -40 °C
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Touch Current acc. IEC 60990: < 0.75 mA
With Cable: Axial
Protection Class (Electrical): I (with customer connection of protective earth)
Conformity with Standards: EN 60335-1; CE
Approval: CCC; EAC
Application: HVAC systems, air handling units, industrial ventilation, cleanroom technology, and electronic cabinet cooling.
