Description

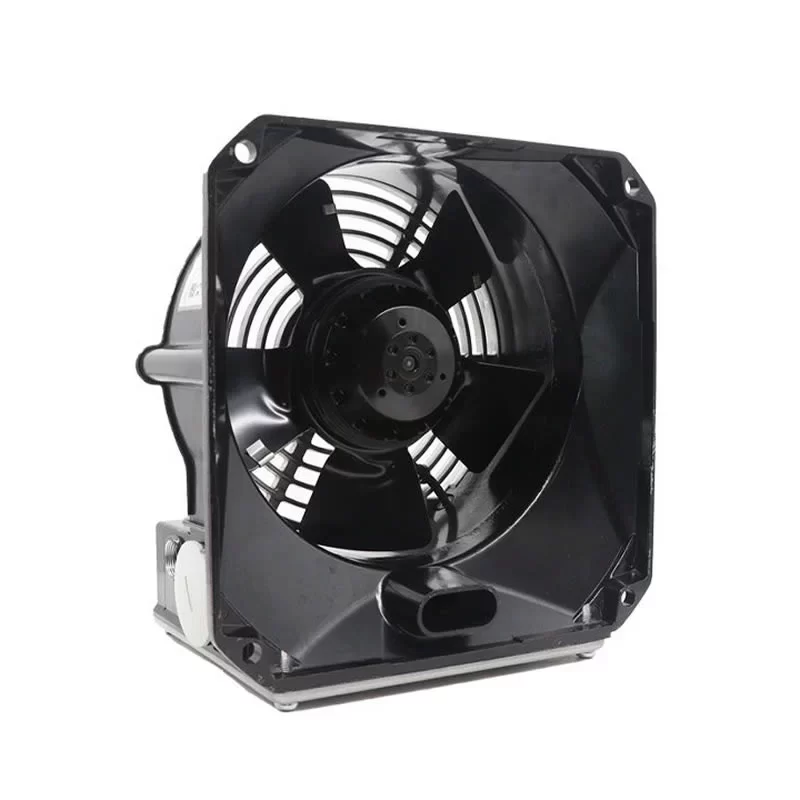

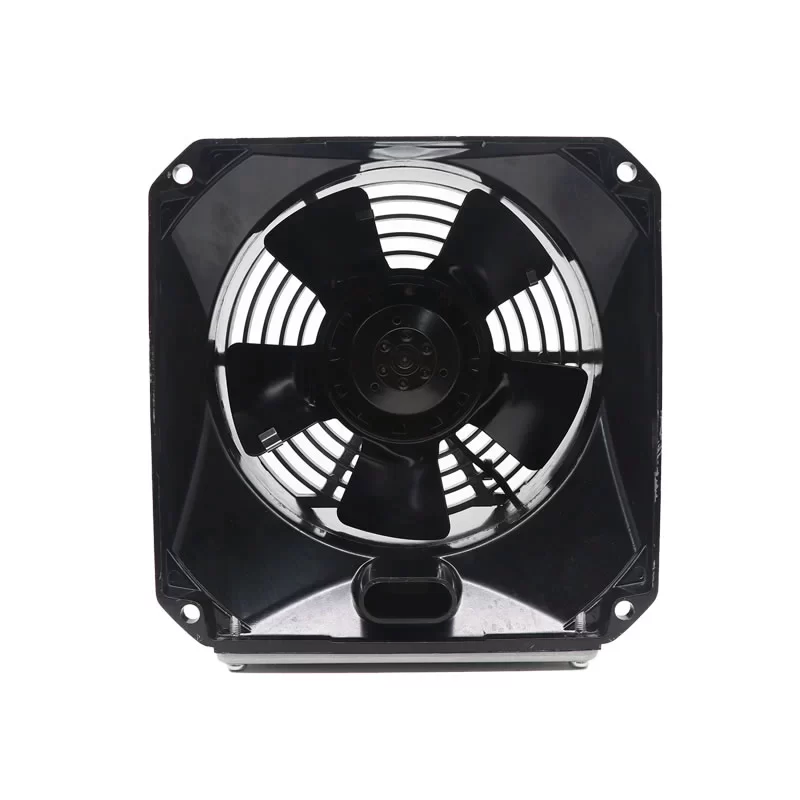

The ebmpapst W2D210-EA10-22 is a heavy-duty industrial AC axial fan with a nominal voltage of 400/480 VAC and an impeller size of 210 mm, specifically engineered for high-performance cooling in industrial switchgears and power electronics. Driven by a robust three-phase M2D068-CF external rotor motor with a power consumption of 87 W at 50 Hz and 130 W at 60 Hz in a Star (Y) connection, this unit features a premium ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 sheet-steel blades delivers high-velocity airflow in an “A” direction (suction over struts), reaching speeds up to 3250 RPM at 60 Hz. Constructed with a die-cast aluminum housing and an integrated guard grille made of phosphated steel with black plastic coating, this 4.3 kg fan provides a dependable and exceptionally durable cooling solution with IP44 protection and Class F insulation for frequency converters, medical imaging systems, and rugged industrial machinery at the end.
W2D210-EA10-22 Fan Parameters
Model Number: W2D210-EA10-22
Manufacturer: ebmpapst
Motor Model: M2D068-CF
Series: W2D Series
Type: AC Axial Fan
Impeller Size: 210 mm
Weight: 4.3 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC / 480 VAC (3-phase)
Wiring: Star (Y)
Frequency: 50 / 60 Hz
Power Consumption: 87 W (400V 50Hz) / 130 W (480V 60Hz)
Nominal Current: 0.25 A (400V 50Hz) / 0.27 A (480V 60Hz)
Speed: 2750 RPM (50 Hz) / 3250 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: Not specified (kv data)
Motor Design: Three-phase AC external rotor motor
Insulation Class: Class F
Electrical Hookup: Lateral cable
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: “A” (Suction over struts)
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum, painted black
Guard Grille Material: Die-cast aluminum; Steel, phosphated and plastic-coated (RAL 9005)
Installation Position: Shaft horizontal
Degree of Protection: IP44
Environmental Protection: F2-2
Operating Temperature: -25 °C (Min.)
Storage Temperature: -15 – +60 °C
Standard Compliance: EN 60335-1; CE
Approval Agency: UL 1004-1; CSA C22.2 No. 100
Application
The ebmpapst W2D210-EA10-22 AC fan is primarily utilized in industrial control cabinets, frequency converters, high-power medical equipment, and telecommunications infrastructure.
