Description

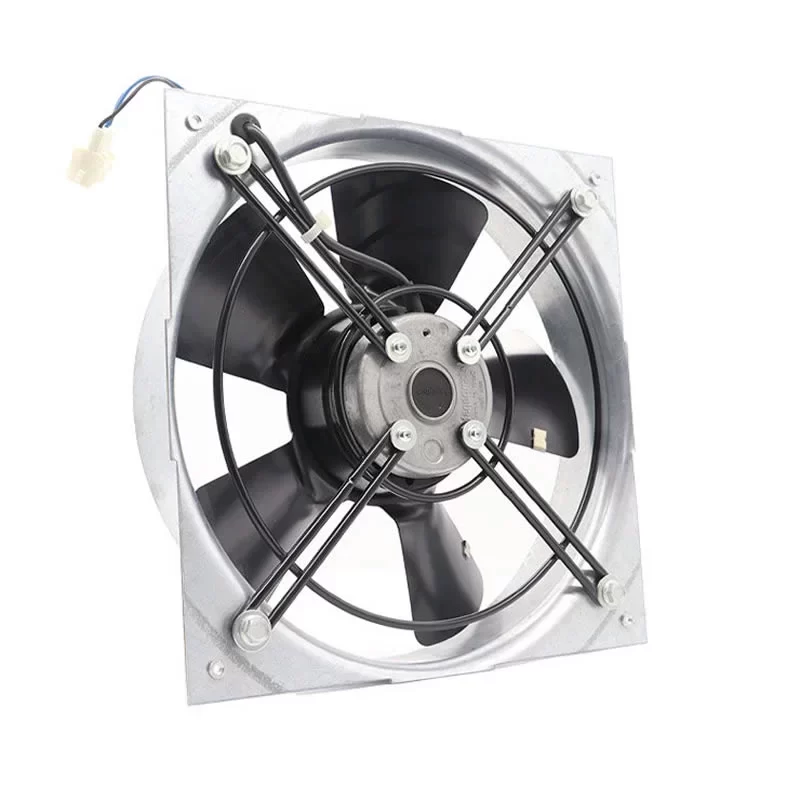

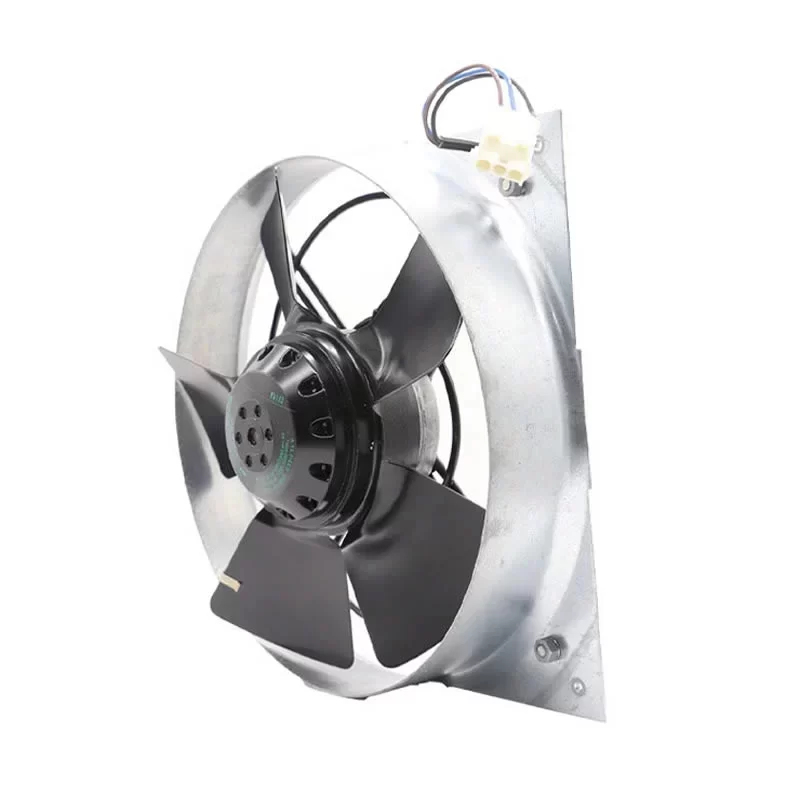

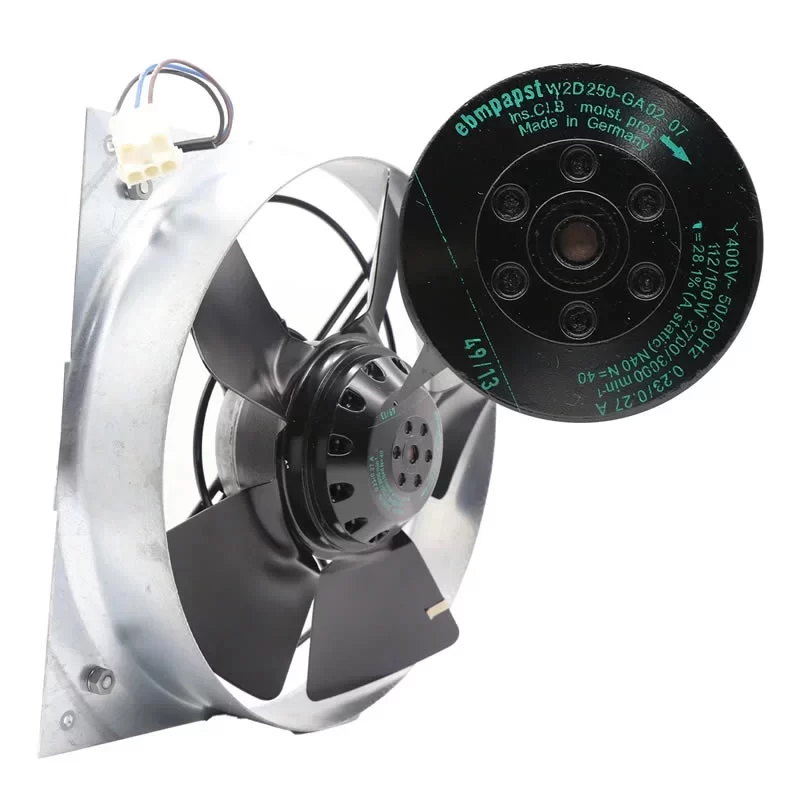

The ebmpapst W2D250-GA02-07 is a high-performance industrial AC axial fan with a nominal voltage of 400 VAC and an impeller size of 250 mm, specifically engineered for demanding thermal management in industrial control cabinets and power electronics. Driven by a robust three-phase M2D068-DF external rotor motor with a power consumption of 112 W at 50 Hz and 180 W at 60 Hz in a Star (Y) connection, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 black-coated sheet steel blades delivers a powerful airflow of 1050 m³/h at its optimum efficiency point while maintaining an overall static efficiency of 28.1%. Constructed with a galvanized sheet steel wall ring and a phosphated steel mounting ring coated in black plastic, this 2.9 kg fan provides a dependable and durable cooling solution with IP44 protection and F1-2 humidity class for industrial power supplies, medical imaging systems, and telecommunications infrastructure at the end.
W2D250-GA02-07 Fan Parameters
Model Number: W2D250-GA02-07
Manufacturer: ebmpapst
Motor Model: M2D068-DF
Series: W Series
Type: AC Axial Fan
Impeller Size: 250 mm
Weight: 2.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC (3-phase)
Wiring: Star (Y)
Frequency: 50 / 60 Hz
Power Consumption: 112 W (50 Hz) / 180 W (60 Hz)
Nominal Current: 0.23 A (50 Hz) / 0.27 A (60 Hz)
Speed: 2700 RPM (50 Hz) / 3000 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 1050 m³/h (@ optimum efficiency)
Actual Static Pressure: 280 Pa (Max. back pressure)
Overall Efficiency (ηe): 28.1 %
Motor Design: Three-phase AC external rotor motor
Insulation Class: Class B
Electrical Hookup: Lateral cable
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: “A” (Suction over struts)
Impeller Material: Sheet steel, coated in black
Mounting Ring Material: Steel, phosphated and coated in black plastic
Wall Ring Material: Sheet steel, galvanized
Installation Position: Any
Degree of Protection: IP44
Humidity Class: F1-2
Operating Temperature: -40 – +60 °C (50 Hz) / -40 – +50 °C (60 Hz)
Storage Temperature: -40 – +80 °C
Standard Compliance: EN 60335-1; CE
Approval Agency: CCC (Optional/Dependent)
Application
The ebmpapst W2D250-GA02-07 AC fan is primarily utilized in industrial control cabinets, frequency converters, medical laser equipment, and high-power welding machines.
