W2D300-CP02-30 ebmpapst 230/400V AC Axial Fan

Description

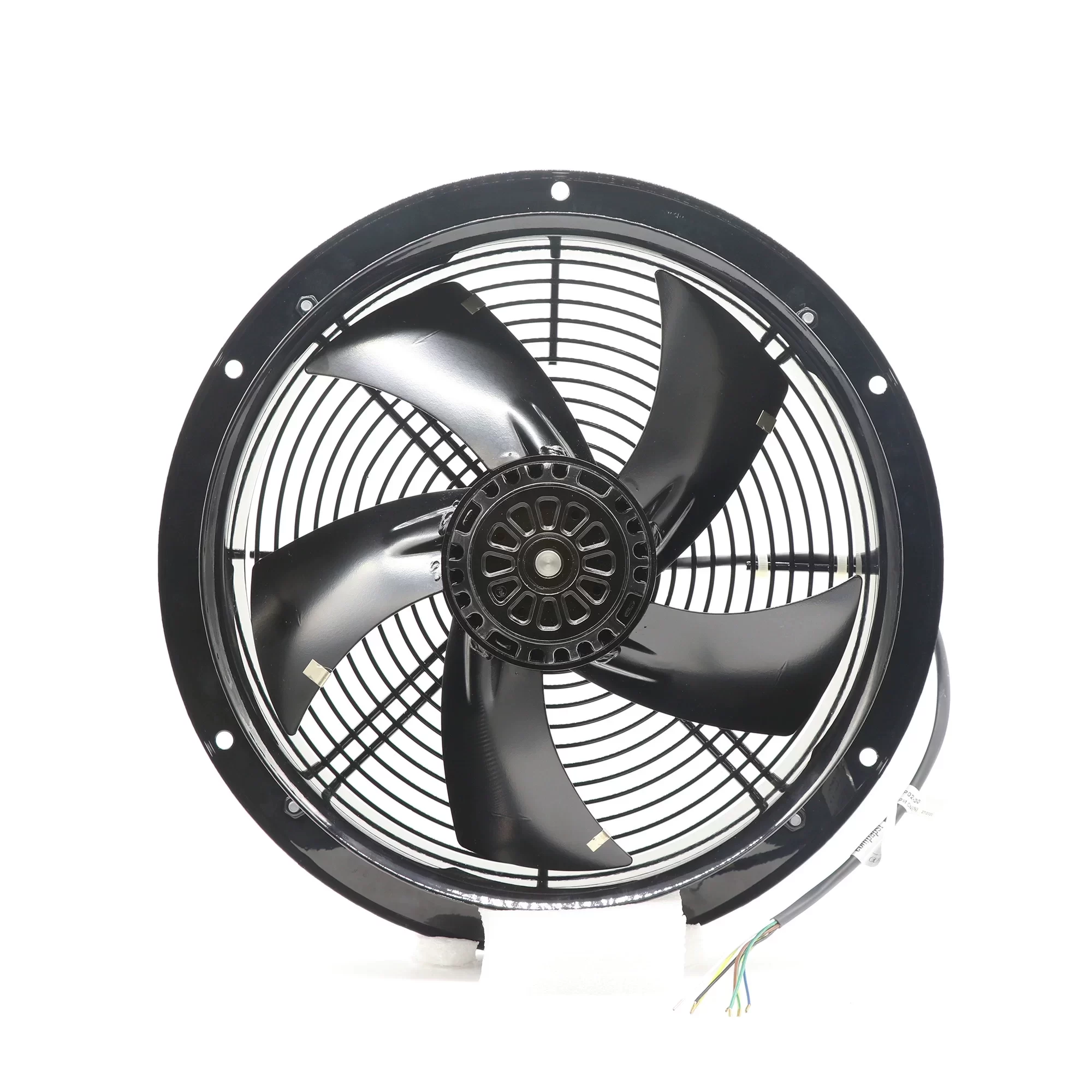

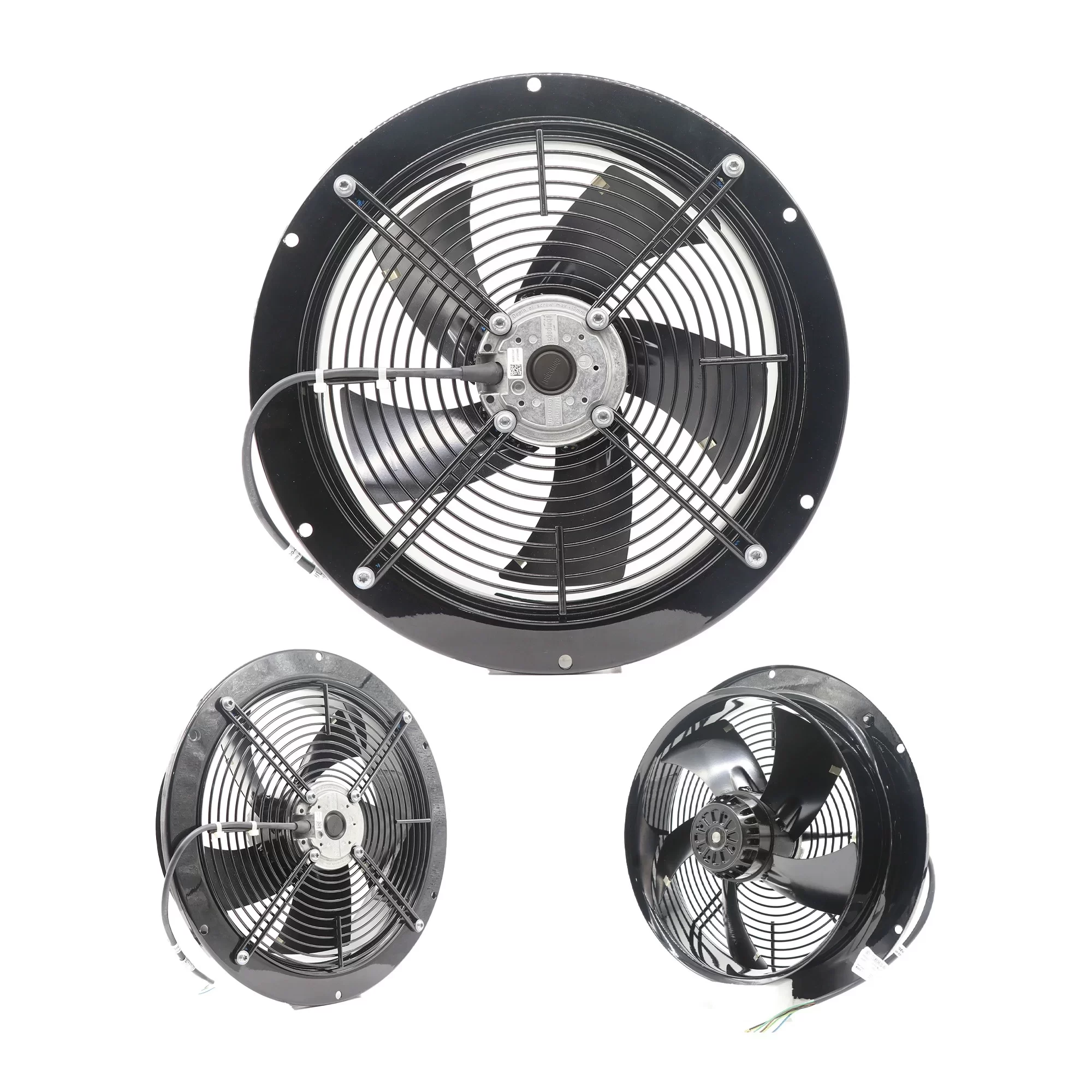

The ebmpapst W2D300-CP02-30 is a powerful 3-phase AC Axial Fan with sickled blades (S series) and a full round nozzle, measuring 300mm. It operates at a frequency of 50Hz, supporting two nominal voltage configurations: 230V AC (D connection) and 400V AC (Y connection). At both 230V and 400V, the fan achieves a speed of 2580 RPM and has a power input of 210W, generating a maximum back pressure of 200Pa. The current draw is 0.62A at 230V and 0.36A at 400V. This fan weighs 5.2kg and features blades made of sheet steel coated in black, a guard grille of steel phosphated and coated in black plastic, and a wall ring of pre-galvanized steel coated in black plastic. It has 5 blades, a coated black rotor surface, and is equipped with ball bearings. The fan offers an IP44 type of protection, Insulation Class “B”, and operates in ambient temperatures up to 55°C. It conforms to EN 60335-1 standard and holds CCC and GOST approvals.

W2D300-CP02-30 Fan Parameters
Model: W2D300-CP02-30
Motor: M2D074-DF
Manufacturer: ebmpapst
Type: AC Axial Fan (Sickled blades (S series) with full round nozzle)
Phase: 3~
Nominal Voltage: 230 V AC / 400 V AC
Connection: D (for 230V), Y (for 400V)
Frequency: 50 Hz
Type of data definition: rfa

Performance at 230 V AC, 50 Hz:
Speed: 2580 RPM
Power Input: 210 W
Current Draw: 0.62 A
Max. Back Pressure: 200 Pa

Performance at 400 V AC, 50 Hz:
Speed: 2580 RPM
Power Input: 210 W
Current Draw: 0.36 A
Max. Back Pressure: 200 Pa

Leakage Current: < 0.75 mA
Dimensions: 300 mm (Size)
Operation Mode: S1
Direction of Rotation: Counter-clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Humidity Class: F1-2
Direction of Air Flow: "V"
Insulation Class: "B"
Cable Exit: Variable
Condensate Discharge Holes: Rotor-side
Bearing Motor: Ball bearing
Material of Blades: Sheet steel, coated in black
Material of Guard Grille: Steel, phosphated and coated in black plastic
Material of Wall Ring: Sheet steel, pre-galvanized and coated in black plastic
Surface of Rotor: Coated in black
Number of Blades: 5
Type of Protection: IP44
Protection Class: I
Max. Permissible Ambient Motor Temp. (transp./storage): +80 °C
Min. Permissible Ambient Motor Temp. (transp./storage): -40 °C
Approval: CCC; GOST
Product Conforming to Standard: EN 60335-1
Max. Ambient Temperature: 55 °C
Weight: 5.2 kg
Application: Ideal for robust ventilation solutions, industrial air conditioning, heating applications, and general air handling units requiring high airflow and pressure.
