W2D300-CP02-31 ebmpapst 230V/400V AC Centrifugal Fan

Description

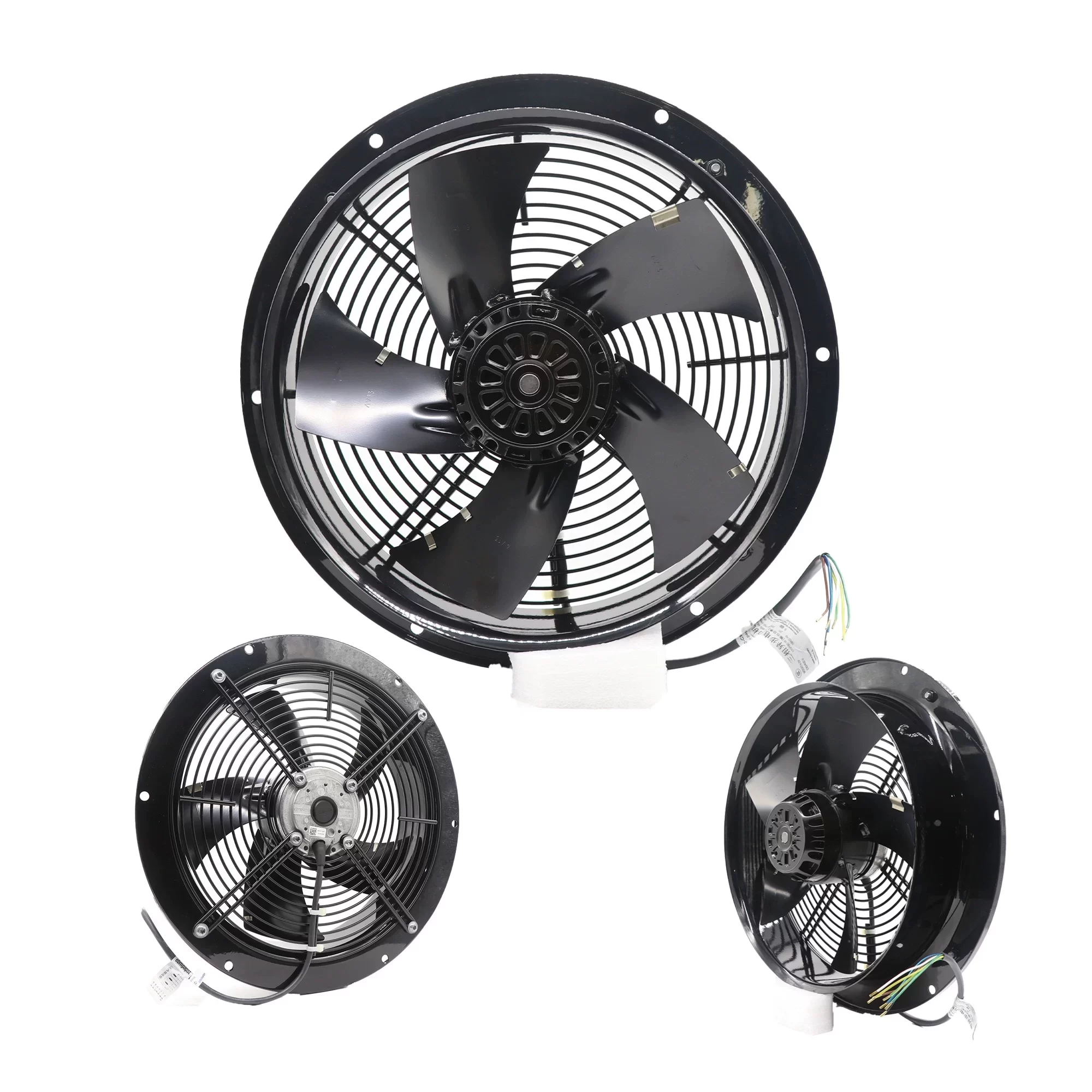

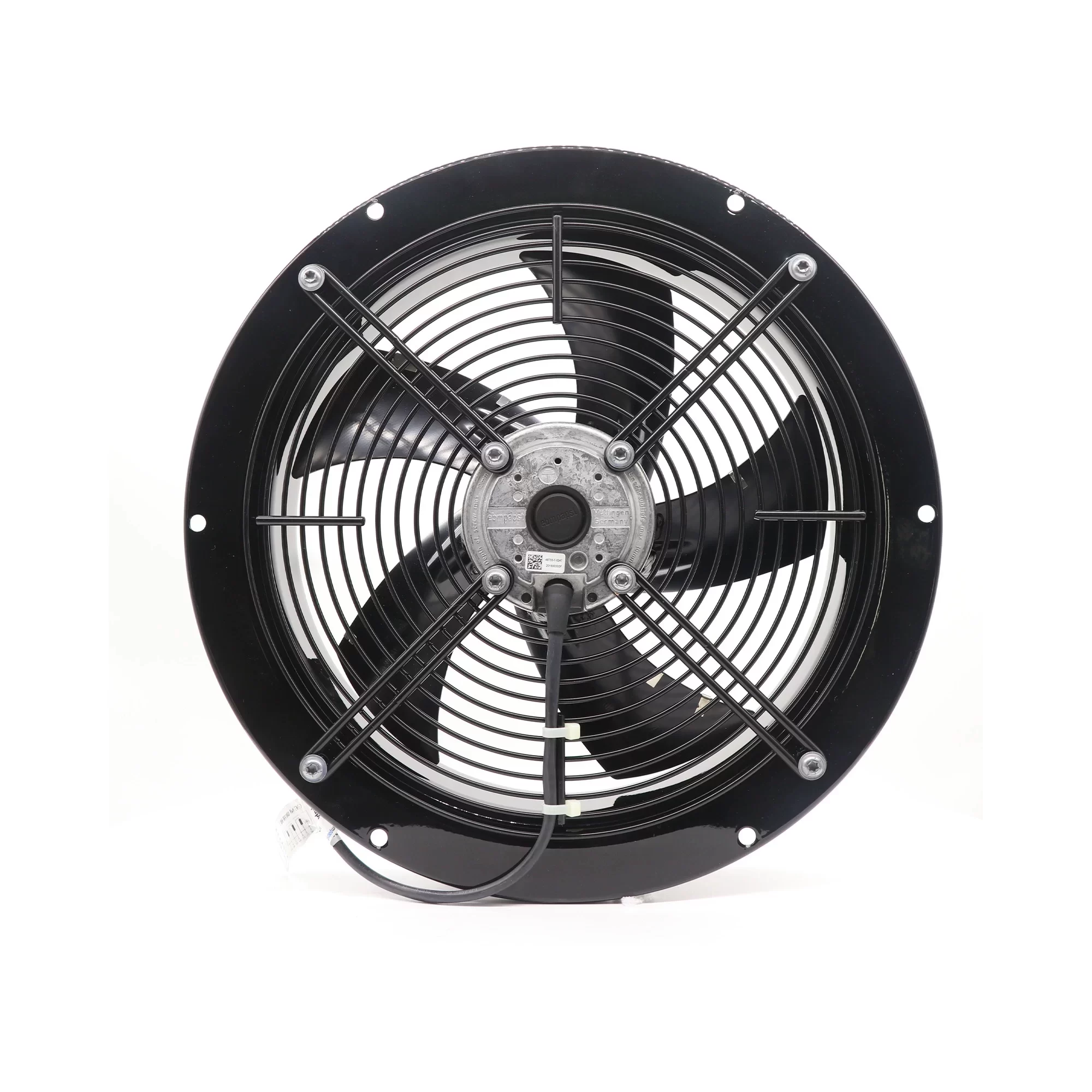

The ebmpapst W2D300-CP02-31 is an AC Centrifugal Fan measuring 300 mm. It operates as a 3-phase fan at 50Hz, offering two nominal voltage configurations: 230V with a Delta (D) connection, drawing 0.62A current, consuming 210W power, and reaching 2580RPM; and 400V with a Star (Y) connection, drawing 0.36A current, consuming 210W power, and reaching 2580RPM. Both configurations provide a maximum back pressure of 200 Pa. This fan features 5 coated black sheet steel blades, a coated black rotor surface, a sheet steel, pre-galvanized and coated in black plastic wall ring, and a steel, phosphated and coated in black plastic guard grille. It uses a reliable ball bearing system and has an IP44 degree of protection. Electrical connection is via a variable cable exit, with an option for a terminal box. Motor protection includes an internally connected thermal overload protector (TOP). It weighs 5.3 kg and is suitable for ambient temperatures up to 55°C. It conforms to EN 60335-1 standard and holds CCC approval.

W2D300-CP02-31 Fan Parameters
Model: W2D300-CP02-31
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Motor: M2D074-DF
Phase: 3~
Nominal Voltage: 230 V / 400 V
Connection: D / Y
Frequency: 50 Hz
Speed: 2580 RPM
Power Input: 210 W
Current Draw: 0.62 A (230V) / 0.36 A (400V)
Max. Back Pressure: 200 Pa
Max. Ambient Temperature: 55 °C
Weight: 5.3 kg
Size: 300 mm
Leakage Current: < 0.75 mA
Operation Mode: S1
Direction of Rotation: Clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Humidity Class: F1-2
Direction of Air Flow: A
Insulation Class: "B"
Cable Exit: Variable
Condensate Discharge Holes: Rotor-side
Motor Bearing: Ball bearing
Material of Blades: Sheet steel, coated in black
Material of Guard Grille: Steel, phosphated and coated in black plastic
Material of Wall Ring: Sheet steel, pre-galvanized and coated in black plastic
Surface of Rotor: Coated in black
Number of Blades: 5
Degree of Protection: IP 44
Protection Class: I
Max. Permitted Ambient Temp. for Motor (Transport/Storage): +80 °C
Min. Permitted Ambient Temp. for Motor (Transport/Storage): -40 °C
Product Conforming to Standard: EN 60335-1
Approval: CCC
Option: With terminal box
Application: Ideal for use in large-scale air handling units, ventilation systems, and industrial applications requiring robust air movement and multi-voltage compatibility.
