W2E142-BB01-A5 ebmpapst 230V AC Axial Fan

Description

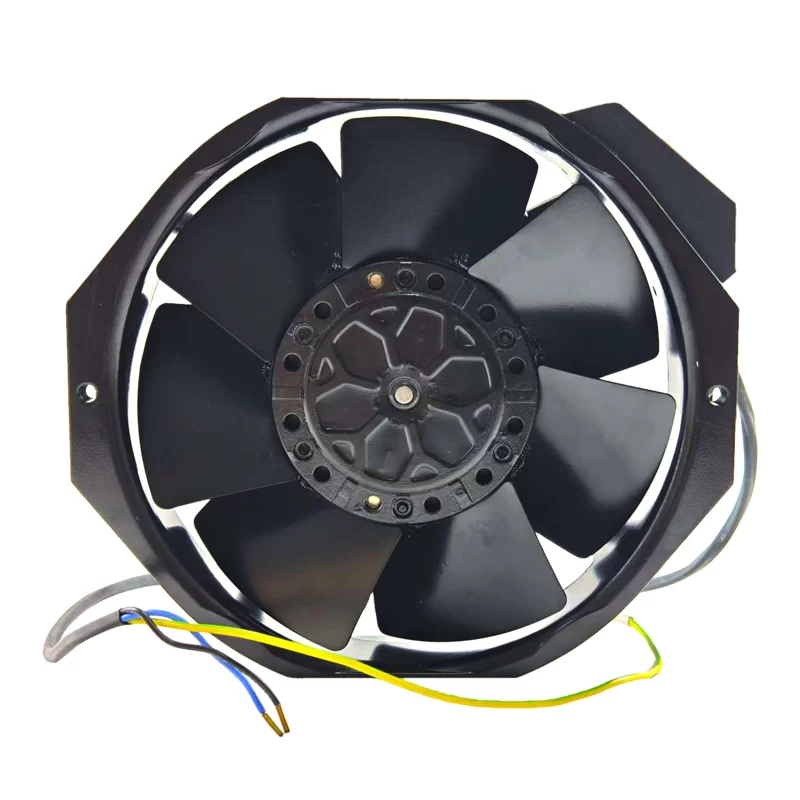

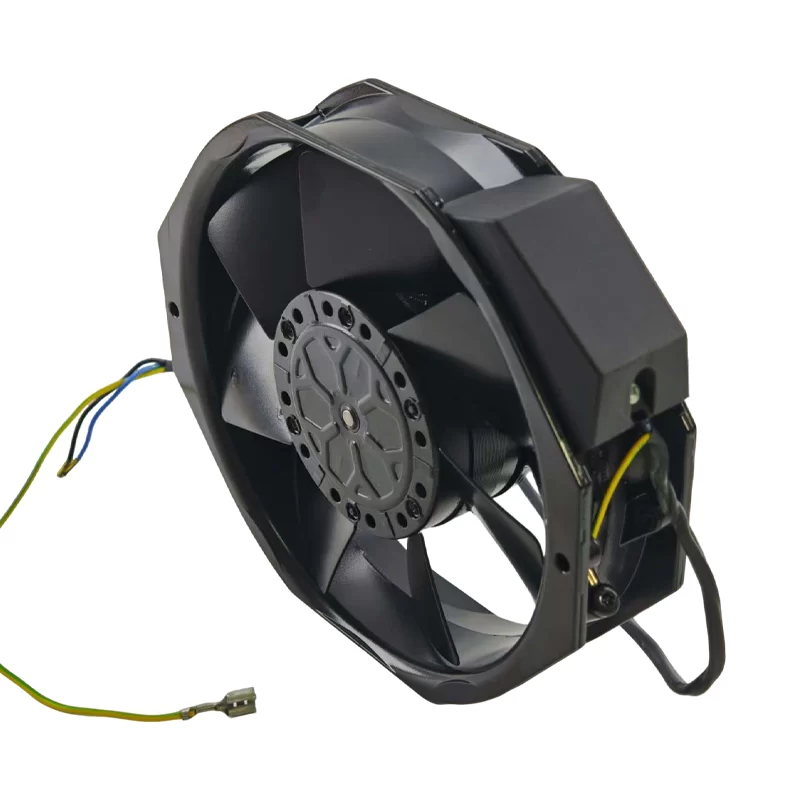

The ebmpapst W2E142-BB01-A5 is an AC axial fan with a die-cast aluminum housing and a sheet steel impeller. Operating on 230V AC at 50/60 Hz, it has a power consumption of 27W at 50 Hz and 28W at 60 Hz. The fan runs at a speed of 3350 RPM, delivering an airflow of 230 CFM. The static pressure is 50 Pa at 50 Hz and 60 Pa at 60 Hz, with a noise level of 57 dBA. The fan uses ball bearings for a long service life of 40,000 hours at 40 °C and operates within a temperature range of -40 °C to 75 °C.

W2E142-BB01-A5 Fan Parameters
Manufacturer: ebmpapst
Model: W2E142-BB01-A5
Fan Type: AC Axial Fan
Dimensions: 172 x 150 x 38 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Power Consumption: 27/28 W
Airflow: 230 CFM
Static Pressure: 50/60 Pa
Speed: 3350 RPM
Noise Level: 57 dBA
Bearing Type: Ball bearing
Termination: 2-Wire Leads (Flat Plug)
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, painted black
Operating Temperature: -40 °C to 75 °C
Life Expectancy: 40,000 h (at 40 °C)
Weight: 816 g

Application
The W2E142-BB01-A5 fan is suitable for applications requiring high-volume airflow, such as in industrial refrigeration, telecommunication enclosures, electrical cabinets, and power converters.
