W2E142-BB05-01 ebmpapst 115V AC Centrifugal Fan

Description

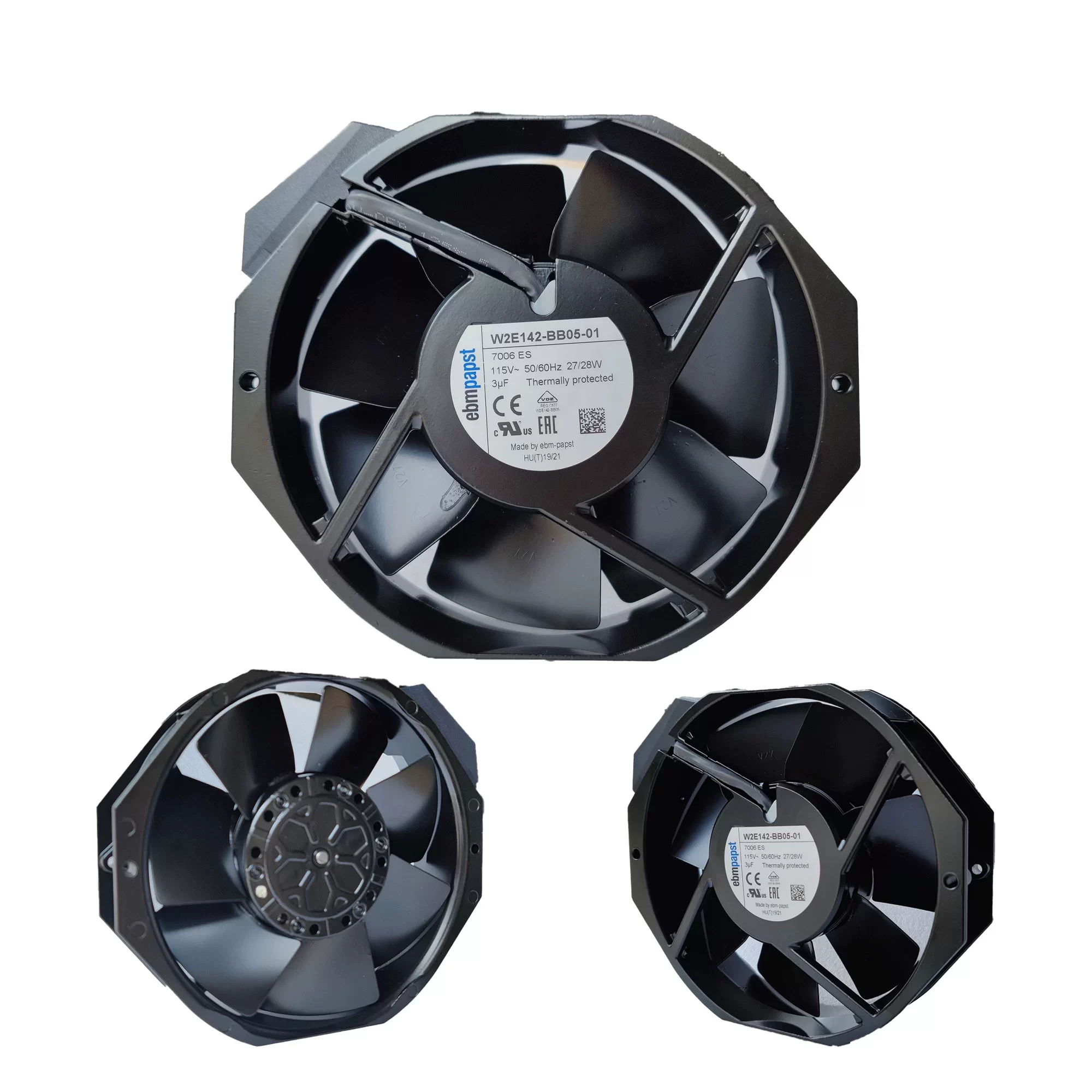

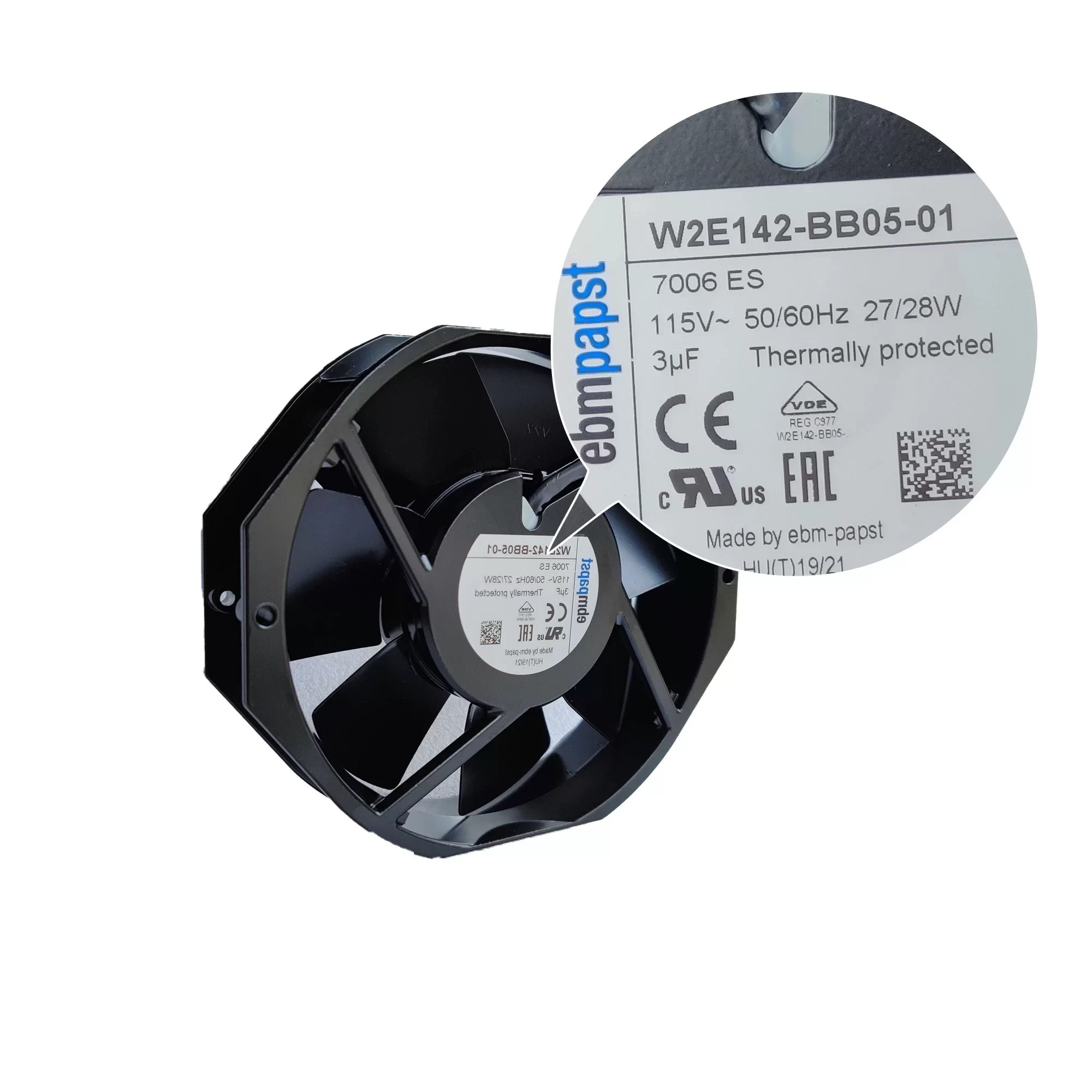

The ebmpapst W2E142-BB05-01 is an AC Centrifugal Fan measuring 142mm. It operates on 115VAC and is designed for dual frequency use: at 50Hz, it draws 0.24A current, consumes 27W power, and reaches 2800RPM; at 60Hz, it draws 0.25A current, consumes 28W power, and reaches 3350RPM. This fan features 7 painted black sheet steel blades and a die-cast aluminum housing. It uses a reliable ball bearing system and has an IP22 degree of protection. Electrical hookup is via a plug, and it includes an internally connected thermal overload protector (TOP). It weighs 0.8kg and is suitable for ambient temperatures from -25°C up to 55°C (50Hz) or 65°C (60Hz). Approvals include CSA C22.2 No. 113, CCC, EAC, VDE, and UL 507, and it conforms to EN 60335-1 and CE standards.

W2E142-BB05-01 Fan Parameters
Model: W2E142-BB05-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Motor: M2E052-BA
Phase: 1~
Nominal Voltage: 115 V AC
Frequency: 50 / 60 Hz
Speed: 2800 RPM (50 Hz) / 3350 RPM (60 Hz)
Power Consumption: 27 W (50 Hz) / 28 W (60 Hz)
Current Draw: 0.24 A (50 Hz) / 0.25 A (60 Hz)
Capacitor: 3 µF
Capacitor Voltage: 220 VDB
Capacitor Standard: S0 (CE)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 55 °C (50 Hz) / 65 °C (60 Hz)
Weight: 0.8 kg
Size: 142 mm
Motor Size: 52
Rotor Surface: Painted black
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum, painted black
Number of Blades: 7
Airflow Direction: V
Direction of Rotation: Counterclockwise, viewed toward rotor
Degree of Protection: IP22; installation- and position-dependent
Insulation Class: “B”
Moisture (F) / Environmental (H) Protection Class: H0+
Max. Permitted Ambient Temp. for Motor (Transport/Storage): +80 °C
Min. Permitted Ambient Temp. for Motor (Transport/Storage): -40 °C
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Motor Bearing: Ball bearing
Touch Current acc. IEC 60990: < 0.75 mA
Electrical Hookup: Plug
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: I (with customer connection of protective earth)
Conformity with Standards: EN 60335-1; CE
Approval: CSA C22.2 No. 113; CCC; EAC; VDE; UL 507
Application: Suitable for ventilation in compact electronics enclosures, small appliances, and other applications requiring efficient air movement with moderate ingress protection.
