W2E143-AA09-25 ebmpapst 230V AC Axial Fan

Description

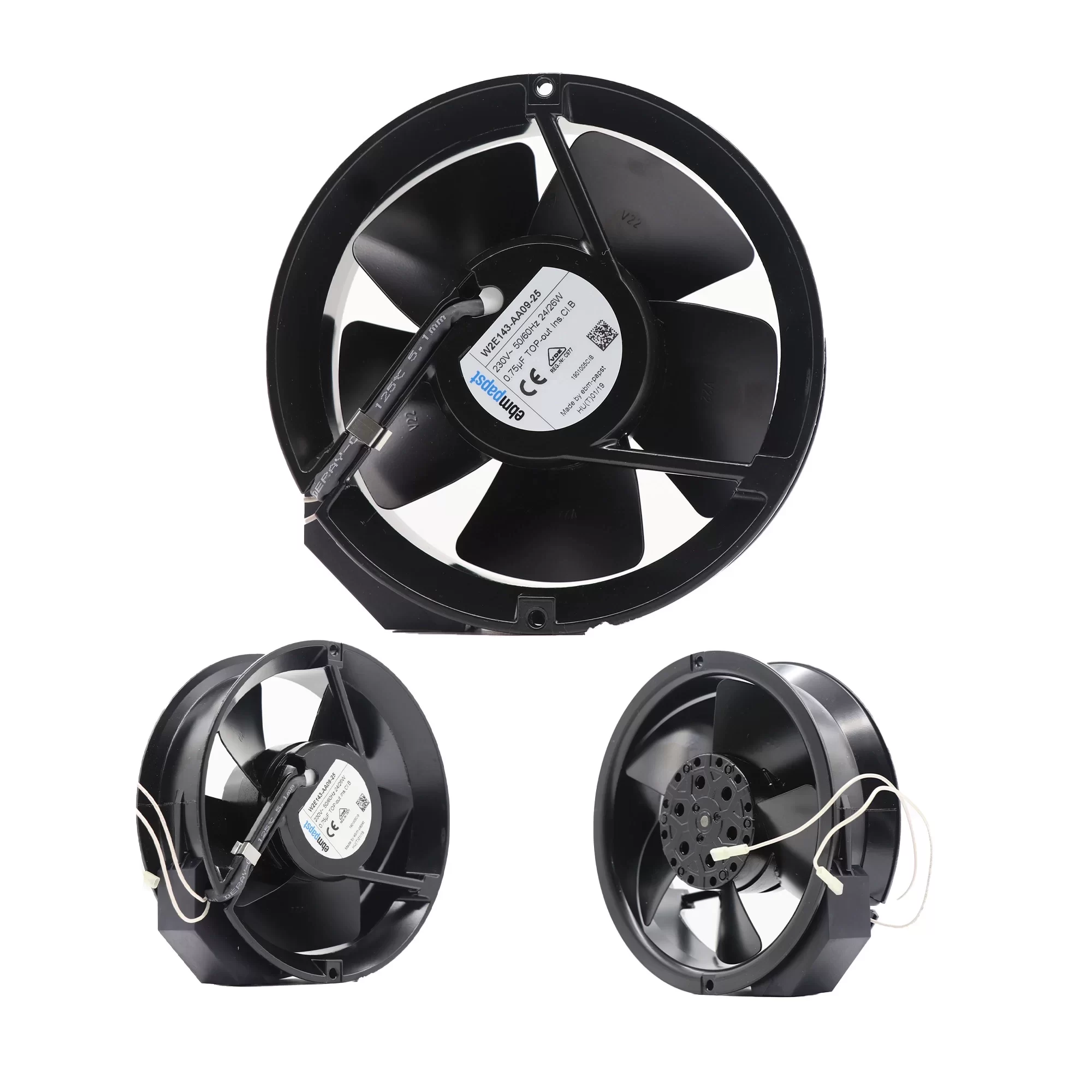

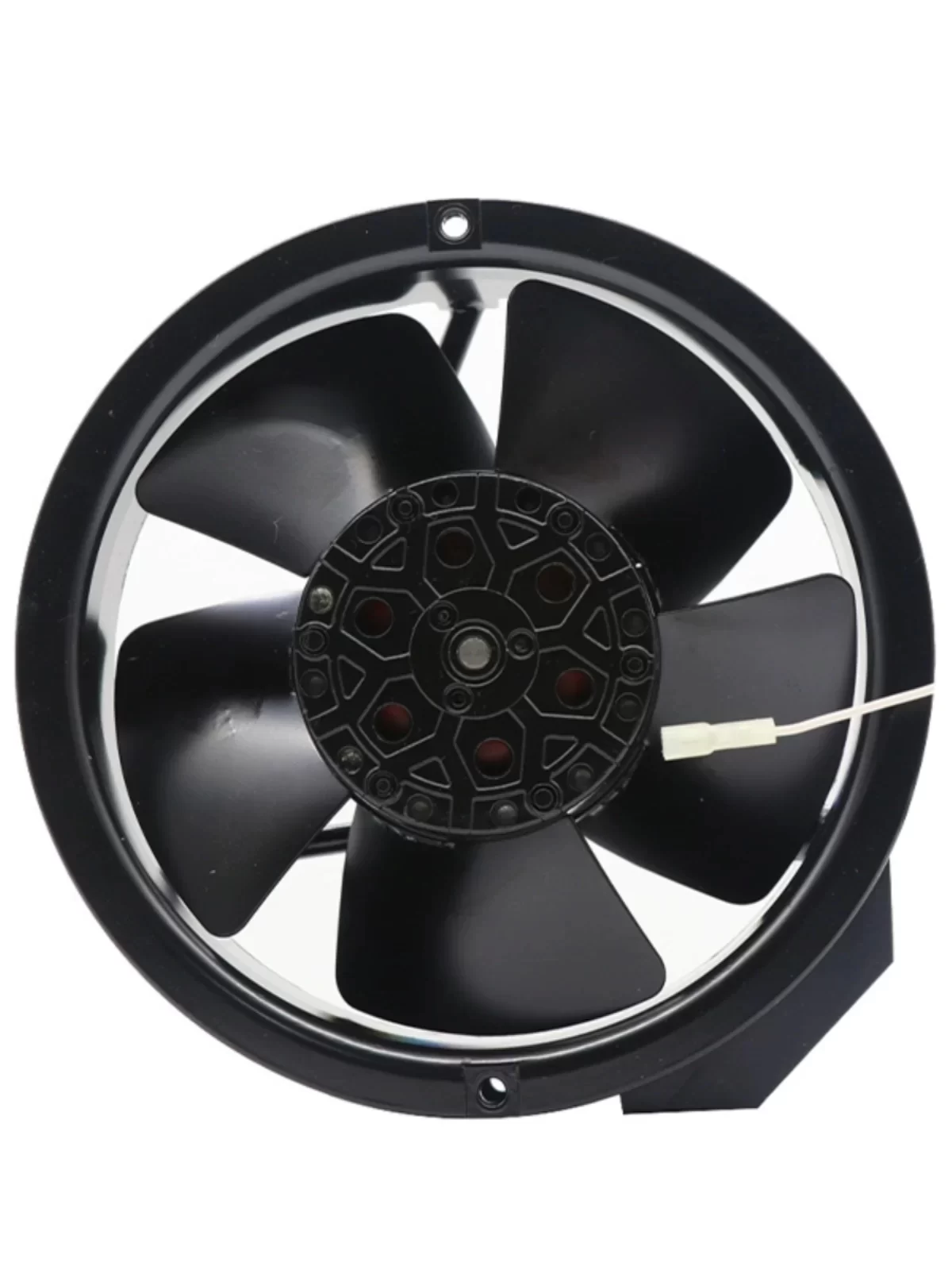

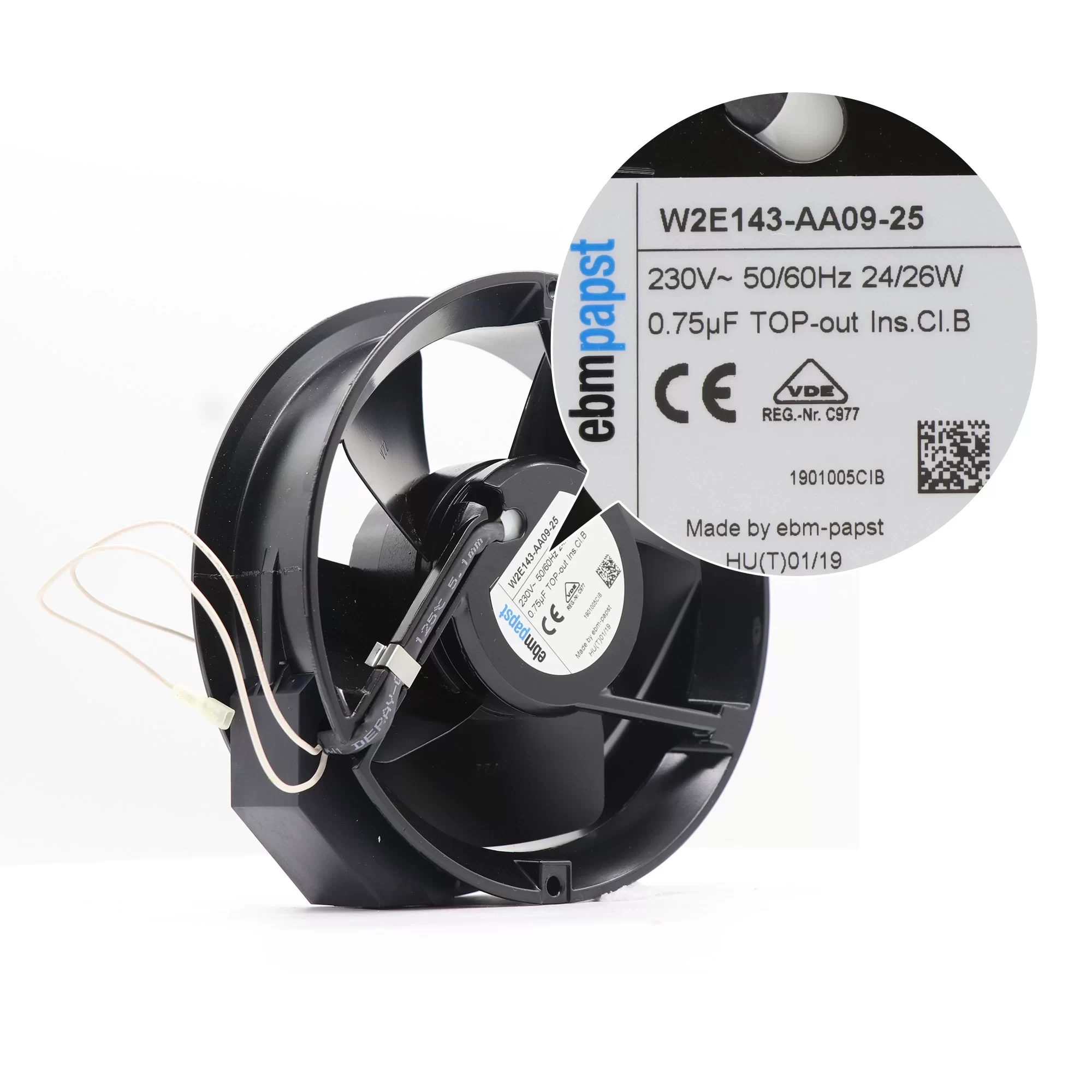

The ebmpapst W2E143-AA09-25 is an AC Axial Fan measuring 143 mm. It operates on 230VAC and is designed for dual frequency use: at 50Hz, it draws 0.12A current, consumes 24W power, and reaches 2800RPM; at 60Hz, it draws 0.11A current, consumes 26W power, and reaches 3300RPM. This fan features 5 painted black sheet steel blades and a die-cast aluminum, painted black housing. It utilizes a reliable ball bearing system and has an IP20 degree of protection. Electrical connection is via a plug, and it includes an externally wired thermal overload protector (TOP). The fan weighs 1.0kg and is suitable for ambient temperatures from -25°C up to 70°C. It conforms to EN 60335-1 and CE standards, and holds VDE approval.

W2E143-AA09-25 Fan Parameters
Model: W2E143-AA09-25
Manufacturer: ebmpapst
Type: AC Axial Fan
Motor: M2E052-BF
Phase: 1~
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Speed: 2800 RPM (50 Hz) / 3300 RPM (60 Hz)
Power Consumption: 24 W (50 Hz) / 26 W (60 Hz)
Current Draw: 0.12 A (50 Hz) / 0.11 A (60 Hz)
Capacitor: 0.75 µF
Capacitor Voltage: 400 VDB
Capacitor Standard: P0 (CE)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 70 °C
Weight: 1.0 kg
Fan Size: 143 mm
Rotor Surface: Rotor open, painted black
Blade Material: Sheet steel, painted black
Housing Material: Die-cast aluminum, painted black
Number of Blades: 5
Airflow Direction: V
Direction of Rotation: Counterclockwise, viewed toward rotor
Degree of Protection: IP20
Insulation Class: “B”
Max. Permitted Ambient Temp. for Motor (Transport/Storage): +80 °C
Min. Permitted Ambient Temp. for Motor (Transport/Storage): -40 °C
Installation Position: Any
Condensation Drainage Holes: None, open rotor
Motor Bearing: Ball bearing
Touch Current acc. IEC 60990: < 0.75 mA
Electrical Hookup: With plug
Motor Protection: Thermal Overload Protector (TOP) externally wired
Protection Class: I (with customer connection of protective earth)
Conformity with Standards: EN 60335-1; CE
Approval: VDE
Application: Suitable for general ventilation, cabinet cooling, and various applications requiring efficient airflow in compact spaces.
