W2E200-HH38-07 ebmpapst 230V AC Centrifugal Fan

Description

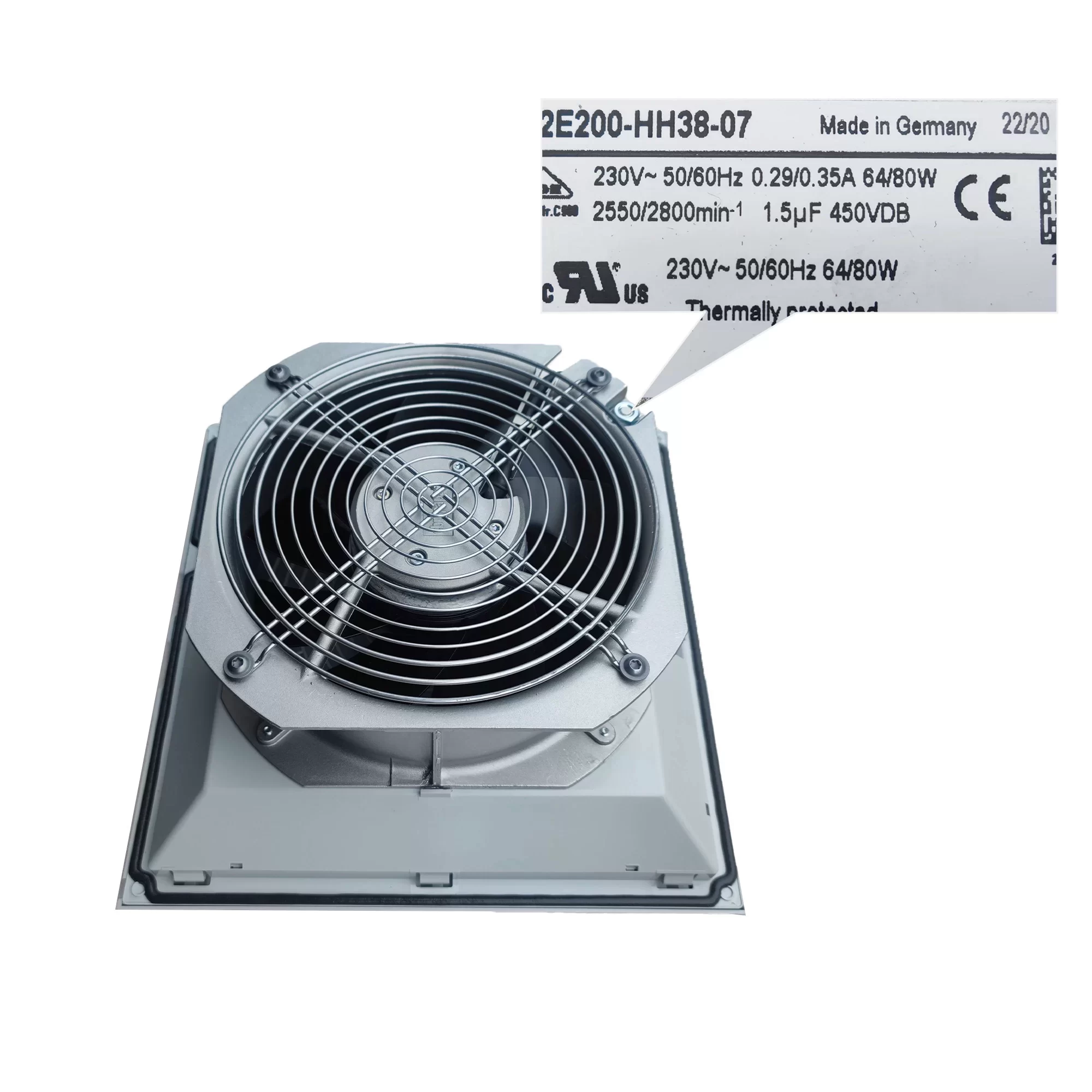

The ebmpapst W2E200-HH38-07 is an AC Centrifugal Fan measuring 220x85mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.29A of current, consumes 64W of power, and achieves a speed of 2550 RPM. When running at 60Hz, the current is 0.35A, power is 80W, and the speed reaches 2800 RPM. This fan features a durable ball bearing system and has an IP44 ingress protection level. With a die-cast aluminum housing and a PA plastic impeller, it is a reliable solution for various industrial and air handling applications.

W2E200-HH38-07 Fan Parameters
Model: W2E200-HH38-07
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Dimensions: 220 x 85 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Weight: 1.5 kg
Bearing Type: Ball Bearing
Protection Level: IP44
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: PA plastic
Operating Temperature: -25 to 70 °C
Motor Protection: Thermal overload protector internally connected

50Hz Performance
Current Draw: 0.29 A
Power Input: 64 W
Fan Speed: 2550 RPM

60Hz Performance
Current Draw: 0.35 A
Power Input: 80 W
Fan Speed: 2800 RPM

Application: Industrial and air handling applications.
