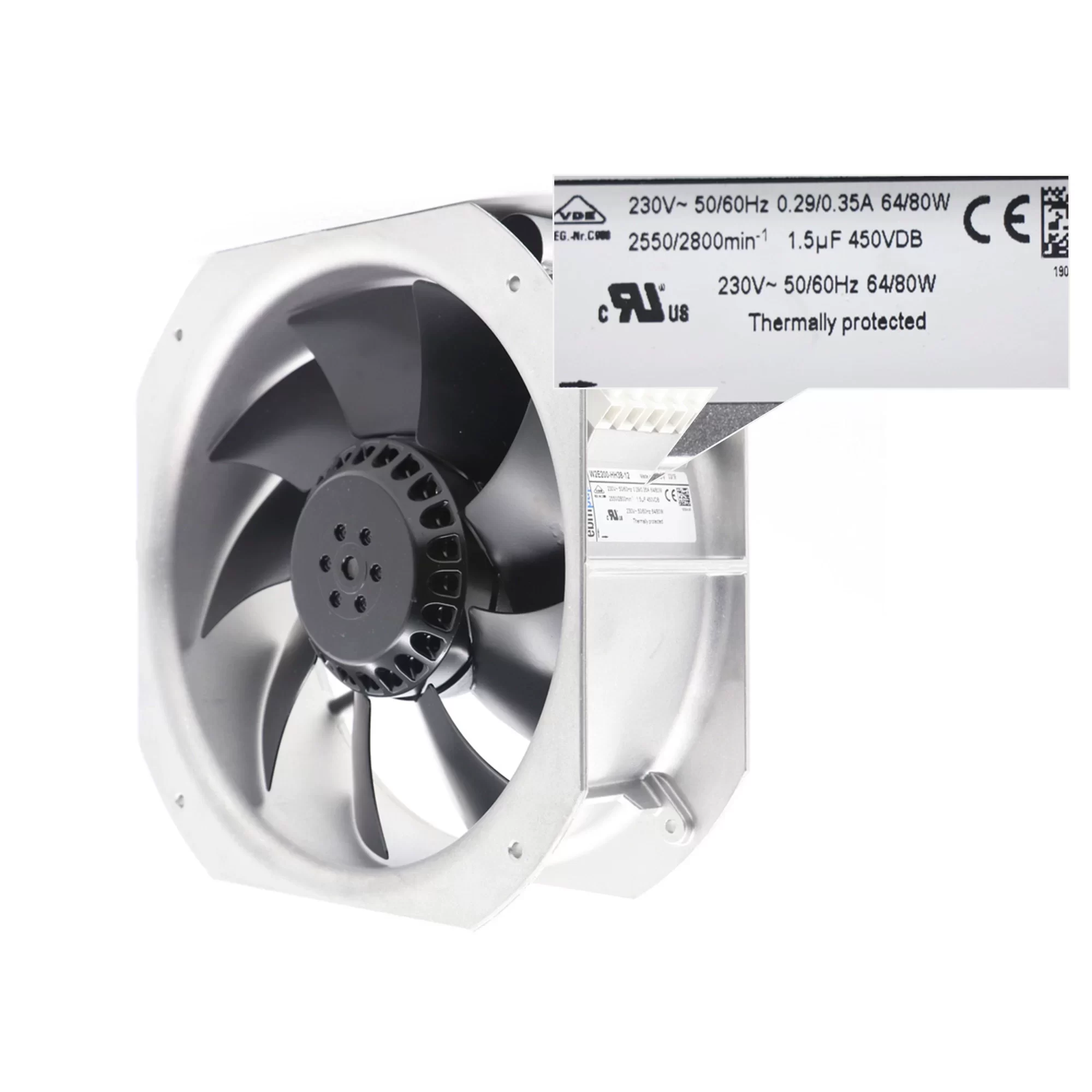

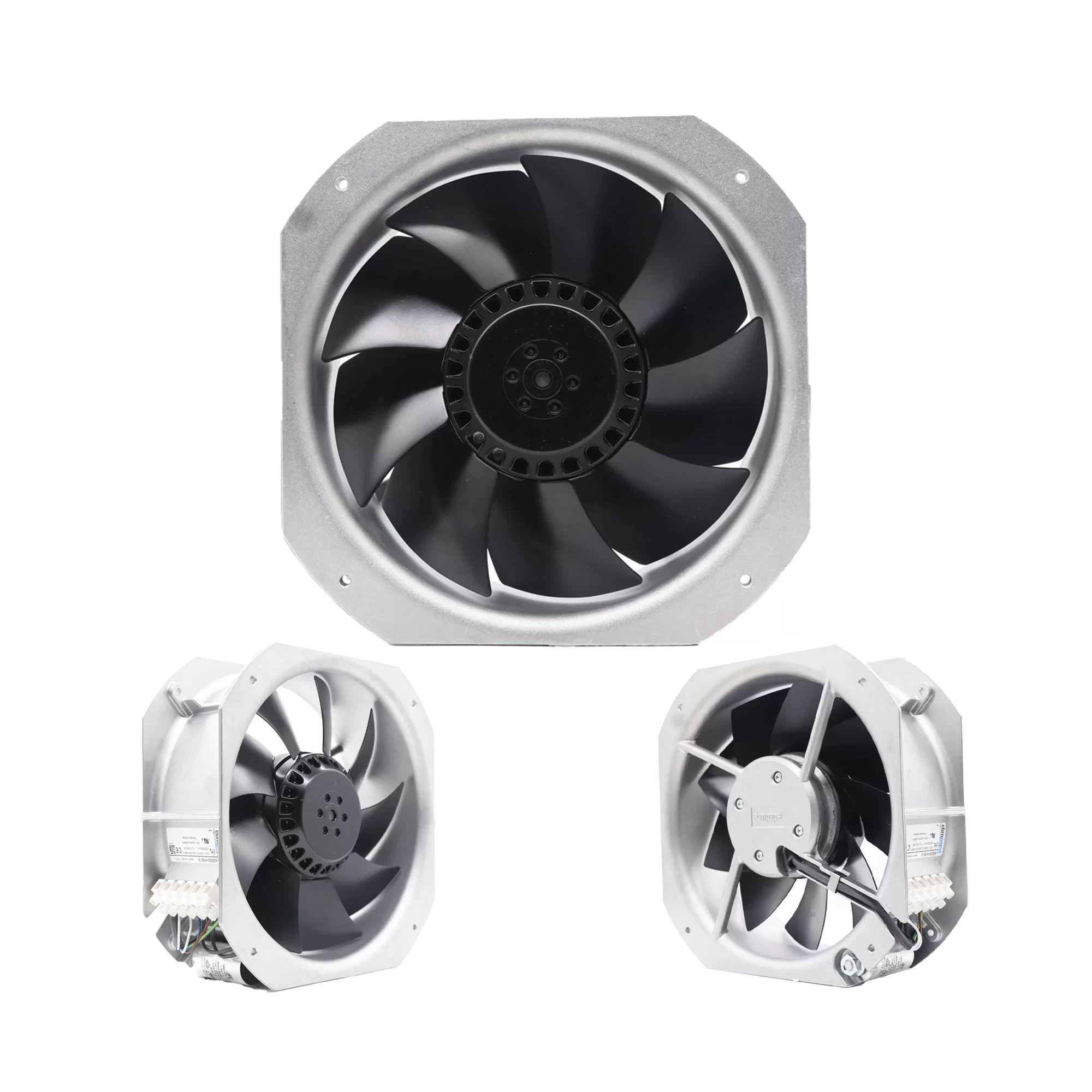

W2E200-HH38-12 ebmpapst 230V AC Axial Fan

Description

The ebmpapst W2E200-HH38-12 is an AC Axial Fan with dimensions of 220x220x60mm. It operates on 230VAC and is compatible with both 50Hz and 60Hz frequencies. At 50Hz, it draws 0.29A of current with 64W power, delivering 740m³/h airflow at 2550RPM with 63dBA noise. At 60Hz, it draws 0.35A with 80W power, delivering 810m³/h airflow at 2800RPM with 67dBA noise. This fan utilizes a robust ball bearing system, is IP44 rated, and features lead wires for termination. It operates efficiently in ambient temperatures ranging from -25 to 70°C and weighs 2.0 kg. This axial fan is suitable for various cooling applications, including industrial control systems, machinery, and general ventilation.

W2E200-HH38-12 Fan Parameters
Model: W2E200-HH38-12
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 220 x 220 x 60 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Current Draw: 0.29/0.35 A
Power Consumption: 64/80 W
Airflow: 740/810 m³/h
Speed: 2550/2800 RPM
Noise: 63/67 dBA
Bearing: Ball bearing
Termination: Lead wires
IP Rating: IP44
Weight: 2.0 kg
Operating Temperature: -25 to 70 °C
Application: Industrial control systems, machinery, general ventilation.
