Description

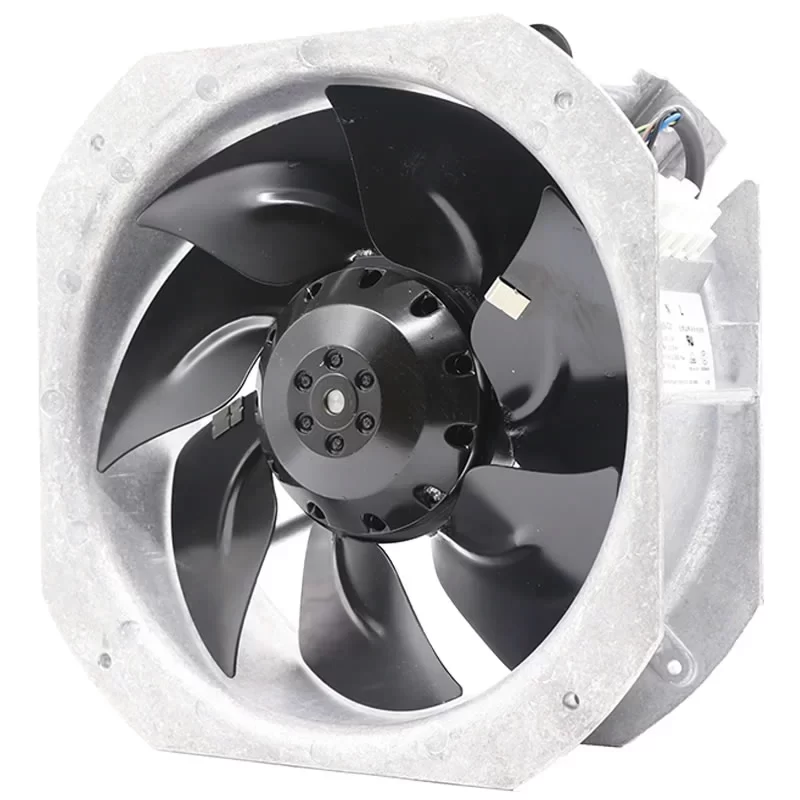

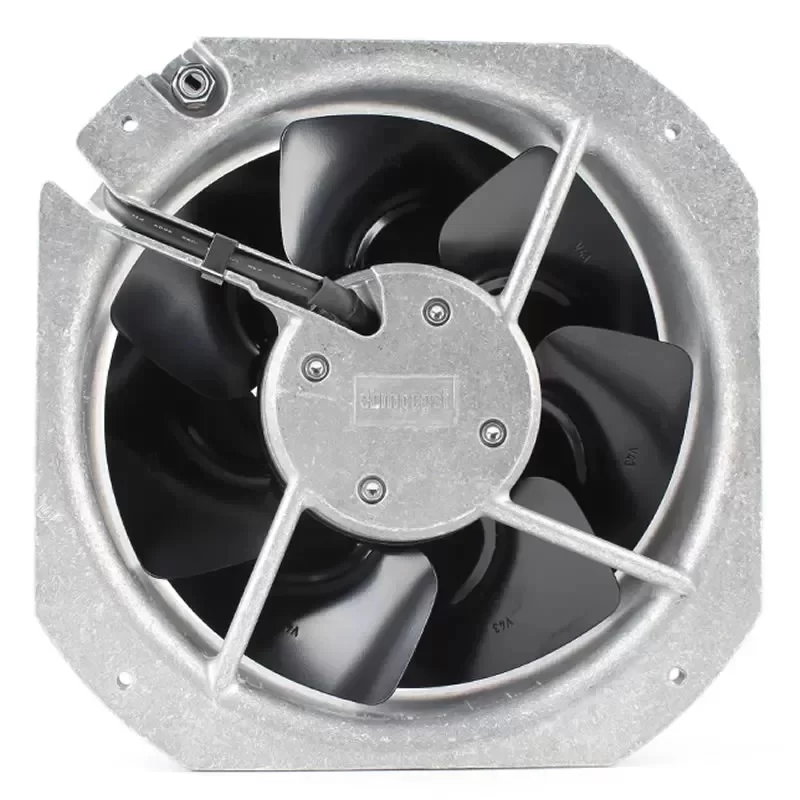

The ebmpapst W2E200-HK38-C01 is a high-performance 230VAC single-phase AC Axial Fan unit from the S-series, featuring 7 sickle-shaped blades with an Impeller Size of 200 mm and overall Dimensions of 225 x 225 x 80 mm. Specifically engineered for mission-critical cooling in industrial control cabinets and telecommunications equipment, this 225 mm unit is driven by the M2E068-BF external rotor motor with maintenance-free ball bearings and a 1.5 µF / 450 VDB (S0) capacitor connection. Operating on a 230 VAC supply, it delivers a Power Input of 64 W (50 Hz) / 80 W (60 Hz) and a Current Draw of 0.29 A / 0.35 A at a rated speed of 2550 / 2800 RPM under free air (fa) conditions. Featuring a rugged die-cast aluminum wall ring and a black coated sheet steel impeller, it ensures superior thermal management with IP44 protection and an extended service life in continuous S1 environments at the end.
W2E200-HK38-C01 Fan Parameters

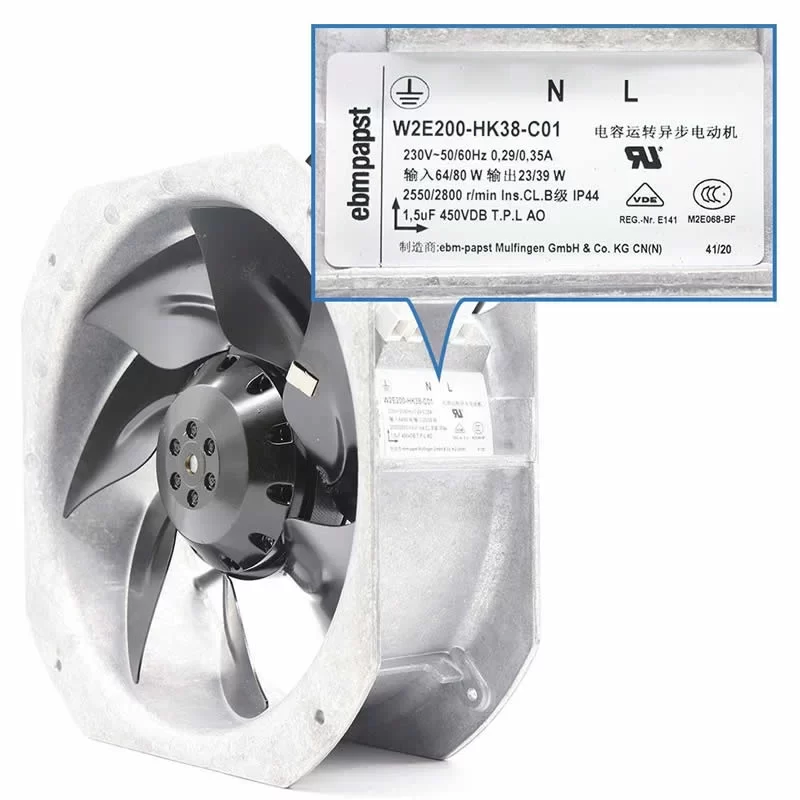

Model Number: W2E200-HK38-C01
Motor Model: M2E068-BF (Size 68)
Manufacturer: ebmpapst
Type: AC Axial Fan – Sickle-shaped blades (S series)
Impeller Size: 200 mm
Dimensions: 225 x 225 x 80 mm (with wall ring)
Weight: 2.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.29 / 0.35 A
Starting Current: 0.55 / 0.54 A
Power Input: 64 / 80 W
Rated Speed: 2550 / 2800 RPM
Max. Air Flow: 512.1 / 553.3 CFM (870.0 / 940.0 m³/h / 14.50 / 15.67 m³/min)
Max. Static Pressure: 8.16 / 9.69 mmH₂O (80.0 / 95.0 Pa / 0.32 / 0.38 inAq)
Capacitor: 1.5 µF / 450 VDB (S0 CE)
Number of Blades: 7
Impeller Material: Sheet steel, coated in black
Wall Ring Material: Die-cast aluminum
Rotor Surface: Coated in black
Direction of Airflow: “V”
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Environmental Protection Class: H0 (Dry environment)
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) internally wired
Electrical Connection: Via terminal strip
Condensation Drainage Holes: None
Installation Position: Any
Mode: S1
Protection Class: I
Max. Ambient Temperature: 55 / 65 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CSA; CCC; VDE; UL 1004-3; EAC
Application
The ebmpapst W2E200-HK38-C01 fan is the primary cooling component for industrial electrical enclosures, data center server racks, and ventilation systems requiring high-volume 230V single-phase axial airflow with a 225mm wall-ring mounted configuration.
