W2E250-CE65-01 ebmpapst 230V AC Centrifugal Fan

Description

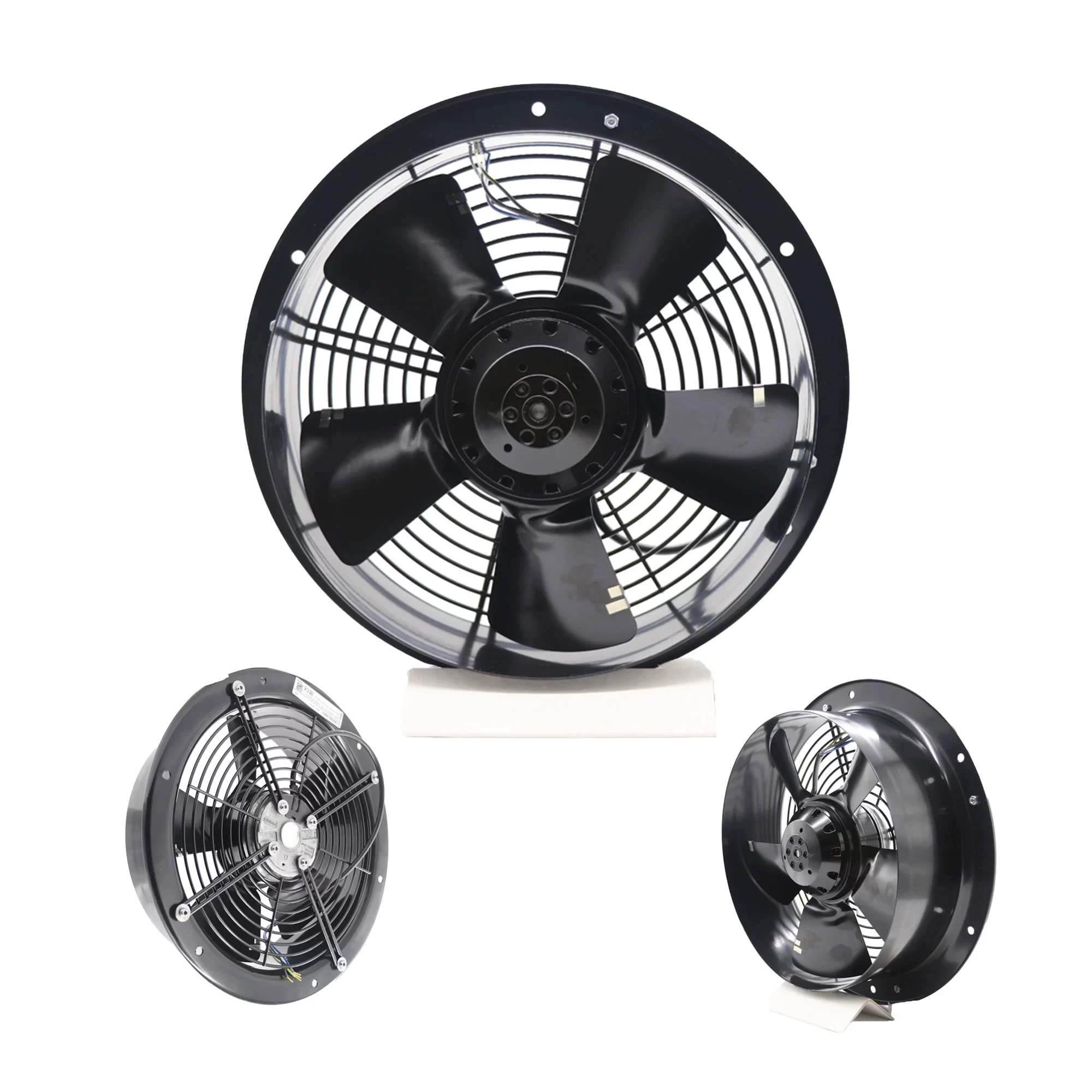

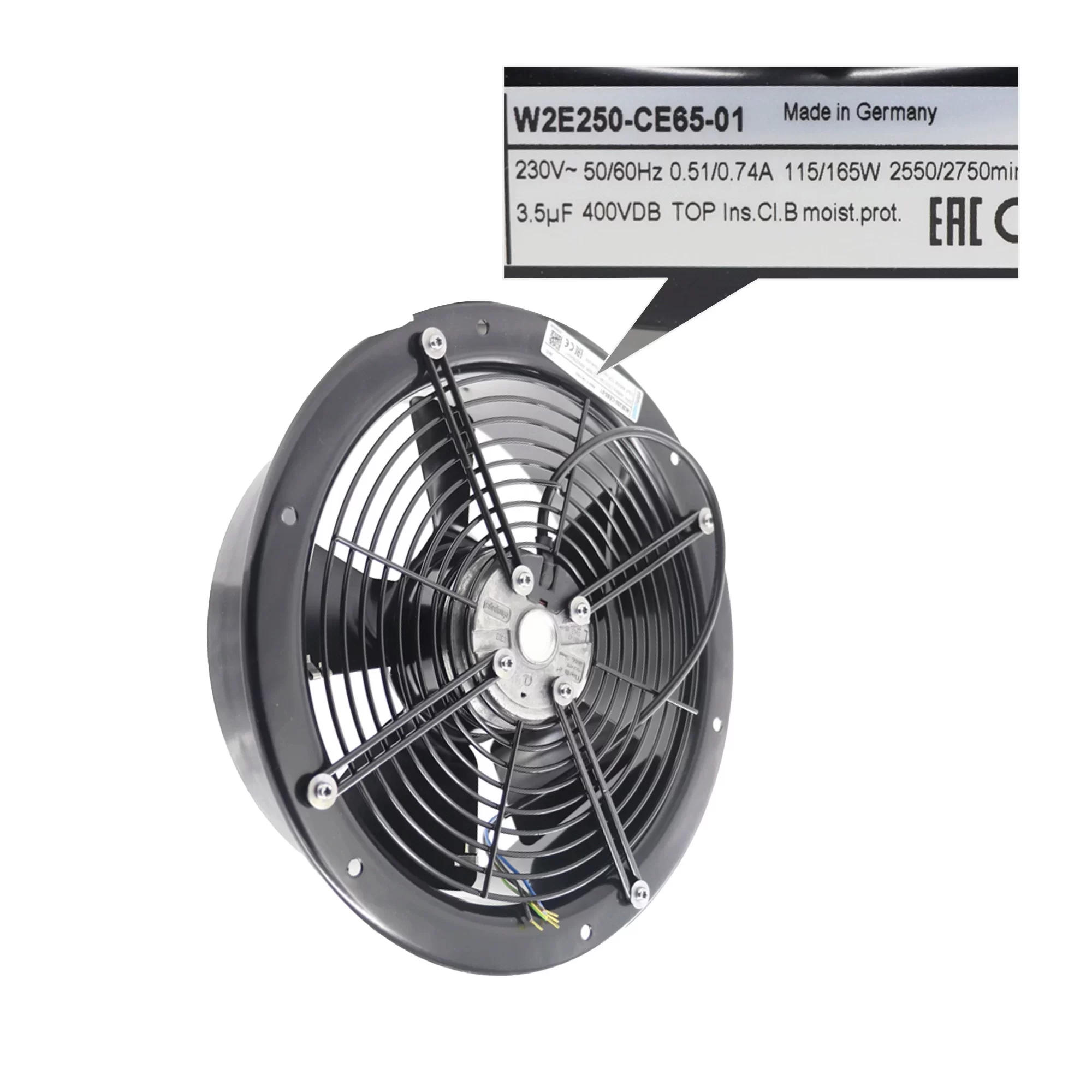

The ebmpapst W2E250-CE65-01 is a single-phase AC Centrifugal Fan with a 250mm diameter, driven by an M2E068-DF motor. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.51A of current, consumes 115W of power, and achieves a speed of 2550 RPM. At 60Hz, the current is 0.74A, power is 165W, and the speed reaches 2750 RPM. The fan features a durable ball bearing system, an impeller made of sheet steel, and a housing of die-cast aluminum. It has a high IP44 ingress protection level and holds CCC and EAC approvals.

W2E250-CE65-01 Fan Parameters
Model: W2E250-CE65-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Motor: M2E068-DF
Dimensions: 250 mm diameter
Weight: 3.4 kg
Number of Blades: 5
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Motor Bearing: Ball bearing
Insulation Class: “B”
Moisture Protection/Environmental: F+
Protection Class: I (with customer connection of protective earth)
Degree of Protection: IP44, installation- and position-dependent
Motor Protection: Thermal overload protector (TOP) internally connected
Touch Current: < 0.75 mA
Rotor Surface: Painted black
Impeller Material: Sheet steel, pre-galvanized and coated with black plastic
Fan Housing Material: Die-cast aluminum, painted black
Guard Grille Material: Steel, phosphated and coated with black plastic
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature (50Hz): 50 °C
Max. Ambient Temperature (60Hz): 55 °C
Min. Permitted Ambient Temp for Motor (transport/storage): -40 °C
Max. Permitted Ambient Temp for Motor (transport/storage): +80 °C
Conformity with Standards: EN 60335-1; CE
Approval: CCC, EAC

50Hz Performance
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Speed: 2550 min-1
Power Consumption: 115 W
Current Draw: 0.51 A
Capacitor Voltage: 400 VDB
Capacitor: 4 µF
Max. Back Pressure: 150 Pa
Starting Current: 0.9 A

60Hz Performance
Nominal Voltage: 230 VAC
Frequency: 60 Hz
Speed: 2750 min-1
Power Consumption: 165 W
Current Draw: 0.74 A
Capacitor Voltage: 400 VDB
Capacitor: 4 µF
Max. Back Pressure: 150 Pa
Starting Current: 0.9 A
Application: Air handling and ventilation applications.
